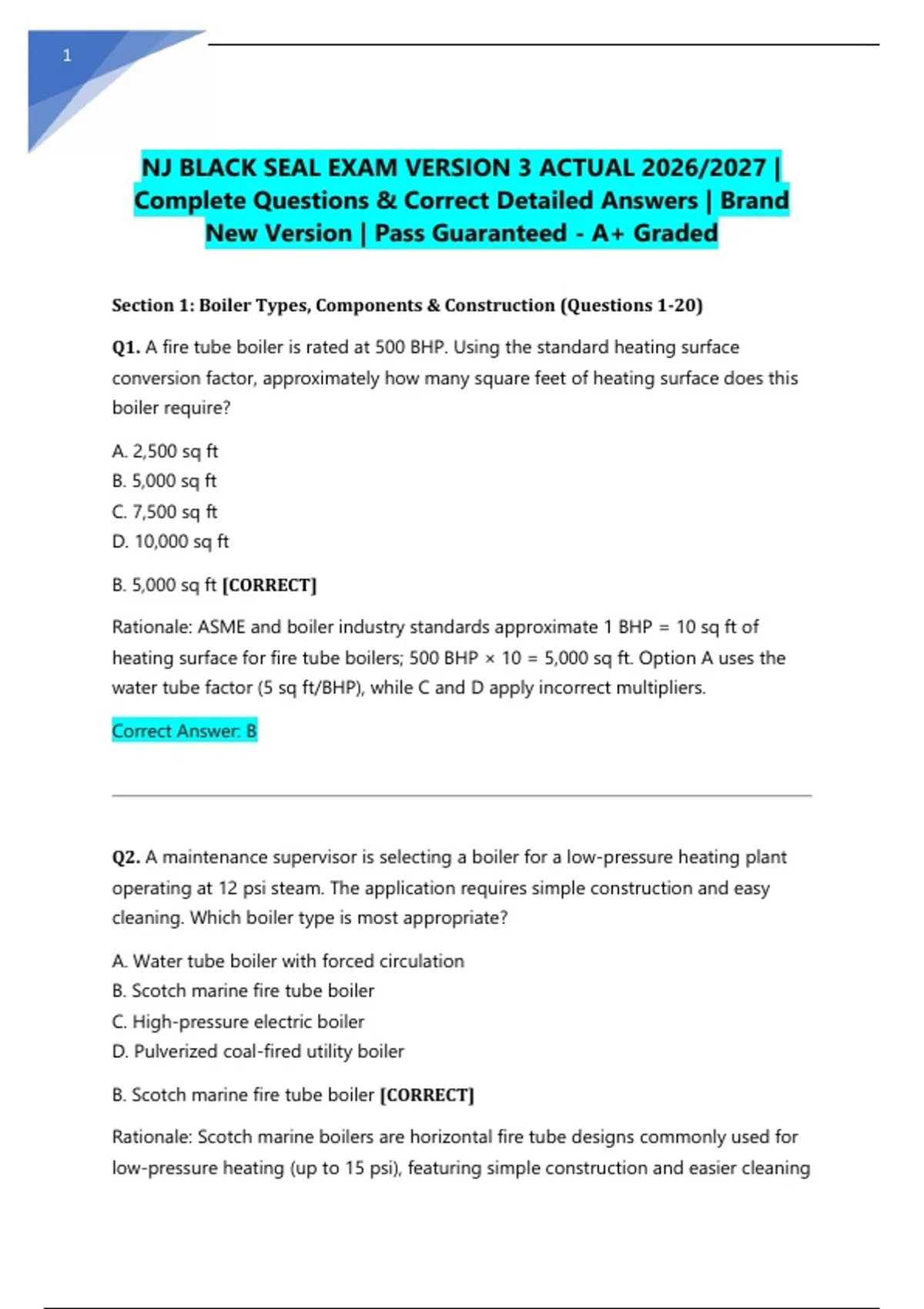

NJ BLACK SEAL EXAM VERSION 3 ACTUAL 2026/2027 |
Complete Questions & Correct Detailed Answers | Brand
New Version | Pass Guaranteed - A+ Graded
Section 1: Boiler Types, Components & Construction (Questions 1-20)
Q1. A fire tube boiler is rated at 500 BHP. Using the standard heating surface
conversion factor, approximately how many square feet of heating surface does this
boiler require?
A. 2,500 sq ft
B. 5,000 sq ft
C. 7,500 sq ft
D. 10,000 sq ft
B. 5,000 sq ft [CORRECT]
Rationale: ASME and boiler industry standards approximate 1 BHP = 10 sq ft of
heating surface for fire tube boilers; 500 BHP × 10 = 5,000 sq ft. Option A uses the
water tube factor (5 sq ft/BHP), while C and D apply incorrect multipliers.
Correct Answer: B
Q2. A maintenance supervisor is selecting a boiler for a low-pressure heating plant
operating at 12 psi steam. The application requires simple construction and easy
cleaning. Which boiler type is most appropriate?
A. Water tube boiler with forced circulation
B. Scotch marine fire tube boiler
C. High-pressure electric boiler
D. Pulverized coal-fired utility boiler
B. Scotch marine fire tube boiler [CORRECT]
Rationale: Scotch marine boilers are horizontal fire tube designs commonly used for
low-pressure heating (up to 15 psi), featuring simple construction and easier cleaning
,2
compared to water tube designs. Option A is for high pressure, C is not typical for
this low-pressure heating context, and D is for utility power generation.
Correct Answer: B
Q3. An engineer needs a boiler capable of operating at 2,000 psi for a power
generation facility. Which design characteristic is essential?
A. Fire tubes with natural circulation
B. Water inside tubes with external hot gases
C. Horizontal shell with internal furnace
D. Cast iron sectional construction
B. Water inside tubes with external hot gases [CORRECT]
Rationale: Water tube boilers contain water inside tubes with hot gases outside,
enabling high-pressure operation (up to 5,000+ psi) and rapid steam generation
required for power plants. Fire tube designs (A, C) are limited to lower pressures, and
cast iron (D) is for low-pressure heating only.
Correct Answer: B
Q4. A facility has limited headroom and requires a compact boiler for 15 psi steam
heating. Which boiler is commonly used in this application?
A. Vertical water tube boiler
B. Scotch marine horizontal fire tube boiler
C. High pressure watertube boiler
D. Electric high-voltage boiler
B. Scotch marine horizontal fire tube boiler [CORRECT]
Rationale: Scotch marine boilers are compact, horizontal fire tube boilers widely used
in low-pressure steam and hot water heating applications. Option A is less common
for this service, C is for high pressure power generation, and D is typically selected
for emissions control, not compactness.
,3
Correct Answer: B
Q5. A building owner needs a boiler for hot water heating at 180°F with minimal
maintenance. Which type is most suitable?
A. Water tube power boiler
B. Cast iron sectional boiler
C. Supercritical steam generator
D. Forced draft oil boiler
B. Cast iron sectional boiler [CORRECT]
Rationale: Cast iron sectional boilers are specifically designed for low-pressure hot
water heating applications (up to 160 psi hot water) and are known for minimal
maintenance requirements. Water tube (A) and supercritical (C) designs are for power
generation, and D describes a burner type, not a boiler classification.
Correct Answer: B
Q6. A hospital must eliminate all stack emissions. An electric boiler is proposed. What
is the primary operational disadvantage?
A. Inability to produce saturated steam
B. High operating cost due to electricity rates
C. Requirement for continuous combustion air supply
D. Mandatory monthly hydrostatic testing
B. High operating cost due to electricity rates [CORRECT]
Rationale: Electric boilers produce no combustion emissions but typically have higher
operating costs per BTU compared to fossil fuel boilers due to electricity rates.
Option A is incorrect because electric boilers do produce steam; C is incorrect
because no combustion occurs; D is false as hydrostatic tests are every 5 years per NJ
regulations.
Correct Answer: B
, 4
Q7. During a boiler inspection, the inspector examines the shell, tubes, and heads.
What is the primary concern regarding these pressure boundary components?
A. Color coding compliance
B. Integrity to contain water and steam under pressure
C. Fuel storage capacity
D. Electrical insulation
B. Integrity to contain water and steam under pressure [CORRECT]
Rationale: The shell, tubes, and heads form the pressure vessel boundary; their
structural integrity is essential to safely contain water and steam at operating
pressure. Options A, C, and D are unrelated to pressure vessel function.
Correct Answer: B
Q8. In a fire tube boiler, hot combustion gases flow through the tubes. What is the
primary heat transfer mechanism?
A. Conduction through tube walls to surrounding water
B. Radiation only to the shell
C. Convection within the combustion chamber
D. Direct contact with the burner
A. Conduction through tube walls to surrounding water [CORRECT]
Rationale: Heat from combustion gases transfers through the tube walls by
conduction to the water surrounding the tubes. While radiation and convection
occur, the primary mechanism across the tube wall is conduction. Options B, C, and D
describe incomplete or incorrect mechanisms.
Correct Answer: A
Q9. The heads on a horizontal fire tube boiler serve what critical function?
