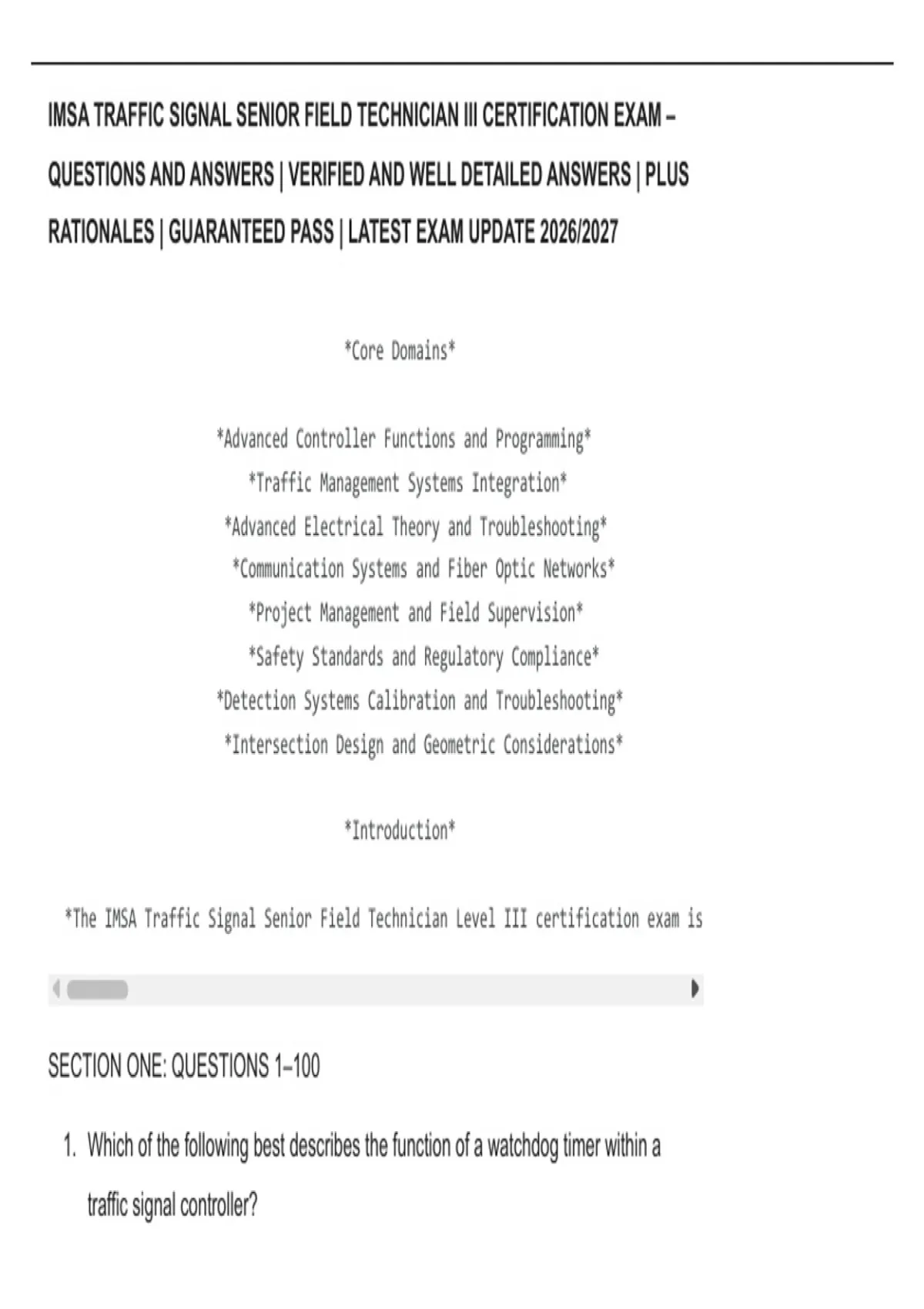

IMSA TRAFFIC SIGNAL SENIOR FIELD TECHNICIAN III CERTIFICATION EXAM –
QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED ANSWERS | PLUS
RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE 2026/2027
*Core Domains*
*Advanced Controller Functions and Programming*
*Traffic Management Systems Integration*
*Advanced Electrical Theory and Troubleshooting*
*Communication Systems and Fiber Optic Networks*
*Project Management and Field Supervision*
*Safety Standards and Regulatory Compliance*
*Detection Systems Calibration and Troubleshooting*
*Intersection Design and Geometric Considerations*
*Introduction*
*The IMSA Traffic Signal Senior Field Technician Level III certification exam is
SECTION ONE: QUESTIONS 1–100
1. Which of the following best describes the function of a watchdog timer within a
traffic signal controller?
,A. To monitor the voltage levels of the load switches
B. To ensure the controller software is cycling and reset the unit if a hang occurs
C. To record the duration of the green intervals for data logging
D. To synchronize the internal clock with a master GPS reference
🟢 B. To ensure the controller software is cycling and reset the unit if a hang occurs
🔴 Explanation: A watchdog timer is a safety mechanism that monitors the execution of
the controller software. If the software stops cycling properly (hangs), the timer will expire
and force a reset to prevent a "frozen" signal.
2. When terminating a fiber optic cable, which connector type is most commonly used
in modern traffic signal cabinets for its "push-pull" mechanism?
A. ST
B. BNC
C. SC
D. F-Type
🟢 C. SC
🔴 Explanation: SC (Subscriber Connector) connectors are widely used in traffic
applications due to their push-pull locking mechanism, which provides reliable
connections in high-vibration environments.
, 3. According to the MUTCD, what is the minimum height of a signal head located over
a roadway from the bottom of the housing to the pavement?
A. 15 feet
B. 16 feet
C. 17 feet
D. 19 feet
🟢 C. 17 feet
🔴 Explanation: The MUTCD specifies that the bottom of the signal housing of a signal
face that is suspended over a roadway shall be at least 17 feet above the pavement.
4. A Senior Technician is supervising a cabinet replacement. What is the first safety
step that must be taken before removing the old cabinet?
A. Disconnect the field wires
B. Place the intersection into flash via the police panel
C. Notify the TMC and set up temporary traffic control
D. Remove the logic pre-emptor
🟢 C. Notify the TMC and set up temporary traffic control
, 🔴 Explanation: Safety and liability dictate that proper temporary traffic control (TTC)
must be established and the Traffic Management Center notified before any work begins
that disrupts normal signal operation.
5. In an NEMA TS-2 Type 1 cabinet, how is communication handled between the
controller and the Malfunction Management Unit (MMU)?
A. Via a standard A, B, and C harness
B. Through a dedicated SDLC (Synchronous Data Link Control) bus
C. Using discrete 24V DC wiring
D. Through the power distribution assembly (PDA)
🟢 B. Through a dedicated SDLC (Synchronous Data Link Control) bus
🔴 Explanation: NEMA TS-2 Type 1 cabinets utilize an SDLC bus for high-speed serial
communication between the controller, MMU, and BIUs, reducing the amount of discrete
wiring.
6. What is the primary purpose of a load switch in a traffic signal cabinet?
A. To regulate the incoming utility voltage
B. To switch the 120V AC to the signal heads based on low-voltage DC inputs
