MERGED QUESTION PAPER AND MARK SCHEME 2025 Pearson Edexcel GCSEIn Physics (1PH0/2H) Paper 2H

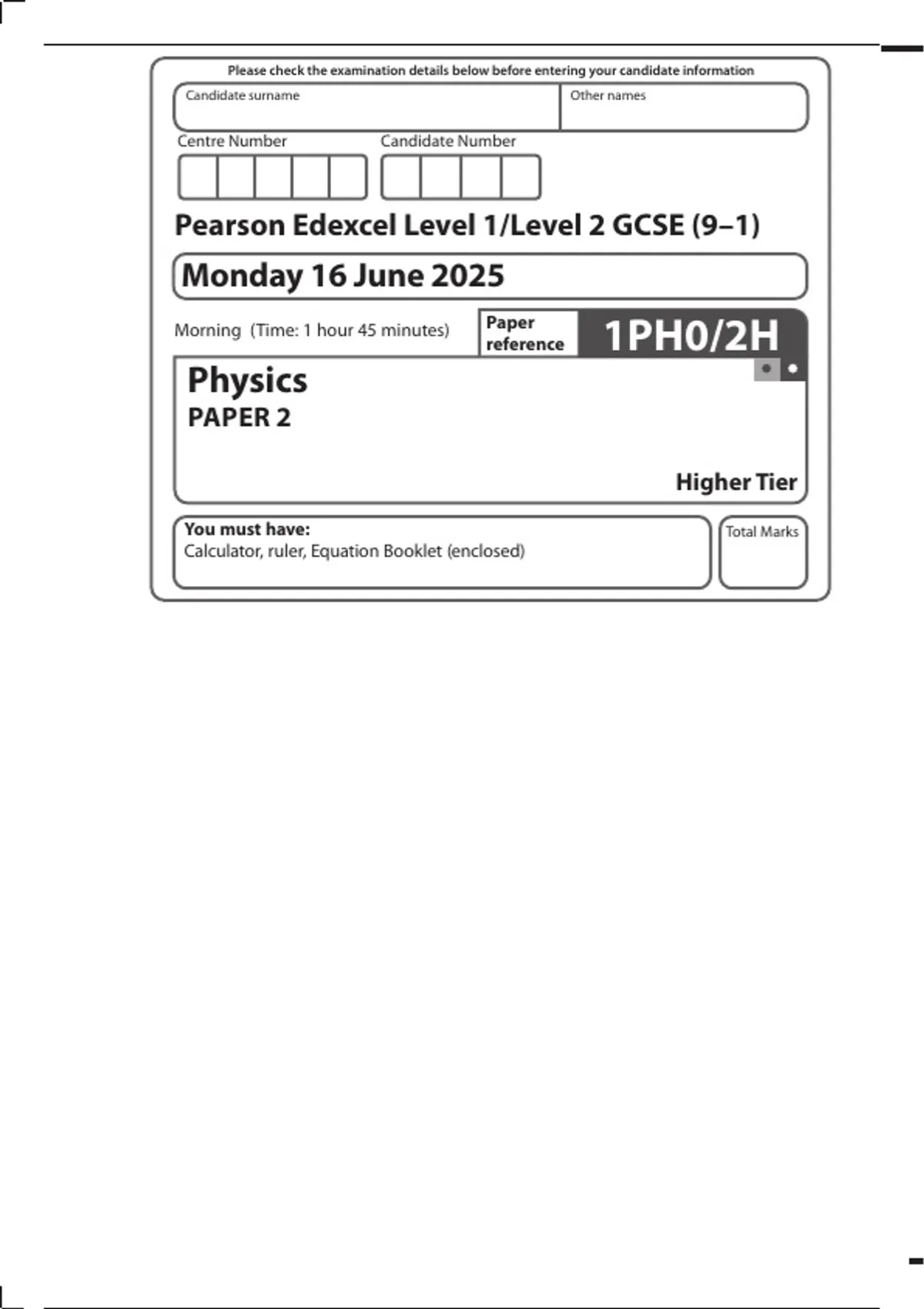

Please check the examination details below before entering your candidate information
Candidate surname Other names


Centre Number Candidate Number




Pearson Edexcel Level 1/Level 2 GCSE (9–1)
Monday 16 June 2025
Morning (Time: 1 hour 45 minutes) Paper
reference 1PH0/2H
Physics  


PAPER 2

 Higher Tier
You must have: Total Marks
Calculator, ruler, Equation Booklet (enclosed)

, Answer ALL questions. Write your answers in the spaces provided.
Some questions must be answered with a cross in one of the four boxes . If you change your




DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
mind about an answer, put a line through the box and then mark your new answer with
a cross .
1 Figure 1 shows a pool full of water.




(Source: © AnaKulagina/Shutterstock)

Figure 1
(a) (i) The pressure on the ground due to the water in the pool is 3500 Pa.
The density of water is 103 kg / m3.
The gravitational field strength, g, = 10 N / kg.
Calculate the depth of the water in the pool.
(2)




depth = ................................................ . . . . . . . . . . . . . . m
(ii) Figure 2 shows part of the side and base of the pool.

side
base

X

Figure 2
The water in the pool causes a force on the base of the pool.
Draw an arrow on Figure 2 to show the direction of this force at point X.
(1)




2
*P78733RA0240* 

, (b) A smaller pool has the same depth of water but has only half the area in contact
with the ground.
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA




The pressure on the ground underneath the smaller pool is
(1)
A twice the pressure underneath the larger pool

B ten times the pressure underneath the larger pool

C half the pressure underneath the larger pool

D the same as the pressure underneath the larger pool

(c) A small hole is made in the base of the large pool shown in Figure 1.
The area of the hole is 1.5 mm2. The pressure at the base of the pool due to the
water is 3500 Pa.
Calculate the force on the ground directly below the hole due to the water in
the pool.
Use the equation

F
P=
A
(2)




force = ............................................... . . . . . . . . . . . . . . . N
(d) A bigger hole is made in the base of the same pool.
Compare the force on the ground directly below the bigger hole with the force on
the ground directly below the original hole.
(1)

. . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ............................................................................................................................................ ................ . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . . . .. .. .. .. .. .. .. .. .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ............................................................................................................................................ ................ . . . . . . . . . . . . . . . . . . . .


(Total for Question 1 = 7 marks)




3
 *P78733RA0340* Turn over

, 2 (a) A student places a trolley at the top of a runway, as shown in Figure 3.

trolley




DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
light gate
timer
runway 00:00:00




Figure 3

The student had to lift the trolley through a height of 26 cm to put it at the top of
the runway.

The gravitational potential energy, ΔGPE, of the trolley increases by 4.1 J when
lifted to the top of the runway.
The gravitational field strength, g, = 10 N / kg.
(i) Show that the mass of the trolley is about 1.6 kg.
Use the equation

ΔGPE
m
g
Δh
(2)




4



*P78733RA0440* 
