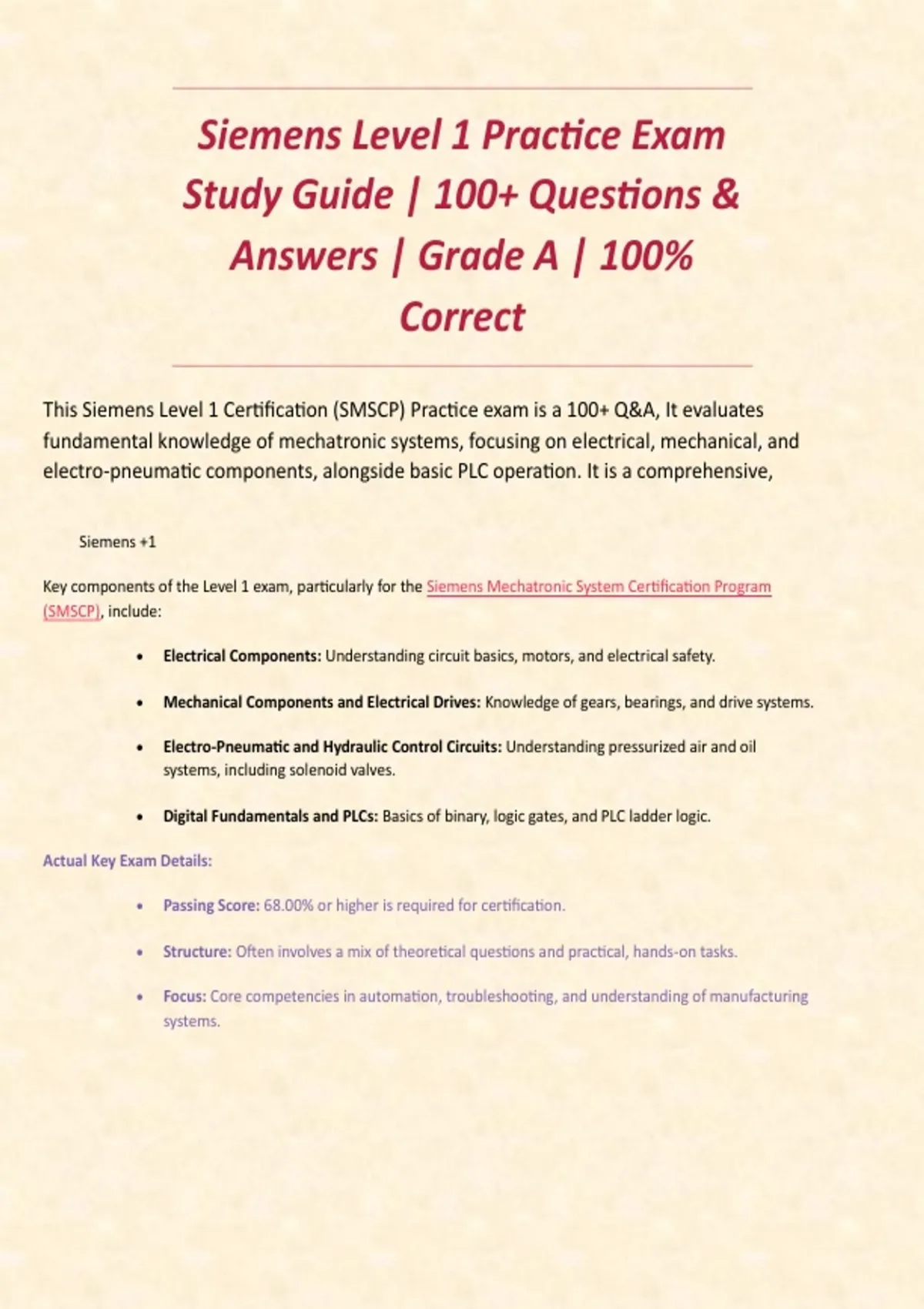

Siemens Level 1 Practice Exam
Study Guide | 100+ Questions &
Answers | Grade A | 100%
Correct
This Siemens Level 1 Certification (SMSCP) Practice exam is a 100+ Q&A, It evaluates
fundamental knowledge of mechatronic systems, focusing on electrical, mechanical, and
electro-pneumatic components, alongside basic PLC operation. It is a comprehensive,
Siemens +1
Key components of the Level 1 exam, particularly for the Siemens Mechatronic System Certification Program
(SMSCP), include:
• Electrical Components: Understanding circuit basics, motors, and electrical safety.
• Mechanical Components and Electrical Drives: Knowledge of gears, bearings, and drive systems.
• Electro-Pneumatic and Hydraulic Control Circuits: Understanding pressurized air and oil
systems, including solenoid valves.
• Digital Fundamentals and PLCs: Basics of binary, logic gates, and PLC ladder logic.
Actual Key Exam Details:
• Passing Score: 68.00% or higher is required for certification.
• Structure: Often involves a mix of theoretical questions and practical, hands-on tasks.
• Focus: Core competencies in automation, troubleshooting, and understanding of manufacturing
systems.
,Terms in this set (104)
Cylinder 1A extends a little and then For the pneumatic circuit diagram shown below, immediately
retracts again. what happens, when valve 1V is briefly actuated?
Cylinder 1A extends a little and then stops in this position.
Cylinder 1A extends and stops in the forward end position.
Cylinder 1A extends and retracts so long as valve 1V1 is
not briefly actuated.
Cylinder 1A extends out to the forward end position and
then immediately retracts again. Cylinder 1A extends a
little and then immediately retracts again.
Vacuum Generator Which component is represented symbolically?
2/2- way valve
3/2- way valve
Shuttle Valve
Vacuum Generator
Quick exhaust valve
,Adjustable one-way flow control In the pneumatic controlled system shown below, valve 1V2. the
cylinder does not retract. Given the following
measurements, what could be the possible cause of the
malfunction?
Cylinder 1A.
Valve 1V1.
Solenoid coil 1Y2.
Adjustable one-way flow control valve 1V2.
Adjustable one-way flow control valve 1V3.
pe = 5.5 bar As shown below, the force required to advance the cylinder should be 600 N. During the
cylinder extension, the back pressure of the adjustable
oneway flow control valve is 1.5 bar. What is the applied
air pressure pe in bar?
pe = 3.0 bar pe
= 5.5 bar pe =
6.0 bar pe = 6.5
bar pe = 12.0
bar
,
