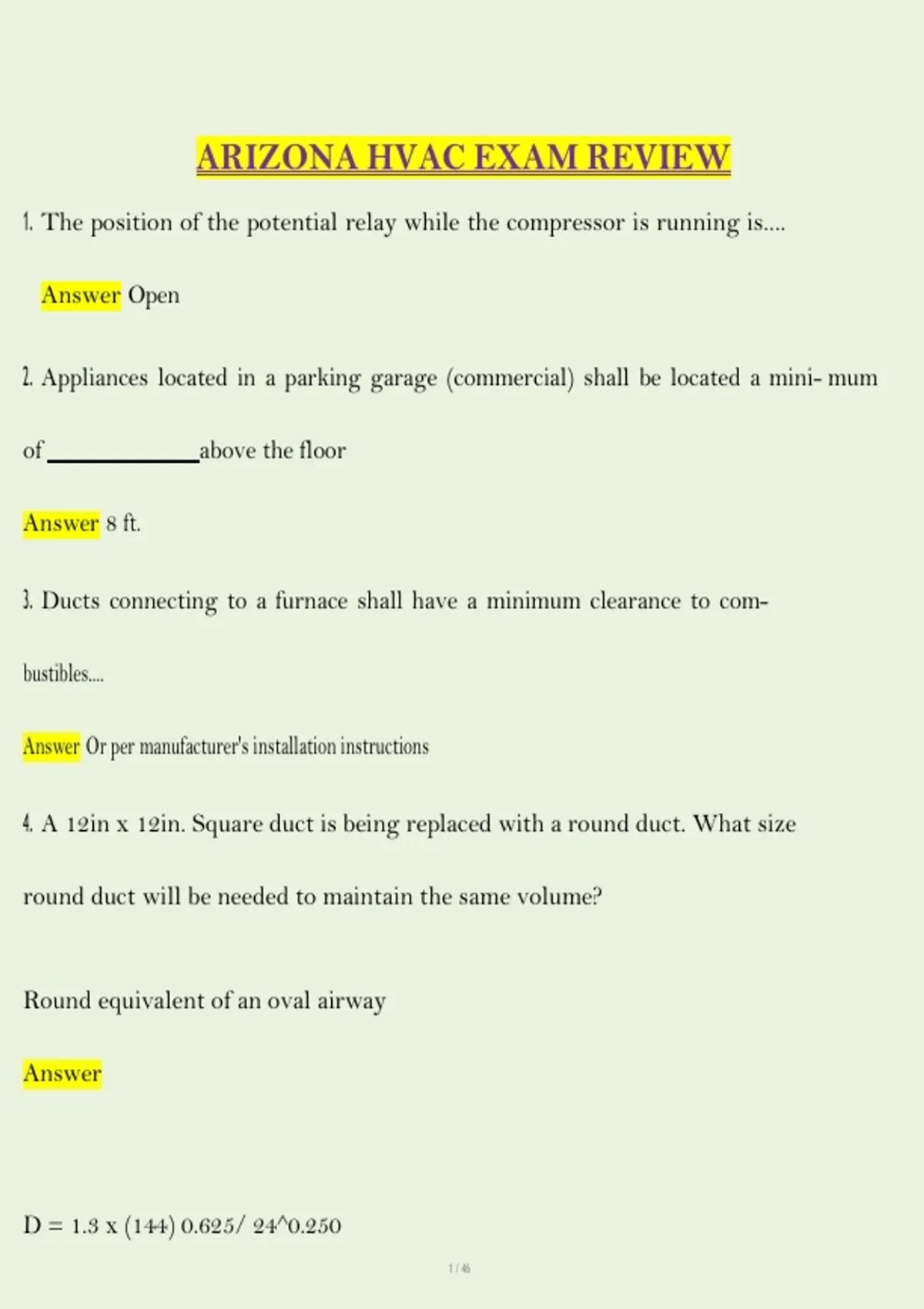

ARIZONA HVAC EXAM REVIEW
1. The position of the potential relay while the compressor is running is....
Answer Open
2. Appliances located in a parking garage (commercial) shall be located a mini- mum
of above the floor
Answer 8 ft.
3. Ducts connecting to a furnace shall have a minimum clearance to com-
bustibles....
Answer Or per manufacturer's installation instructions
4. A 12in x 12in. Square duct is being replaced with a round duct. What size
round duct will be needed to maintain the same volume?
Round equivalent of an oval airway
Answer
D = 1.3 x (144) 0.625/ 24^0.250
,1.3 x 10.09 =
13.11 in
5. What controls the oil pump on an oil fired hydronic boiler?
Answer Thermostat
6. A secondary drain system shall do all of the following except
Answer Not go over the main structure entrance
7. An air handler located inside controls a condenser located outside, what is not
permitted?
Answer Overhang roof under 8ft.
8. What is a result of a steambound boiler?
Answer Underfilled Boiler
9. What is the purpose of a bleed-off device in a cooling tower?
Answer To keep the evaportating water system clean
10. What is the maximum bend arc for steel gas piping
, Answer 90 degrees
11. What is the purpose of an evaporator pressure regulator?
Answer Maintains a set minimum Pressure
12. What type of instrument is used to measure humidity
Answer Hygrometer
13. If an existing wall is rated at R-8 and new insulation is added of R-15, what is the
new U-Valve?
U-Value = 1/(sum of all R-Value)
Answer 0.4
14. What is the principle difference between a heat pump and a unit used for cooling
only?
Answer Reversing Valve
15. Which device prevents oil slugging?
Answer Crankcase Heater
, 16. What device is used to prevent slugging in a heat pump?
Answer Accumulators
17. When can a duct penetrate a fire wall?
Answer When protected with a listed fire damper
18. How often should the low water fuel shutoff shutoff should be tested using the
blowdown method
Answer Daily
19. What maximum temperature may a refrigerant cylinder be safely heated to in
order to speed up the charging process?
Answer 120 *F
20. What limits the temperature of a burner?
Answer High Limit Control
21. The highest temperature at which a substance may be liquefied
Answer Critical Temper- ature
22. What setting should the fuel gas valve be set for the boiler?
