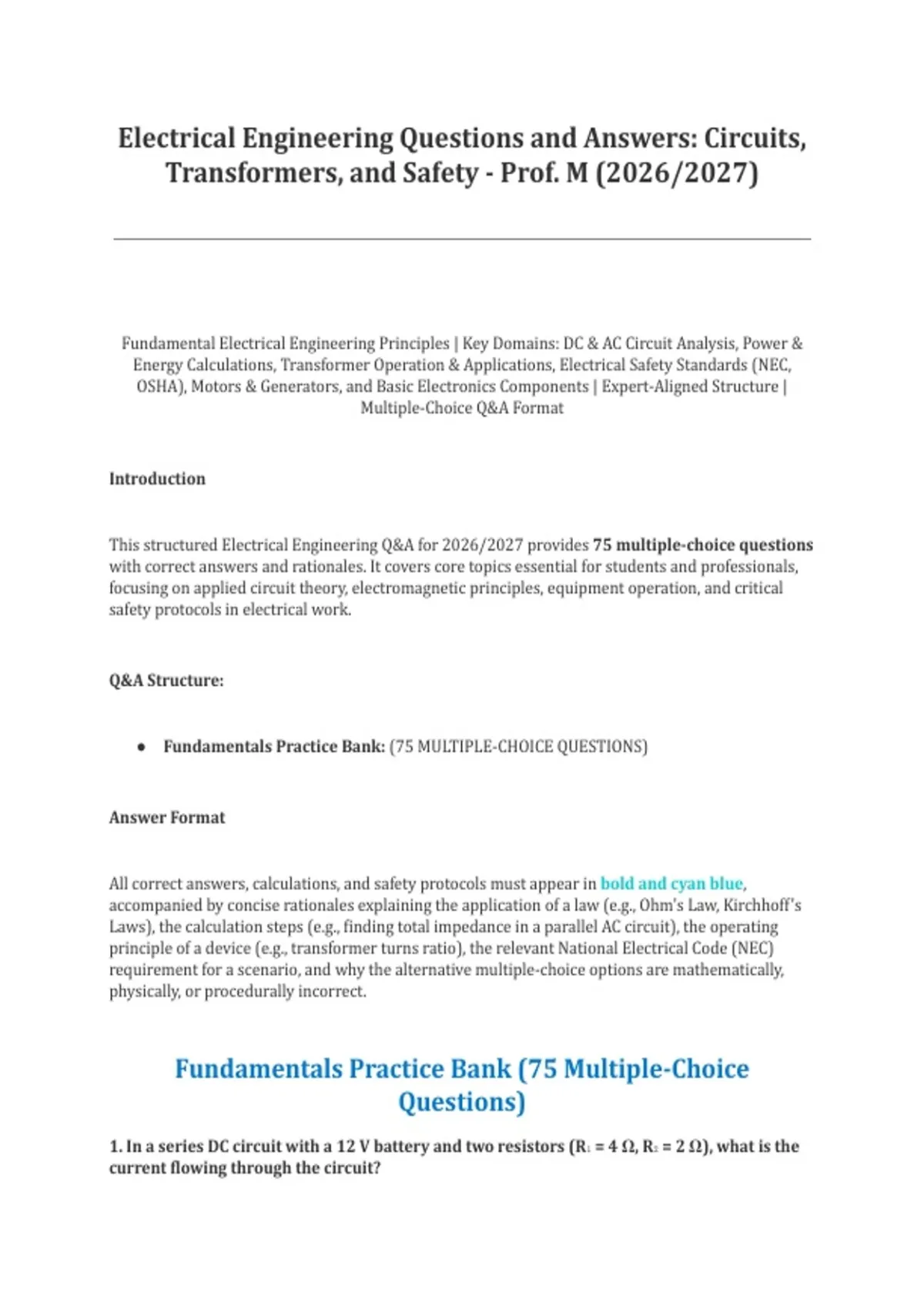

Electrical Engineering Questions and Answers: Circuits,
Transformers, and Safety - Prof. M (2026/2027)
Fundamental Electrical Engineering Principles | Key Domains: DC & AC Circuit Analysis, Power &
Energy Calculations, Transformer Operation & Applications, Electrical Safety Standards (NEC,
OSHA), Motors & Generators, and Basic Electronics Components | Expert-Aligned Structure |
Multiple-Choice Q&A Format
Introduction
This structured Electrical Engineering Q&A for 2026/2027 provides 75 multiple-choice questions
with correct answers and rationales. It covers core topics essential for students and professionals,
focusing on applied circuit theory, electromagnetic principles, equipment operation, and critical
safety protocols in electrical work.
Q&A Structure:
● Fundamentals Practice Bank: (75 MULTIPLE-CHOICE QUESTIONS)
Answer Format
All correct answers, calculations, and safety protocols must appear in bold and cyan blue,
accompanied by concise rationales explaining the application of a law (e.g., Ohm's Law, Kirchhoff's
Laws), the calculation steps (e.g., finding total impedance in a parallel AC circuit), the operating
principle of a device (e.g., transformer turns ratio), the relevant National Electrical Code (NEC)
requirement for a scenario, and why the alternative multiple-choice options are mathematically,
physically, or procedurally incorrect.
Fundamentals Practice Bank (75 Multiple-Choice
Questions)
1. In a series DC circuit with a 12 V battery and two resistors (R₁ = 4 Ω, R₂ = 2 Ω), what is the
current flowing through the circuit?
, A. 1 A
B. 2 A
C. 3 A
D. 6 A
B. 2 A
Rationale: Total resistance R_total = R₁ + R₂ = 4 + 2 = 6 Ω. By Ohm’s Law, I = V / R = 12 V / 6 Ω = 2 A.
Current is the same everywhere in a series circuit. Option A results from using only R₁; C and D
misapply the formula.
2. What is the total resistance of three 6 Ω resistors connected in parallel?
A. 18 Ω
B. 9 Ω
C. 3 Ω
D. 2 Ω
D. 2 Ω
Rationale: For parallel resistors: 1/R_total = 1/6 + 1/6 + 1/6 = 3/6 = 1/2 → R_total = 2 Ω. Option A is
the series sum; B and C are incorrect combinations. Parallel resistance is always less than the smallest
individual resistor.
3. According to Kirchhoff’s Voltage Law (KVL), the algebraic sum of all voltages around a
closed loop is:
A. Equal to the total current
B. Equal to the source voltage only
C. Zero
D. Equal to the sum of resistances
C. Zero
Rationale: KVL states that the sum of all voltage rises equals the sum of all voltage drops in a closed
loop, so the net sum is zero. This is a consequence of conservation of energy. Other options confuse KVL
with Ohm’s Law or KCL.
, 4. In an AC circuit, if the voltage leads the current, the load is primarily:
A. Resistive
B. Capacitive
C. Inductive
D. Nonlinear
C. Inductive
Rationale: In inductive loads (e.g., motors, transformers), current lags voltage due to energy storage in
magnetic fields. In capacitive loads, current leads voltage. Resistive loads have voltage and current in
phase. This is fundamental to power factor analysis.
5. A 120 V, 60 Hz AC source is connected to a 0.1 H inductor. What is the inductive reactance
(X_L)?
A. 6.28 Ω
B. 37.7 Ω
C. 60 Ω
D. 120 Ω
B. 37.7 Ω
Rationale: X_L = 2πfL = 2 × π × 60 × 0.1 ≈ 37.7 Ω. Option A uses f = 10 Hz; C and D ignore the formula.
Reactance increases with frequency and inductance.
6. What is the real power (in watts) consumed by a 120 V AC circuit drawing 5 A with a power
factor of 0.8?
A. 480 W
B. 600 W
C. 750 W
D. 900 W
A. 480 W
