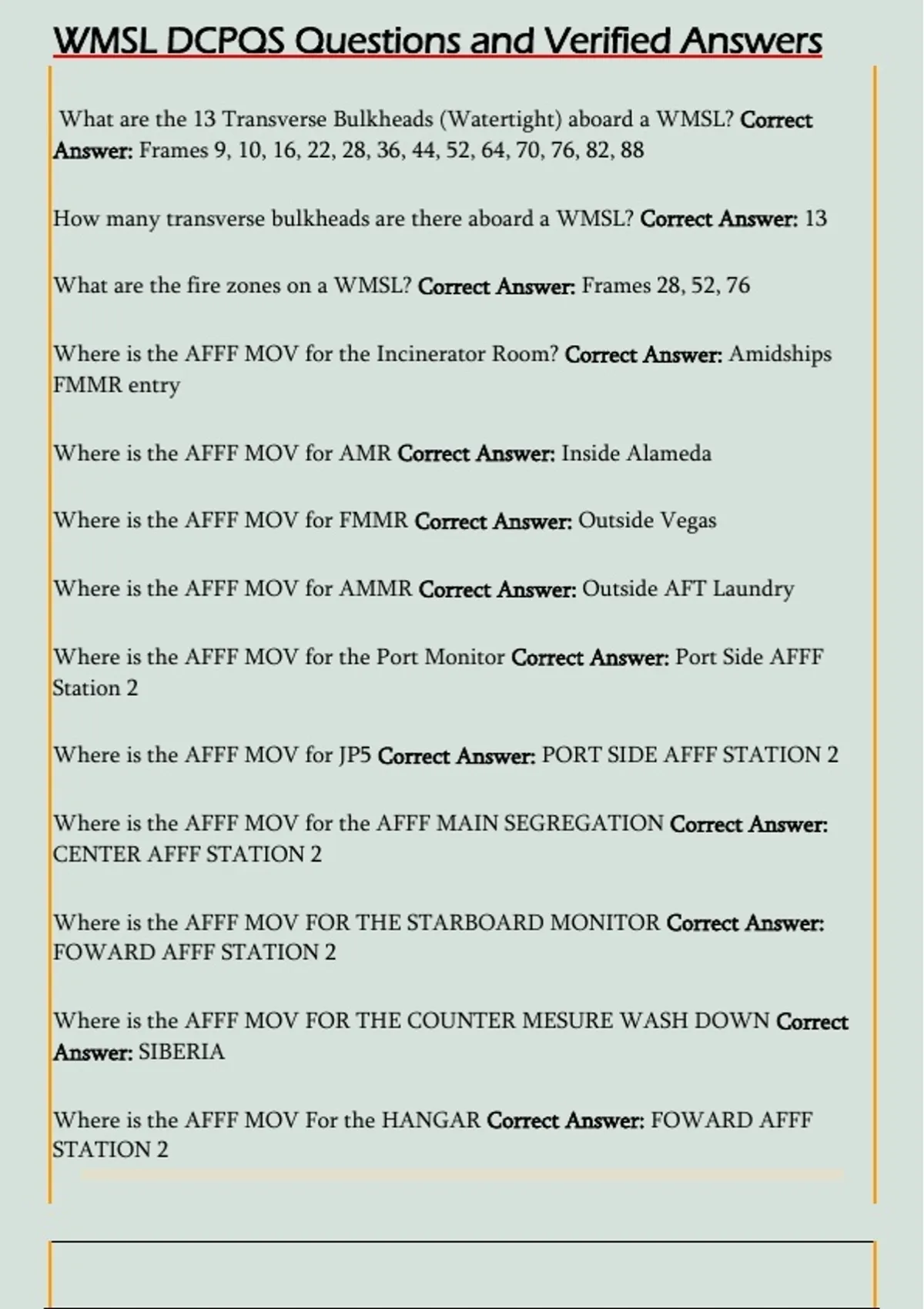

WMSL DCPQS Questions and Verified Answers
What are the 13 Transverse Bulkheads (Watertight) aboard a WMSL? Correct
Answer: Frames 9, 10, 16, 22, 28, 36, 44, 52, 64, 70, 76, 82, 88
How many transverse bulkheads are there aboard a WMSL? Correct Answer: 13
What are the fire zones on a WMSL? Correct Answer: Frames 28, 52, 76
Where is the AFFF MOV for the Incinerator Room? Correct Answer: Amidships
FMMR entry
Where is the AFFF MOV for AMR Correct Answer: Inside Alameda
Where is the AFFF MOV for FMMR Correct Answer: Outside Vegas
Where is the AFFF MOV for AMMR Correct Answer: Outside AFT Laundry
Where is the AFFF MOV for the Port Monitor Correct Answer: Port Side AFFF
Station 2
Where is the AFFF MOV for JP5 Correct Answer: PORT SIDE AFFF STATION 2
Where is the AFFF MOV for the AFFF MAIN SEGREGATION Correct Answer:
CENTER AFFF STATION 2
Where is the AFFF MOV FOR THE STARBOARD MONITOR Correct Answer:
FOWARD AFFF STATION 2
Where is the AFFF MOV FOR THE COUNTER MESURE WASH DOWN Correct
Answer: SIBERIA
Where is the AFFF MOV For the HANGAR Correct Answer: FOWARD AFFF
STATION 2
,Where is the AFFF MOV FOR GEN 3 Correct Answer: AMIDSHIPS
NEWLONDON AND HONOLULU
ORDER OF OPERATIONS FOR EDUCTORS Correct Answer: OVERBOARD,
FIREMAIN, SUCTION
FIRE PUMP LOCATIONS Correct Answer: PUMP #1 BOW THRUSTER ROOM
PUMP #2 AMR
PUMP #3 AMMR
PUMP #4 FMMR
PUMP #5 AFT PUMP ROOM
WHAT IS THE NORMAL P-100 PUMP SET UP Correct Answer: 1. CHECK FUEL
LEVEL, RE FUEL IF NEEDED
2. MOVE PUMP CLOSE TO WATER SOURCE
3. ATTACH FOOT VALVE TO MALE END OF 3 INCH SUCTION HOSE.
4. ATTACH FEMALE END OF SUCTION HOSE PUMP SUCTION.
5. LOWER FOOT VALVE AND SUCTION HOSE INTO WATER SOURCE
6. ENSURE FOOT VALVE IS AT LEAST 1 FOOT UNDER WATER.
7. ATTACHED TRIGATE TO PUMP DISCHARGE USING 2 1/2 JUMPER HOSE.
8. ATTACH 1 1/2 HOSE AND VARI NOZZLE TO TRIGATE.
9. ENSURE OTHER OUTLEST IN TRIGATE ARE CLOSED.
,10.ATTACH EXHAUST HOSE TO PUMP EXHAUST PORT DOWIND
WHERE ARE THE WATER MIST SYSTEMS LOCATED Correct Answer: AMR
FMMR
AMMR
GEN 3
WHERE ARE THE SHIPS GENERATORS LOCATED Correct Answer: AMR
FMMR
GEN 3
What's in the patching kit? Correct Answer: Chisel
Caulking iron
Caulking hammer
Divers gloves
Hatchet
Hex saw blades
Hex saw frame
Marlin 3, 5 lbs rolls
Oakum
Plugs
, sheers
Sheet rubber
Syntoglass 10
Wedges
where are the wooden and mechanical shores located ? Correct Answer: repair 2 :
anchor and windlass room
repair 3: directly aft and port of repair 3
fire warrior firefighting thermal imager Correct Answer: sees through dense smoke,
hotter objects appear lighter than cooler objects,
cannot see through glass, plastic or stone
uses 2 double a batteries
firemain can also supply water to which systems via cross connect Correct Answer:
magazine sprinklers,
dewatering eductors,
a triple f systems,
counter measure washdown,
tank fill connectors,
emergency aux sea water supply
how many P-100 and where are they located? Correct Answer: 5,
