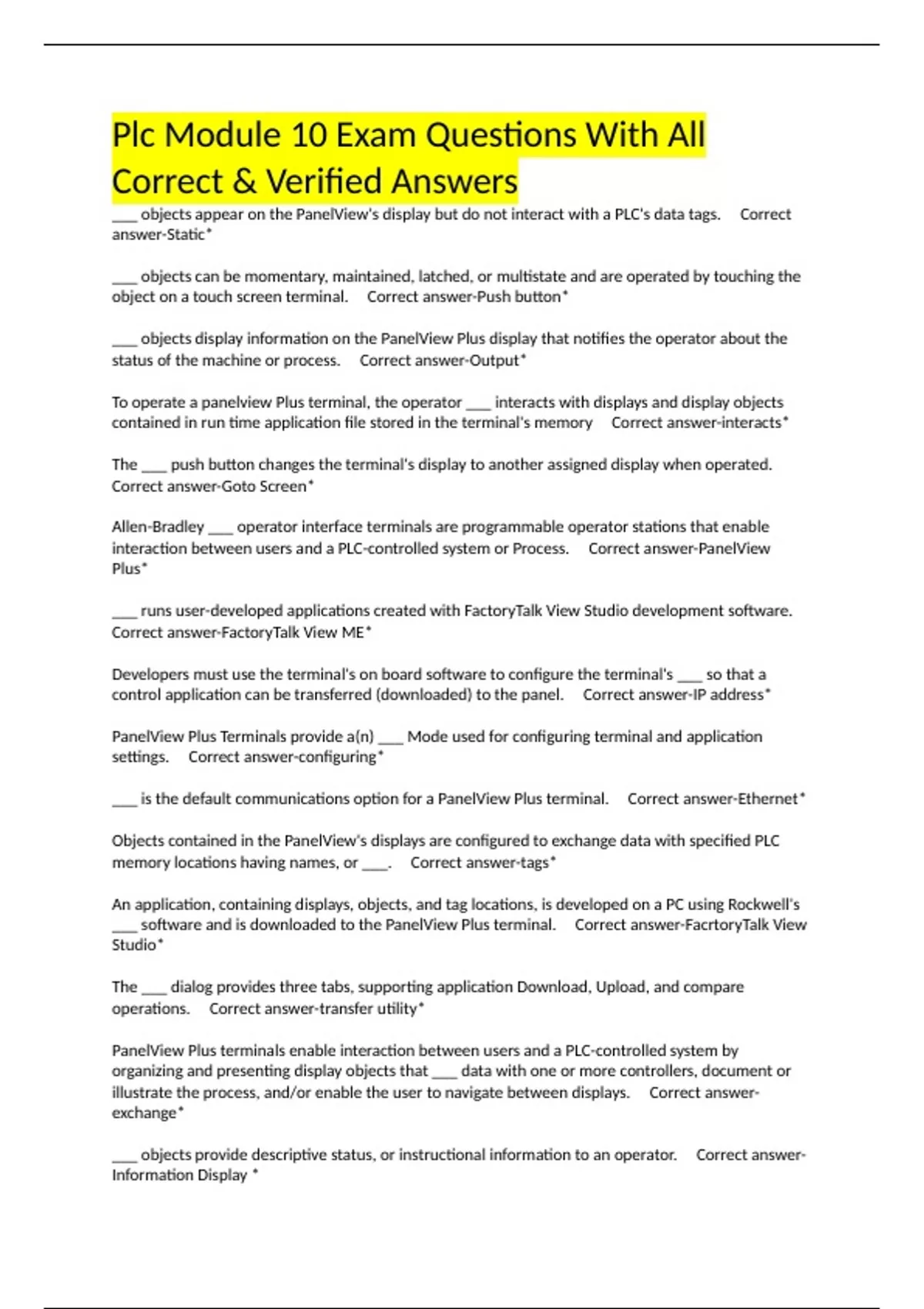

Plc Module 10 Exam Questions With All
Correct & Verified Answers
___ objects appear on the PanelView's display but do not interact with a PLC's data tags. Correct
answer-Static*
___ objects can be momentary, maintained, latched, or multistate and are operated by touching the
object on a touch screen terminal. Correct answer-Push button*
___ objects display information on the PanelView Plus display that notifies the operator about the
status of the machine or process. Correct answer-Output*
To operate a panelview Plus terminal, the operator ___ interacts with displays and display objects
contained in run time application file stored in the terminal's memory Correct answer-interacts*
The ___ push button changes the terminal's display to another assigned display when operated.
Correct answer-Goto Screen*
Allen-Bradley ___ operator interface terminals are programmable operator stations that enable
interaction between users and a PLC-controlled system or Process. Correct answer-PanelView
Plus*
___ runs user-developed applications created with FactoryTalk View Studio development software.
Correct answer-FactoryTalk View ME*
Developers must use the terminal's on board software to configure the terminal's ___ so that a
control application can be transferred (downloaded) to the panel. Correct answer-IP address*
PanelView Plus Terminals provide a(n) ___ Mode used for configuring terminal and application
settings. Correct answer-configuring*
___ is the default communications option for a PanelView Plus terminal. Correct answer-Ethernet*
Objects contained in the PanelView's displays are configured to exchange data with specified PLC
memory locations having names, or ___. Correct answer-tags*
An application, containing displays, objects, and tag locations, is developed on a PC using Rockwell's
___ software and is downloaded to the PanelView Plus terminal. Correct answer-FacrtoryTalk View
Studio*
The ___ dialog provides three tabs, supporting application Download, Upload, and compare
operations. Correct answer-transfer utility*
PanelView Plus terminals enable interaction between users and a PLC-controlled system by
organizing and presenting display objects that ___ data with one or more controllers, document or
illustrate the process, and/or enable the user to navigate between displays. Correct answer-
exchange*
___ objects provide descriptive status, or instructional information to an operator. Correct answer-
Information Display *
