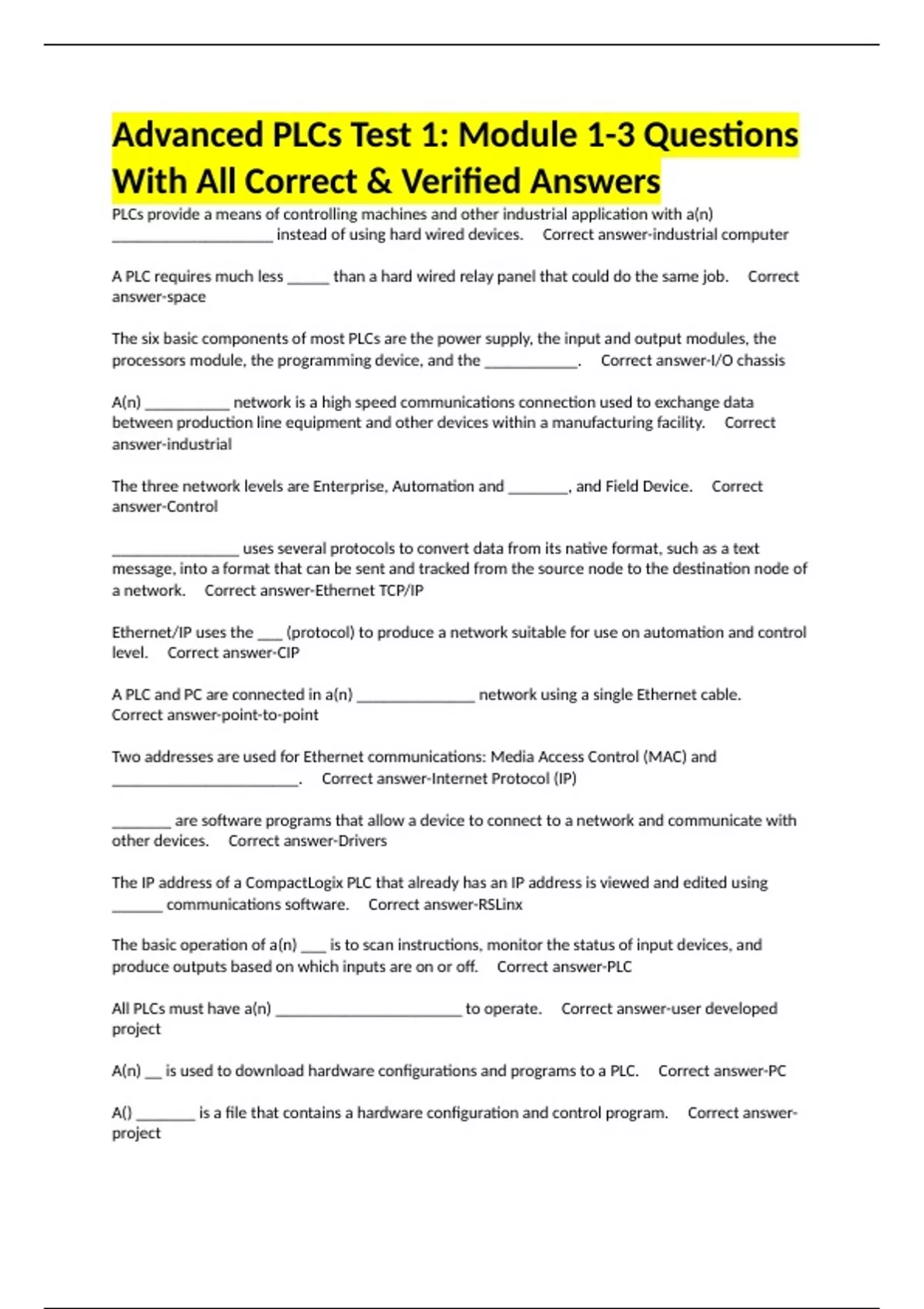

Advanced PLCs Test 1: Module 1-3 Questions
With All Correct & Verified Answers
PLCs provide a means of controlling machines and other industrial application with a(n)
___________________ instead of using hard wired devices. Correct answer-industrial computer
A PLC requires much less _____ than a hard wired relay panel that could do the same job. Correct
answer-space
The six basic components of most PLCs are the power supply, the input and output modules, the
processors module, the programming device, and the ___________. Correct answer-I/O chassis
A(n) __________ network is a high speed communications connection used to exchange data
between production line equipment and other devices within a manufacturing facility. Correct
answer-industrial
The three network levels are Enterprise, Automation and _______, and Field Device. Correct
answer-Control
_______________ uses several protocols to convert data from its native format, such as a text
message, into a format that can be sent and tracked from the source node to the destination node of
a network. Correct answer-Ethernet TCP/IP
Ethernet/IP uses the ___ (protocol) to produce a network suitable for use on automation and control
level. Correct answer-CIP
A PLC and PC are connected in a(n) ______________ network using a single Ethernet cable.
Correct answer-point-to-point
Two addresses are used for Ethernet communications: Media Access Control (MAC) and
______________________. Correct answer-Internet Protocol (IP)
_______ are software programs that allow a device to connect to a network and communicate with
other devices. Correct answer-Drivers
The IP address of a CompactLogix PLC that already has an IP address is viewed and edited using
______ communications software. Correct answer-RSLinx
The basic operation of a(n) ___ is to scan instructions, monitor the status of input devices, and
produce outputs based on which inputs are on or off. Correct answer-PLC
All PLCs must have a(n) ______________________ to operate. Correct answer-user developed
project
A(n) __ is used to download hardware configurations and programs to a PLC. Correct answer-PC
A() _______ is a file that contains a hardware configuration and control program. Correct answer-
project
