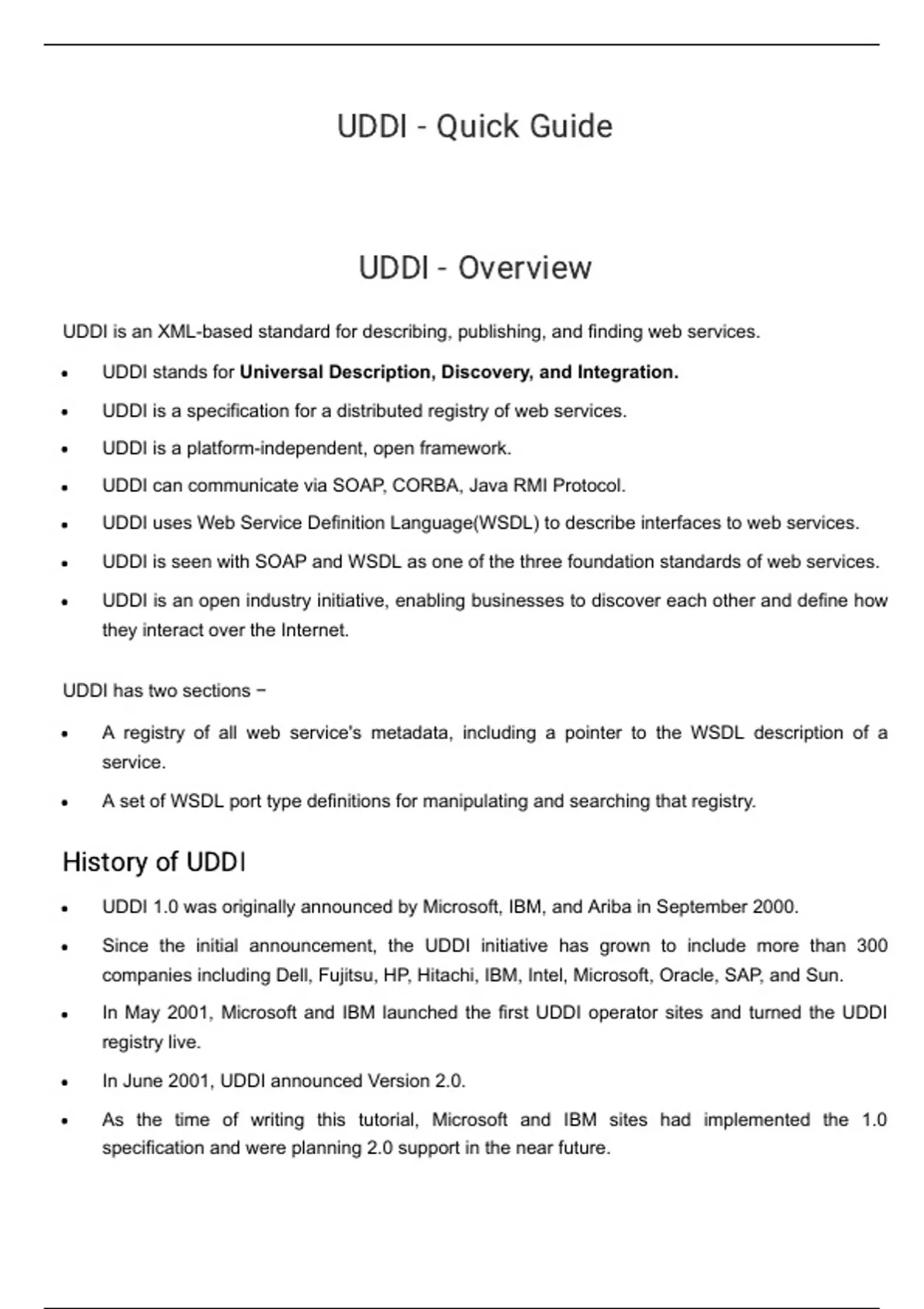

UDDI - Quick Guide
UDDI - Overview
UDDI is an XML-based standard for describing, publishing, and finding web services.
UDDI stands for Universal Description, Discovery, and Integration.
UDDI is a specification for a distributed registry of web services.
UDDI is a platform-independent, open framework.
UDDI can communicate via SOAP, CORBA, Java RMI Protocol.
UDDI uses Web Service Definition Language(WSDL) to describe interfaces to web services.
UDDI is seen with SOAP and WSDL as one of the three foundation standards of web services.
UDDI is an open industry initiative, enabling businesses to discover each other and define how
they interact over the Internet.
UDDI has two sections −
A registry of all web service's metadata, including a pointer to the WSDL description of a
service.
A set of WSDL port type definitions for manipulating and searching that registry.
History of UDDI
UDDI 1.0 was originally announced by Microsoft, IBM, and Ariba in September 2000.
Since the initial announcement, the UDDI initiative has grown to include more than 300
companies including Dell, Fujitsu, HP, Hitachi, IBM, Intel, Microsoft, Oracle, SAP, and Sun.
In May 2001, Microsoft and IBM launched the first UDDI operator sites and turned the UDDI
registry live.
In June 2001, UDDI announced Version 2.0.
As the time of writing this tutorial, Microsoft and IBM sites had implemented the 1.0
specification and were planning 2.0 support in the near future.
, Currently UDDI is sponsored by OASIS.
Partner Interface Processes
Partner Interface Processes (PIPs) are XML based interfaces that enable two trading partners to
exchange data. Dozens of PIPs already exist. Some of them are listed here −
PIP2A2 − Enables a partner to query another for product information.
PIP3A2 − Enables a partner to query the price and availability of specific products.
PIP3A4 − Enables a partner to submit an electronic purchase order and receive
acknowledgment of the order.
PIP3A3 − Enables a partner to transfer the contents of an electronic shopping cart.
PIP3B4 − Enables a partner to query the status of a specific shipment.
Private UDDI Registries
As an alternative to using the public federated network of UDDI registries available on the Internet,
companies or industry groups may choose to implement their own private UDDI registries.
These exclusive services are designed for the sole purpose of allowing members of the company or
of the industry group to share and advertise services amongst themselves.
Regardless of whether the UDDI registry is a part of the global federated network or a privately
owned and operated registry, the one thing that ties them all together is a common web services API
for publishing and locating businesses and services advertised within the UDDI registry.
UDDI - Elements
A business or a company can register three types of information into a UDDI registry. This
information is contained in three elements of UDDI.
These three elements are −
White Pages,
Yellow Pages, and
Green Pages.
White Pages
White pages contain −
Basic information about the company and its business.
, Basic contact information including business name, address, contact phone number, etc.
A Unique identifiers for the company tax IDs. This information allows others to discover your
web service based upon your business identification.
Yellow Pages
Yellow pages contain more details about the company. They include descriptions of the kind of
electronic capabilities the company can offer to anyone who wants to do business with it.
Yellow pages uses commonly accepted industrial categorization schemes, industry codes,
product codes, business identification codes and the like to make it easier for companies to
search through the listings and find exactly what they want.
Green Pages
Green pages contains technical information about a web service. A green page allows someone to
bind to a Web service after it's been found. It includes −
The various interfaces
The URL locations
Discovery information and similar data required to find and run the Web service.
NOTE − UDDI is not restricted to describing web services based on SOAP. Rather, UDDI can be
used to describe any service, from a single webpage or email address all the way up to SOAP,
CORBA, and Java RMI services.
UDDI - Technical Architecture
The UDDI technical architecture consists of three parts −
UDDI Data Model
UDDI Data Model is an XML Schema for describing businesses and web services. The data model
is described in detail in the "UDDI Data Model" chapter.
UDDI API Specification
It is a specification of API for searching and publishing UDDI data.
UDDI Cloud Services
