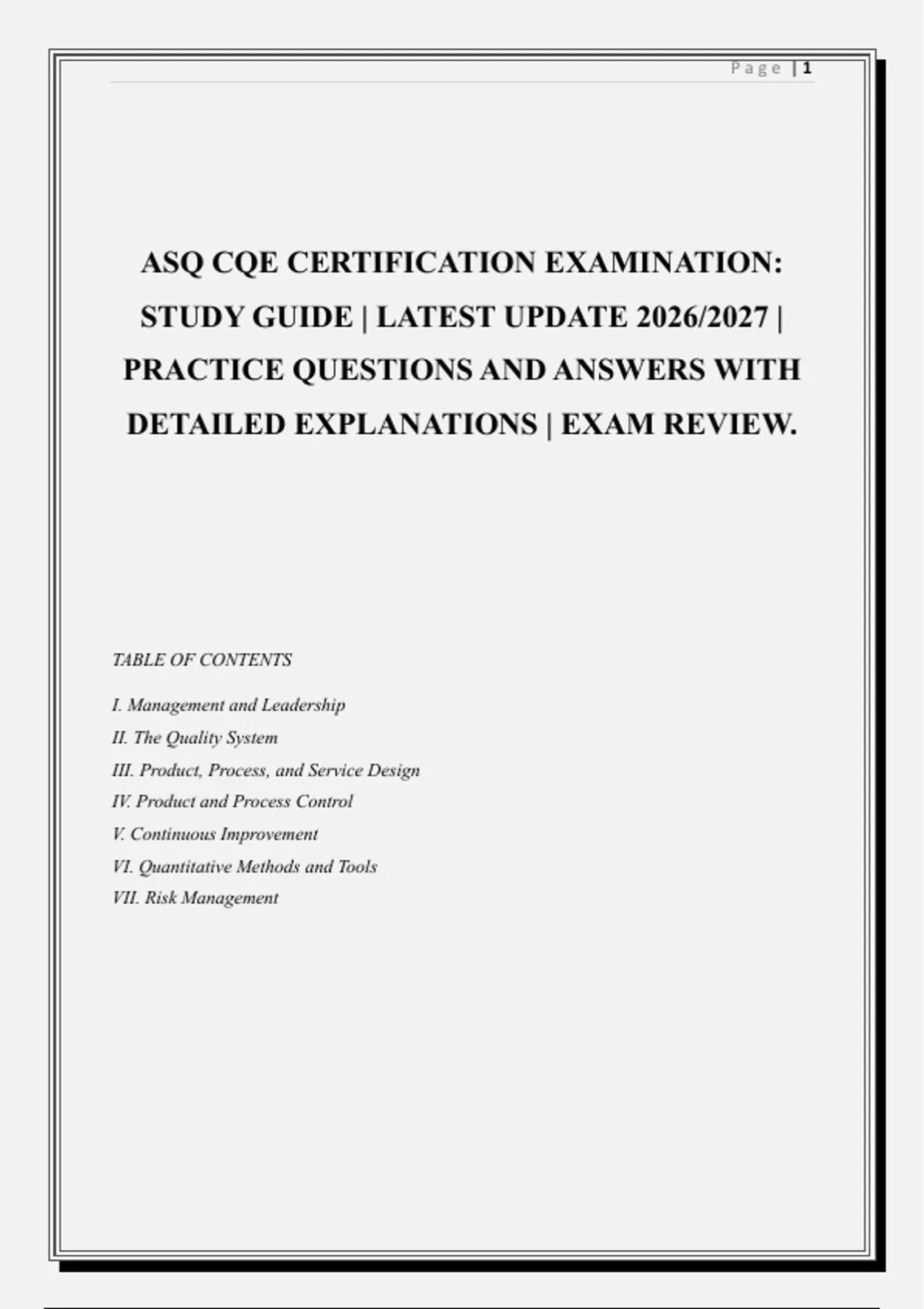

Page |1
ASQ CQE CERTIFICATION EXAMINATION:
STUDY GUIDE | LATEST UPDATE 2026/2027 |
PRACTICE QUESTIONS AND ANSWERS WITH
DETAILED EXPLANATIONS | EXAM REVIEW.
TABLE OF CONTENTS
I. Management and Leadership
II. The Quality System
III. Product, Process, and Service Design
IV. Product and Process Control
V. Continuous Improvement
VI. Quantitative Methods and Tools
VII. Risk Management
, Page |2
question 1: A quality engineer is analyzing a process where the customer's specification limits
are 10.0 ± 0.5 mm. The process is normally distributed with a mean of 10.1 mm and a
standard deviation of 0.12 mm. What is the process capability index (Cp) for this process?
Correct Answer: Cp = 1.39
Cp is calculated as (USL − LSL) / (6σ). The specification width is 11.5 − 9.5 = 1.0 mm. Six
sigma is 6 × 0.12 = 0.72 mm. Therefore, Cp = 1..72 = 1.39. This indicates the process
spread is narrower than the specification width, though centering must also be evaluated.
question 2: During a design FMEA, a team assigns a Severity rating of 9, an Occurrence
rating of 4, and a Detection rating of 3. What is the Risk Priority Number (RPN), and what
action is typically required?
Correct Answer: RPN = 108; the team should take action to reduce risk, prioritizing
severity.
RPN is calculated as Severity × Occurrence × Detection = 9 × 4 × 3 = 108. While RPN
thresholds vary by organization, a Severity of 9 generally mandates corrective action
regardless of RPN. The team should focus on reducing severity through design changes or, if
severity cannot be reduced, lowering occurrence and improving detection.
question 3: A quality engineer is conducting a gauge R&R study. The results show %EV =
8%, %AV = 12%, and %GRR = 14.4%. How should this measurement system be evaluated?
Correct Answer: The measurement system is generally acceptable, though the appraiser
variation warrants monitoring.
The AIAG MSA manual guidelines state that %GRR under 10% is acceptable, 10–30% is
conditionally acceptable, and over 30% is unacceptable. A %GRR of 14.4% falls in the
conditionally acceptable range. The %AV of 12% suggests appraiser technique differences
that should be addressed through training or better fixturing.
question 4: A process is monitored using an X-bar and R chart. The X-bar chart shows an
upward trend of seven consecutive points. What does this pattern indicate, and what action
should the quality engineer take?
Correct Answer: The process mean is shifting; the engineer should investigate
assignable causes immediately.
, Page |3
A run of seven consecutive points in one direction is a nonrandom pattern indicating a
process shift. This violates the Western Electric rules for statistical process control. The
quality engineer should stop the process, investigate potential causes such as tool wear,
material changes, or operator adjustments, and correct the issue before continuing
production.
question 5: A quality engineer is planning a full factorial experiment with four factors at two
levels each. How many treatment combinations are required, and how many degrees of
freedom are available for the error term if the experiment is replicated once?
Correct Answer: 16 treatment combinations; 16 degrees of freedom for error.
A 2⁴ full factorial has 2⁴ = 16 treatment combinations. With one replication, there are 32 total
observations. The total degrees of freedom are 31. The model degrees of freedom are 15 (4
main effects + 6 two-factor + 4 three-factor + 1 four-factor). The error degrees of freedom
are 31 − 15 = 16.
question 6: A quality engineer is evaluating a supplier's process capability. The supplier
reports a Cpk of 1.67. What does this value indicate about the supplier's process?
Correct Answer: The process is capable and well-centered, producing fewer than 0.6
ppm defects.
Cpk of 1.67 indicates that the process mean is at least 5 sigma from the nearest specification
limit, assuming centering. This corresponds to a defect rate of approximately 0.57 ppm per
side. A Cpk of 1.67 is considered excellent and exceeds the typical 1.33 minimum requirement
for many industries.
question 7: A quality engineer is conducting a hypothesis test and sets α = 0.05. The p-value
from the test is 0.03. What is the correct conclusion?
Correct Answer: Reject the null hypothesis; there is statistically significant evidence at
the 5% level.
When the p-value is less than the significance level α, the null hypothesis is rejected. A p-
value of 0.03 is less than 0.05, so there is sufficient evidence to reject H₀. The quality
engineer should conclude that the observed effect is statistically significant.
question 8: A company is implementing a Quality Management System based on ISO
9001:2015. Which clause specifically addresses risk-based thinking?
