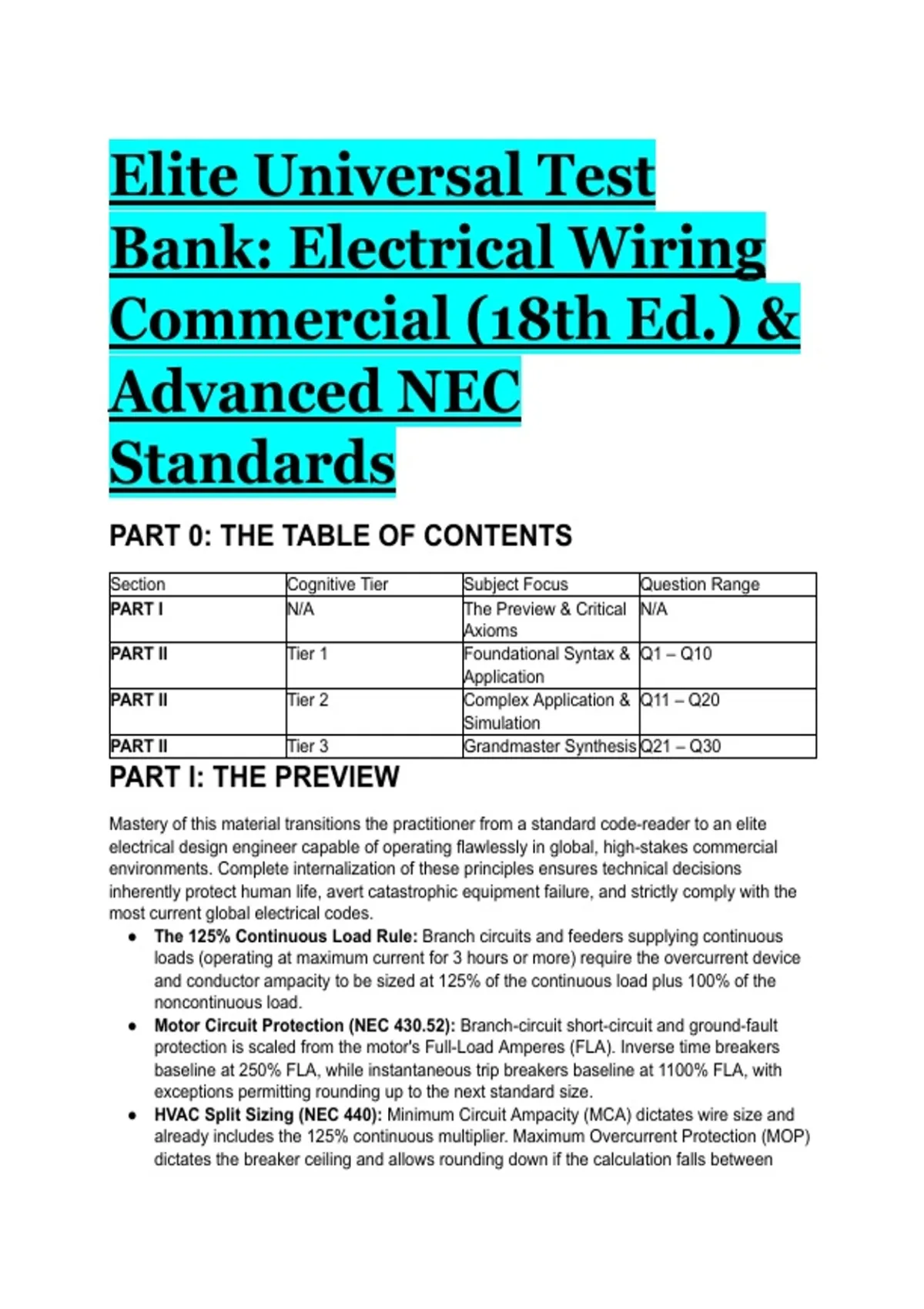

Elite Universal Test
Bank: Electrical Wiring
Commercial (18th Ed.) &
Advanced NEC
Standards
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus Question Range
PART I N/A The Preview & Critical N/A
Axioms
PART II Tier 1 Foundational Syntax & Q1 – Q10
Application
PART II Tier 2 Complex Application & Q11 – Q20
Simulation
PART II Tier 3 Grandmaster Synthesis Q21 – Q30
PART I: THE PREVIEW
Mastery of this material transitions the practitioner from a standard code-reader to an elite
electrical design engineer capable of operating flawlessly in global, high-stakes commercial
environments. Complete internalization of these principles ensures technical decisions
inherently protect human life, avert catastrophic equipment failure, and strictly comply with the
most current global electrical codes.
● The 125% Continuous Load Rule: Branch circuits and feeders supplying continuous
loads (operating at maximum current for 3 hours or more) require the overcurrent device
and conductor ampacity to be sized at 125% of the continuous load plus 100% of the
noncontinuous load.
● Motor Circuit Protection (NEC 430.52): Branch-circuit short-circuit and ground-fault
protection is scaled from the motor's Full-Load Amperes (FLA). Inverse time breakers
baseline at 250% FLA, while instantaneous trip breakers baseline at 1100% FLA, with
exceptions permitting rounding up to the next standard size.
● HVAC Split Sizing (NEC 440): Minimum Circuit Ampacity (MCA) dictates wire size and
already includes the 125% continuous multiplier. Maximum Overcurrent Protection (MOP)
dictates the breaker ceiling and allows rounding down if the calculation falls between
, standard sizes.
● Ground-Fault Protection of Equipment (GFPE): Mandatory for solidly grounded wye
AC systems exceeding 150V to ground and up to 1000V phase-to-phase, with a service
disconnect rated 1000A or more. This mitigates arcing burndowns, not personnel shock
hazards.
● IEEE 1584-2018 Arc Flash Dynamics: Incident energy is heavily dependent on electrode
configuration and enclosure size. Horizontal Conductors in a Box (HCB) direct plasma
aggressively toward the worker, yielding the highest incident energy.
PART II: THE ELITE TEST BANK
Q1: A commercial electrical designer is sizing a branch circuit for a commercial electric vehicle
(EV) charger that will draw a continuous 48A load. Based on the principles of NEC Continuous
Load Sizing, which overcurrent protective device (OCPD) rating is the MOST ACCURATE? A)
48A, as modern circuit breakers are tested to carry 100% of their nameplate load indefinitely. B)
50A, utilizing the next standard size up from the absolute continuous load. C) 60A, by applying
the 125% continuous load multiplier to the continuous current. D) 80A, by applying the 125%
continuous load multiplier and rounding up to account for ambient temperature derating.
● Answer: C (60A, by applying the 125% continuous load multiplier to the continuous
current.)
● Distractor Analysis:
○ A is incorrect: EV chargers operate for more than 3 hours, strictly categorizing them
as continuous loads. Standard breakers cannot carry 100% of their rating
continuously without thermal degradation unless the entire assembly is explicitly
listed for 100% operation.
○ B is incorrect: A 50A OCPD fails to account for the mandatory 125% continuous
load adjustment required by NEC 210.20(A), which would result in nuisance tripping
due to thermal buildup.
○ D is incorrect: Ambient temperature derating affects conductor ampacity (NEC 310),
not the baseline mathematical sizing of the OCPD. An 80A breaker represents an
arbitrary and dangerous oversize.
The Mentor's Analysis: Continuous loads generate sustained thermal stress within an
enclosure. Standard circuit breakers are calibrated in open air; inside an enclosed panelboard,
heat accumulation alters the thermal trip curve. Multiplying the continuous load by 125% (48A ×
1.25 = 60A) provides the necessary thermal headroom to prevent premature unlatching.
Professional/Academic Intuition: Always size the OCPD at 125% for continuous loads to
compensate for thermal enclosure dynamics, unless working with a specifically listed
100%-rated assembly.
Q2: A 20A, 120V multiple-outlet branch circuit in an office breakroom supplies overhead lighting
and several general-use wall receptacles. A facilities manager wishes to hardwire a
fastened-in-place commercial ice machine onto this exact circuit. Based on the principles of
NEC 210.23 Permissible Loads, what is the MAXIMUM allowable ampere rating for this ice
machine? A) 16A B) 20A C) 10A D) 12.5A
● Answer: C (10A)
● Distractor Analysis:
○ A is incorrect: The 16A threshold represents the 80% rule, which applies exclusively
to cord-and-plug connected utilization equipment that is not fastened in place.
, ○ B is incorrect: A 20A load assumes a 100% utilization on an individual (dedicated)
branch circuit, which contradicts the scenario's parameter of a multiple-outlet circuit
sharing lighting and receptacles.
○ D is incorrect: A 12.5A limitation has no basis in NEC 210.23 calculations for
fastened-in-place equipment.
The Mentor's Analysis: NEC 210.23(A)(2) dictates that the total rating of utilization equipment
fastened in place cannot exceed 50% of the branch-circuit ampere rating if the circuit also
supplies lighting, cord-and-plug receptacles, or both. Half of the 20A rating establishes a rigid
10A ceiling.
Circuit Type Max Cord-and-Plug Load (80%) Max Fastened-in-Place Load
(50%)
15A Mixed Circuit 12A 7.5A
20A Mixed Circuit 16A 10A
Professional/Academic Intuition: Fastened-in-place loads on mixed circuits are
mathematically capped at 50% to prevent static equipment from monopolizing the
circuit's capacity, which would cause nuisance tripping when transient loads are
introduced.
Q3: An engineer is designing the short-circuit protection for a 460V, 3-phase, 200-HP
squirrel-cage induction motor with a Full-Load Amperage (FLA) of 221A. The design specifies
an inverse time (thermal-magnetic) circuit breaker. Based on the principles of NEC 430.52,
which calculated value represents the theoretical baseline for selecting the breaker size? A)
276.25A B) 552.5A C) 2431A D) 386.75A
● Answer: B (552.5A)
● Distractor Analysis:
○ A is incorrect: The 276.25A calculation uses a 125% multiplier, which is strictly
utilized for sizing the motor branch circuit conductors and running overload
protection, not the short-circuit protective device.
○ C is incorrect: The 2431A calculation uses an 1100% multiplier, which applies only
to instantaneous trip (magnetic-only) breakers, not inverse time breakers.
○ D is incorrect: The 386.75A calculation uses a 175% multiplier, which is reserved
for dual-element (time-delay) fuses, rendering it invalid for a circuit breaker
calculation.
The Mentor's Analysis: NEC 430.52(C)(1) requires inverse time circuit breakers for general
motor applications to be sized at a baseline maximum of 250% of the motor's FLA to allow for
magnetic inrush starting current while still providing adequate short-circuit protection (221A ×
2.50 = 552.5A). If this calculation does not match a standard size, the engineer is permitted to
select the next higher standard rating, such as 600A. Professional/Academic Intuition: Motor
branch circuits divorce protection duties: OCPDs handle short circuits (sized at 250% for
inverse time), while separate thermal overloads handle continuous running heat.
Q4: A commercial rooftop photovoltaic (PV) array is installed on a modern logistics center. To
comply with NEC 690.12 Rapid Shutdown requirements, a first responder initiates an
emergency stop. Based on the principles of PV Hazard Control, what is the MAXIMUM
allowable voltage for controlled conductors located strictly inside the 1-foot array boundary after
30 seconds? A) 30V B) 150V C) 80V D) 0V
● Answer: C (80V)
● Distractor Analysis:
○ A is incorrect: The 30V limit is mandated for conductors located outside the array
