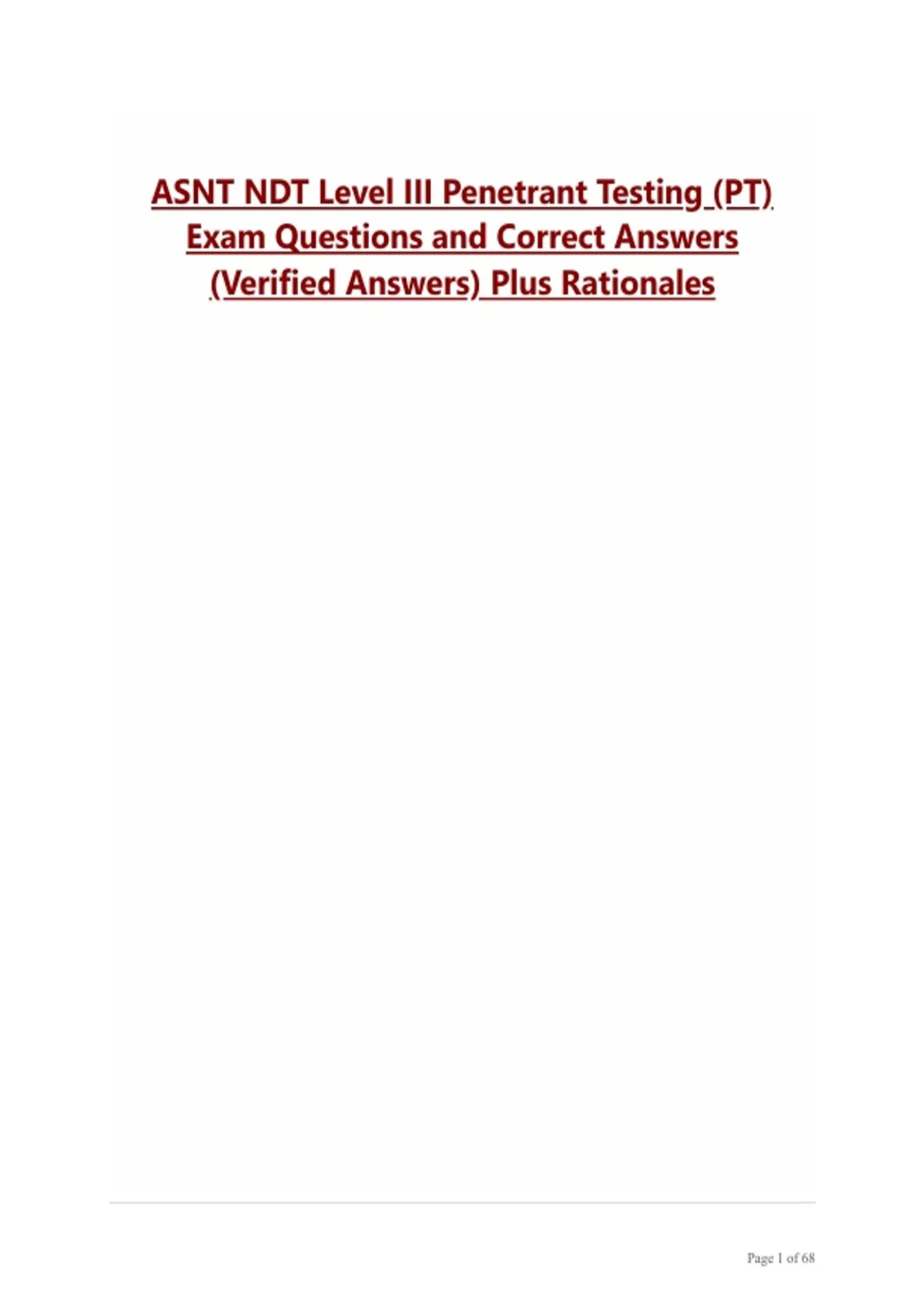

ASNT NDT Level III Penetrant Testing (PT)
Exam Questions and Correct Answers
(Verified Answers) Plus Rationales
Page 1 of 68
,Question 1: In the liquid penetrant testing process for Level III applications,
which of the following best describes the primary mechanism by which a
penetrant enters a surface-breaking discontinuity under controlled capillary
conditions?
A. Gravity-driven flow into open voids
B. Diffusion driven by concentration gradients
C. Capillary action resulting from surface tension forces
D. Electrostatic attraction between penetrant molecules and discontinuity walls
CORRECT ANSWER: C. Capillary action resulting from surface tension forces
Rationale: Capillary action is the fundamental physical principle governing penetrant
entry into discontinuities. Surface tension of the penetrant and the wetting
characteristics of the surface create a pressure differential that draws the liquid into
fine openings, independent of gravity for most practical discontinuity sizes.
Question 2: When establishing a penetrant process for critical aerospace
components per ASNT Level III requirements, which factor most significantly
influences the selection between a water-washable and a post-emulsifiable
fluorescent penetrant system?
A. Ambient temperature during inspection
B. Required sensitivity level and ease of excess penetrant removal without over-
washing
C. Color of the component surface
D. Availability of ultraviolet lighting intensity
CORRECT ANSWER: B. Required sensitivity level and ease of excess penetrant
removal without over-washing
Rationale: Post-emulsifiable systems generally offer higher sensitivity and better
control over removal of excess penetrant because the emulsifier is applied
separately, reducing the risk of removing penetrant from shallow discontinuities.
Water-washable systems are simpler but more prone to over-washing.
Question 3: According to established penetrant testing principles at the Level
III knowledge level, what is the primary purpose of the developer application
step following excess penetrant removal?
A. To chemically react with the penetrant and produce a permanent color change
B. To draw trapped penetrant from discontinuities to the surface by capillary action
and blotting, thereby forming visible indications
C. To neutralize residual acidity on the part surface
D. To provide a protective coating against subsequent corrosion
Page 2 of 68
,CORRECT ANSWER: B. To draw trapped penetrant from discontinuities to the
surface by capillary action and blotting, thereby forming visible indications
Rationale: Developers function primarily through absorptive (blotting) action that
extracts penetrant from discontinuities and spreads it laterally on the surface,
increasing indication visibility and contrast against the background.
Question 4: In the evaluation of liquid penetrant indications for a Level III
examiner, which characteristic most reliably distinguishes a relevant
discontinuity indication from a nonrelevant indication caused by surface
geometry?
A. Indication brightness alone under black light
B. Indication size relative to the part thickness
C. Indication persistence after controlled re-cleaning and re-development,
combined with knowledge of part geometry and processing history
D. Indication color under white light only
CORRECT ANSWER: C. Indication persistence after controlled re-cleaning and
re-development, combined with knowledge of part geometry and processing
history
Rationale: Relevant indications associated with discontinuities will typically reappear
after proper re-processing, whereas geometric or processing artifacts often do not.
Level III judgment integrates process knowledge with indication behavior.
Question 5: When developing a written penetrant testing procedure for ASME
Code work, which parameter must be controlled most rigorously to maintain
consistent sensitivity of a fluorescent post-emulsifiable system?
A. Ambient humidity during dwell
B. Emulsifier contact time and method of application
C. Developer particle size distribution only
D. Black light filter wavelength exclusively
CORRECT ANSWER: B. Emulsifier contact time and method of application
Rationale: Emulsifier dwell time directly controls the degree of penetrant solubility
in water. Excessive time risks removing penetrant from discontinuities; insufficient
time leaves background. Precise control is essential for reproducible sensitivity.
Question 6: For a Level III determination of penetrant process suitability on
titanium alloy components, which of the following is the most critical material
compatibility concern?
A. Potential for hydrogen embrittlement from aqueous cleaners
B. Risk of galvanic corrosion from residual penetrant
Page 3 of 68
, C. Interaction of halogenated solvents with the alloy leading to stress-corrosion
cracking
D. Magnetic property changes induced by fluorescent dyes
CORRECT ANSWER: C. Interaction of halogenated solvents with the alloy
leading to stress-corrosion cracking
Rationale: Titanium alloys are highly susceptible to stress-corrosion cracking when
exposed to halogenated solvents. Level III procedures must specify non-
halogenated materials or strict residual limits and verification.
Question 7: In quantitative assessment of penetrant system performance using
known defect standards, which metric is most appropriate for comparing
relative sensitivity between two fluorescent penetrant systems at Level III?
A. Absolute indication length measurement under white light
B. Threshold of detection of the smallest reliable discontinuity under controlled
black-light intensity and viewing conditions
C. Total volume of penetrant consumed per part
D. Developer drying time only
CORRECT ANSWER: B. Threshold of detection of the smallest reliable
discontinuity under controlled black-light intensity and viewing conditions
Rationale: Sensitivity is defined by the ability to detect the smallest discontinuity of
interest under standardized conditions. Known defect standards (e.g., cracked
chrome panels or star cracks) provide the reference for this comparison.
Question 8: When a Level III is investigating intermittent false indications
appearing only on certain batches of parts, which process variable should be
examined first as the most probable root cause?
A. Variation in black-light intensity across the inspection booth
B. Inconsistent pre-cleaning effectiveness leading to residual soils that retain
penetrant
C. Slight differences in part surface roughness
D. Developer application technique variation
CORRECT ANSWER: B. Inconsistent pre-cleaning effectiveness leading to
residual soils that retain penetrant
Rationale: Residual soils, oils, or oxides can trap penetrant or create nonrelevant
indications. Pre-cleaning is the foundational step; variations here commonly
produce intermittent background or false calls.
Question 9: For establishing the maximum allowable penetrant dwell time on a
production line processing aluminum aerospace castings, which consideration
Page 4 of 68
