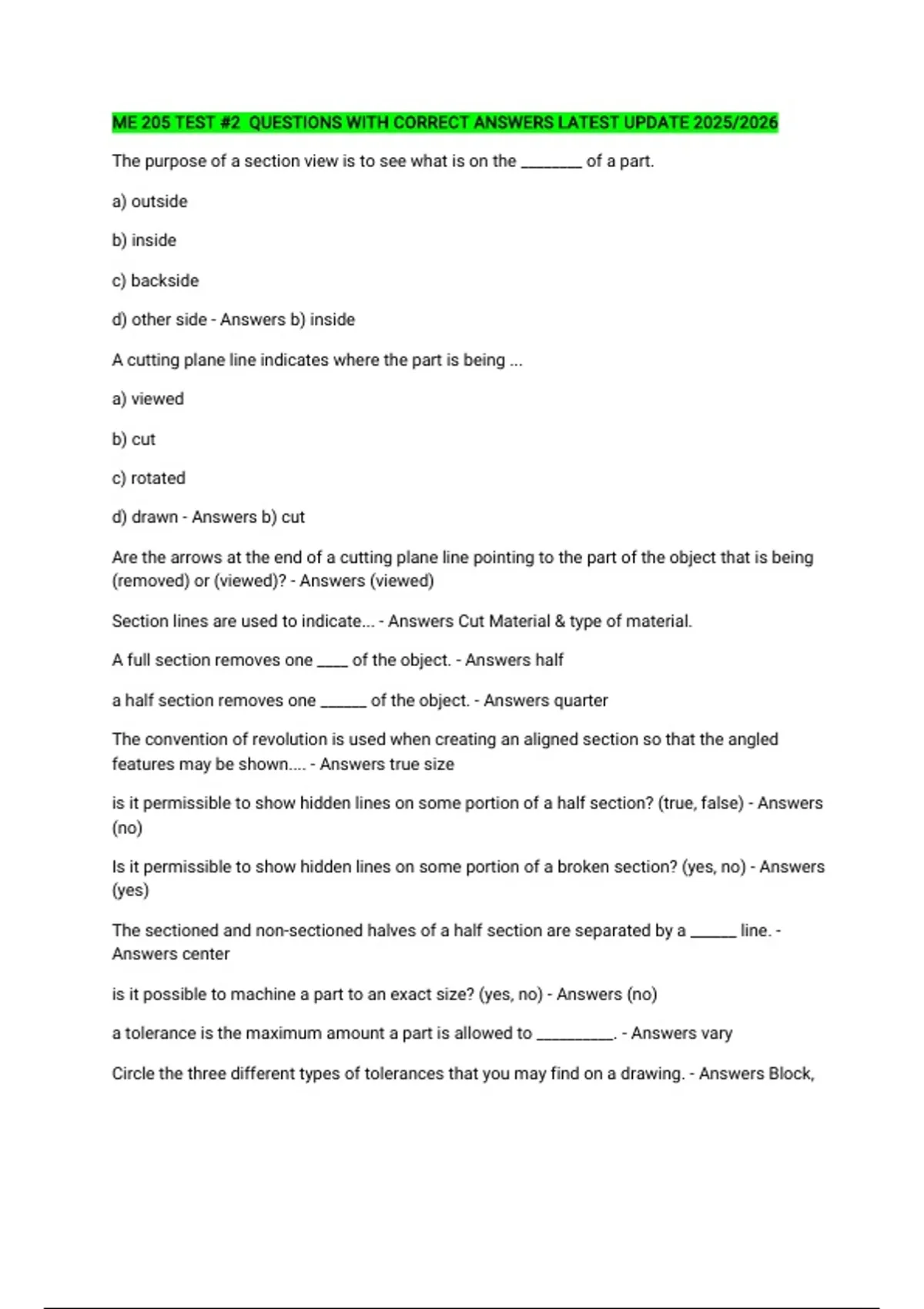

ME 205 TEST #2 QUESTIONS WITH CORRECT ANSWERS LATEST UPDATE 2025/2026
The purpose of a section view is to see what is on the ________ of a part.
a) outside
b) inside
c) backside
d) other side - Answers b) inside
A cutting plane line indicates where the part is being ...
a) viewed
b) cut
c) rotated
d) drawn - Answers b) cut
Are the arrows at the end of a cutting plane line pointing to the part of the object that is being
(removed) or (viewed)? - Answers (viewed)
Section lines are used to indicate... - Answers Cut Material & type of material.
A full section removes one ____ of the object. - Answers half
a half section removes one ______ of the object. - Answers quarter
The convention of revolution is used when creating an aligned section so that the angled
features may be shown.... - Answers true size
is it permissible to show hidden lines on some portion of a half section? (true, false) - Answers
(no)
Is it permissible to show hidden lines on some portion of a broken section? (yes, no) - Answers
(yes)
The sectioned and non-sectioned halves of a half section are separated by a ______ line. -
Answers center
is it possible to machine a part to an exact size? (yes, no) - Answers (no)
a tolerance is the maximum amount a part is allowed to __________. - Answers vary
Circle the three different types of tolerances that you may find on a drawing. - Answers Block,
