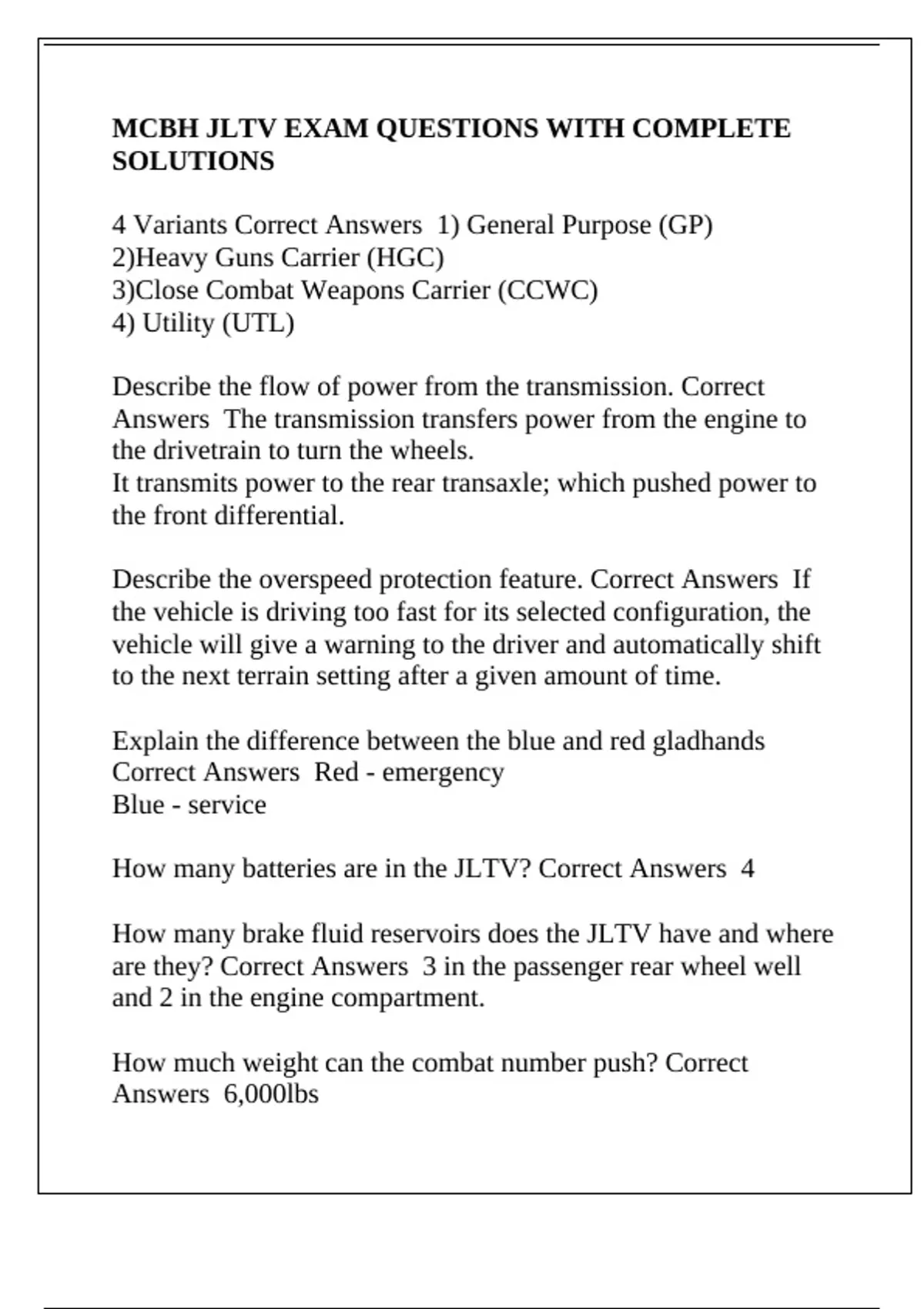

MCBH JLTV EXAM QUESTIONS WITH COMPLETE
SOLUTIONS
4 Variants Correct Answers 1) General Purpose (GP)
2)Heavy Guns Carrier (HGC)
3)Close Combat Weapons Carrier (CCWC)
4) Utility (UTL)
Describe the flow of power from the transmission. Correct
Answers The transmission transfers power from the engine to
the drivetrain to turn the wheels.
It transmits power to the rear transaxle; which pushed power to
the front differential.
Describe the overspeed protection feature. Correct Answers If
the vehicle is driving too fast for its selected configuration, the
vehicle will give a warning to the driver and automatically shift
to the next terrain setting after a given amount of time.
Explain the difference between the blue and red gladhands
Correct Answers Red - emergency
Blue - service
How many batteries are in the JLTV? Correct Answers 4
How many brake fluid reservoirs does the JLTV have and where
are they? Correct Answers 3 in the passenger rear wheel well
and 2 in the engine compartment.
How much weight can the combat number push? Correct
Answers 6,000lbs
, How much weight can the winch support? Correct Answers
18,500lbs
List 4 factors related to rolling resistance Correct Answers 1)
Mire Level
2) Location
3) Terrain Condition
4) Weight
List the 5 suspension drive settings. Correct Answers S-
Suspension Aided Egress System (SAES)
O-Operational
F-Fording
T-Tie Down
L-Loading
Time for acceleration from 0-30mph Correct Answers 7.4 sec
Time of acceleration from 0-50mph Correct Answers 18.3 sec
What 3 solenoids are engaged when towing? Correct Answers
R1 - ready
T2 - to
T3 - tow
What actions do you take if any BII is missing or unserviceable?
Correct Answers Annotate discrepancies and notify field
maintenance
What are the 3 BII codes? Correct Answers Serviceable
