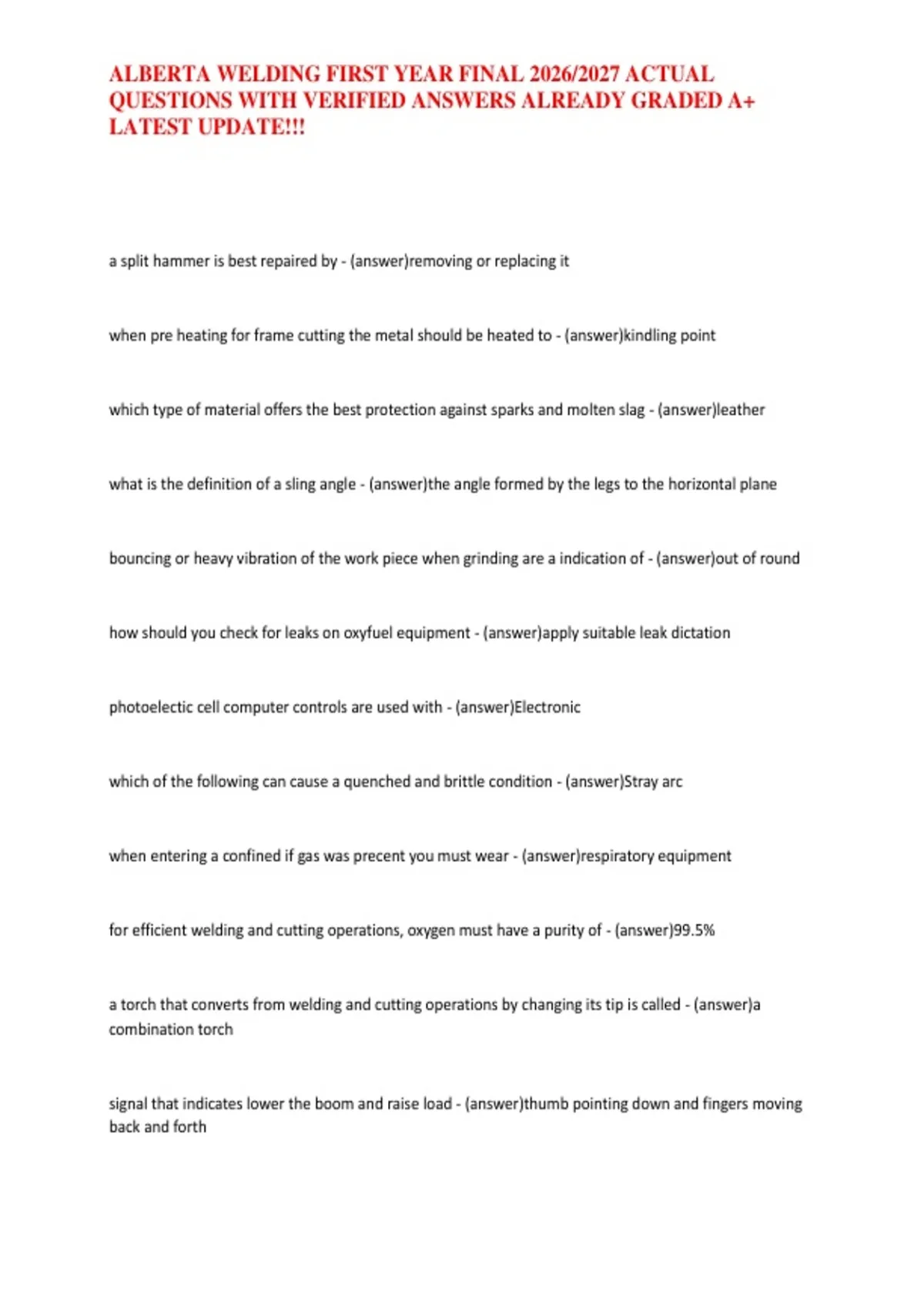

ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
a split hammer is best repaired by - (answer)removing or replacing it
when pre heating for frame cutting the metal should be heated to - (answer)kindling point
which type of material offers the best protection against sparks and molten slag - (answer)leather
what is the definition of a sling angle - (answer)the angle formed by the legs to the horizontal plane
bouncing or heavy vibration of the work piece when grinding are a indication of - (answer)out of round
how should you check for leaks on oxyfuel equipment - (answer)apply suitable leak dictation
photoelectic cell computer controls are used with - (answer)Electronic
which of the following can cause a quenched and brittle condition - (answer)Stray arc
when entering a confined if gas was precent you must wear - (answer)respiratory equipment
for efficient welding and cutting operations, oxygen must have a purity of - (answer)99.5%
a torch that converts from welding and cutting operations by changing its tip is called - (answer)a
combination torch
signal that indicates lower the boom and raise load - (answer)thumb pointing down and fingers moving
back and forth
,ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
if you have to carry a heavy object what is the best way to do so - (answer)hold close to your body
Aws Class system R60 stands for - (answer)60,000 minimum tensile strength
why is it important to fit test a respirator? - (answer)to prevent leaks of contaminated air
when shutting down oxyfuel outfit you should - (answer)close the cylinder valves and bleed the system
the critical pressure of c02 H2 is - (answer)28 PSI
where is the Centre of gravity of an object located - (answer)At the point at which the object balances
a V block should be used when drilling holes in - (answer)Round material
which of the following is a very Hazardous procedure - (answer)transferring actylene from one cylinder
to another
cutting edge on a cold chisel should be _______ for softer materials and _____ for hard materials -
(answer)60 degree and 90 degree
what to do when sending out unsolicited resumes - (answer)include information in the cover letter to
indicate contact information
main purpose of a flow meter - (answer)maintain constant flow of gas
stickout distance is between the - (answer)End of contact tip and unmelted electrode
,ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
voltage sensing wire feeder set their speed according to - (answer)Arc control
push-pull guns are an advantage when - (answer)soft wires are taken throw long liners
recommended electrode extension for FCAW wire in flat position - (answer)3/8 to 3/4
what is a stringer bead - (answer)no side to side motion
weld progression for first pass on 3F - (answer)Downhill
how will penetration be affected when stickout is increased - (answer)will decrease penetration
what is the recommended gun angle on a groove weld? - (answer)1/2 included joint angle
why are back-up bar often employed on FCAW groove welds - (answer)it is difficult to control
penetration
type of wire drive system that allows greater machine to work distances - (answer)push pull system
when is DCEN used with SAW - (answer)when shallower penetration is required
What part of FCAW equipment requires the most ongoing maintenance - (answer)gun and cable
assembly
recommended gun angle for first pass on 2F - (answer)45 degrees to the vertical and horizontal plans
, ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
very fine droplets of metal transferred across an arc in axial fashion - (answer)Spray transfer
to increase arc length when SAW you would - (answer)Increase voltage
spray transfer employs higher - (answer)voltage settings
what is the advantage of using a screw type work clamp SAW - (answer)minimizes arc Blow and different
wire setups
beads when surface welding - (answer)blend together so they form a solid layer of metal
what controls amperage on CV machine - (answer)wire feed speed
the preferred method of measuring shielding gas supply is - (answer)liters per minute (cubic feet per
hour)
a welding machine that provides an almost horizontal output slope is a - (answer)constant arc voltage
machine
how would you likely do surface welding on a vertical surface using FCAW - (answer)travel horizontally
from bottom
what type of wire feed set up is used with CV power sources - (answer)contestant speed
what Organizations have written specifications GMAW filler wire - (answer)AWS and CSA
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
a split hammer is best repaired by - (answer)removing or replacing it
when pre heating for frame cutting the metal should be heated to - (answer)kindling point
which type of material offers the best protection against sparks and molten slag - (answer)leather
what is the definition of a sling angle - (answer)the angle formed by the legs to the horizontal plane
bouncing or heavy vibration of the work piece when grinding are a indication of - (answer)out of round
how should you check for leaks on oxyfuel equipment - (answer)apply suitable leak dictation
photoelectic cell computer controls are used with - (answer)Electronic
which of the following can cause a quenched and brittle condition - (answer)Stray arc
when entering a confined if gas was precent you must wear - (answer)respiratory equipment
for efficient welding and cutting operations, oxygen must have a purity of - (answer)99.5%
a torch that converts from welding and cutting operations by changing its tip is called - (answer)a
combination torch
signal that indicates lower the boom and raise load - (answer)thumb pointing down and fingers moving
back and forth
,ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
if you have to carry a heavy object what is the best way to do so - (answer)hold close to your body
Aws Class system R60 stands for - (answer)60,000 minimum tensile strength
why is it important to fit test a respirator? - (answer)to prevent leaks of contaminated air
when shutting down oxyfuel outfit you should - (answer)close the cylinder valves and bleed the system
the critical pressure of c02 H2 is - (answer)28 PSI
where is the Centre of gravity of an object located - (answer)At the point at which the object balances
a V block should be used when drilling holes in - (answer)Round material
which of the following is a very Hazardous procedure - (answer)transferring actylene from one cylinder
to another
cutting edge on a cold chisel should be _______ for softer materials and _____ for hard materials -
(answer)60 degree and 90 degree
what to do when sending out unsolicited resumes - (answer)include information in the cover letter to
indicate contact information
main purpose of a flow meter - (answer)maintain constant flow of gas
stickout distance is between the - (answer)End of contact tip and unmelted electrode
,ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
voltage sensing wire feeder set their speed according to - (answer)Arc control
push-pull guns are an advantage when - (answer)soft wires are taken throw long liners
recommended electrode extension for FCAW wire in flat position - (answer)3/8 to 3/4
what is a stringer bead - (answer)no side to side motion
weld progression for first pass on 3F - (answer)Downhill
how will penetration be affected when stickout is increased - (answer)will decrease penetration
what is the recommended gun angle on a groove weld? - (answer)1/2 included joint angle
why are back-up bar often employed on FCAW groove welds - (answer)it is difficult to control
penetration
type of wire drive system that allows greater machine to work distances - (answer)push pull system
when is DCEN used with SAW - (answer)when shallower penetration is required
What part of FCAW equipment requires the most ongoing maintenance - (answer)gun and cable
assembly
recommended gun angle for first pass on 2F - (answer)45 degrees to the vertical and horizontal plans
, ALBERTA WELDING FIRST YEAR FINAL 2026/2027 ACTUAL
QUESTIONS WITH VERIFIED ANSWERS ALREADY GRADED A+
LATEST UPDATE!!!
very fine droplets of metal transferred across an arc in axial fashion - (answer)Spray transfer
to increase arc length when SAW you would - (answer)Increase voltage
spray transfer employs higher - (answer)voltage settings
what is the advantage of using a screw type work clamp SAW - (answer)minimizes arc Blow and different
wire setups
beads when surface welding - (answer)blend together so they form a solid layer of metal
what controls amperage on CV machine - (answer)wire feed speed
the preferred method of measuring shielding gas supply is - (answer)liters per minute (cubic feet per
hour)
a welding machine that provides an almost horizontal output slope is a - (answer)constant arc voltage
machine
how would you likely do surface welding on a vertical surface using FCAW - (answer)travel horizontally
from bottom
what type of wire feed set up is used with CV power sources - (answer)contestant speed
what Organizations have written specifications GMAW filler wire - (answer)AWS and CSA
