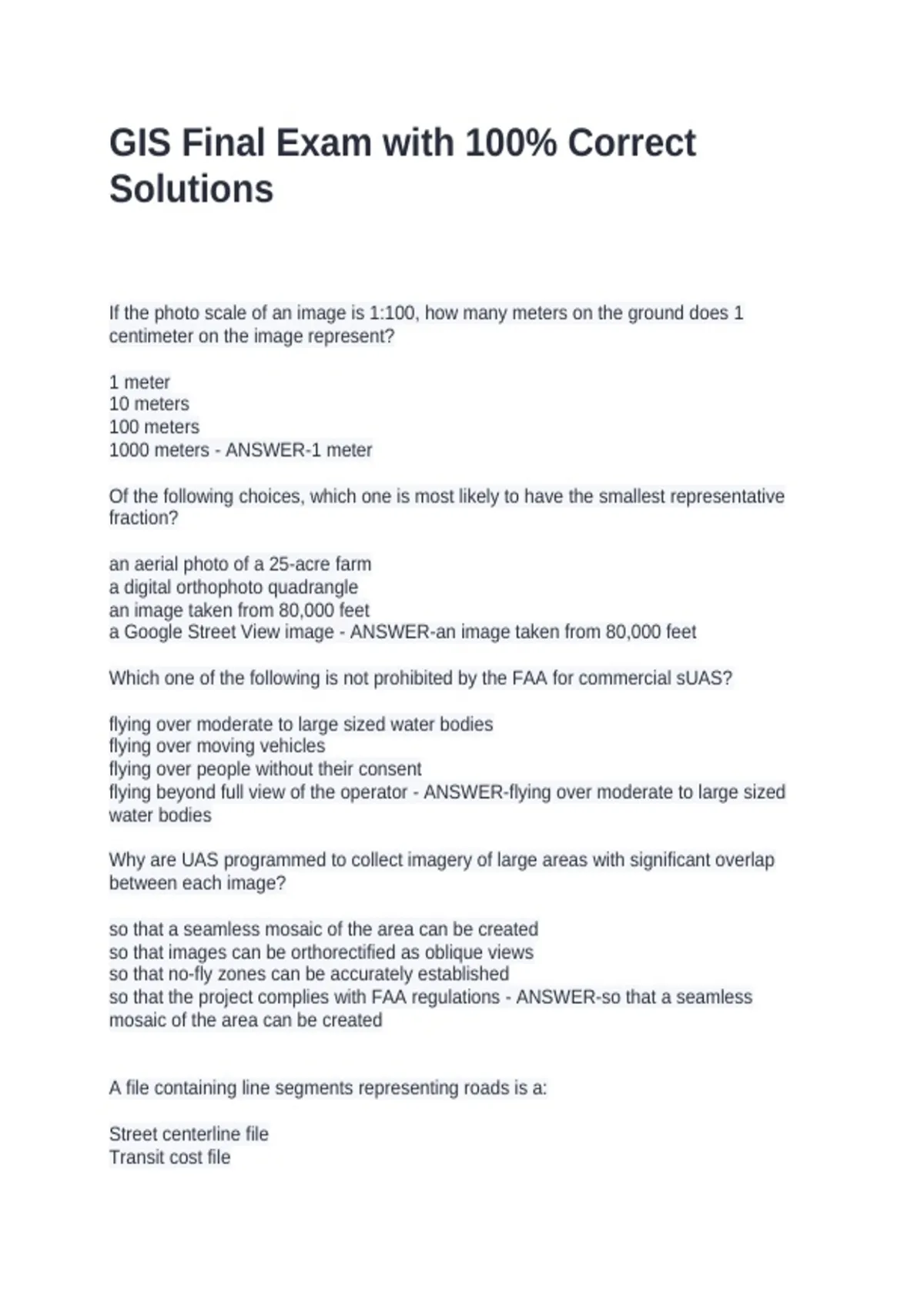

GIS Final Exam with 100% Correct
Solutions
If the photo scale of an image is 1:100, how many meters on the ground does 1
centimeter on the image represent?
1 meter
10 meters
100 meters
1000 meters - ANSWER-1 meter
Of the following choices, which one is most likely to have the smallest representative
fraction?
an aerial photo of a 25-acre farm
a digital orthophoto quadrangle
an image taken from 80,000 feet
a Google Street View image - ANSWER-an image taken from 80,000 feet
Which one of the following is not prohibited by the FAA for commercial sUAS?
flying over moderate to large sized water bodies
flying over moving vehicles
flying over people without their consent
flying beyond full view of the operator - ANSWER-flying over moderate to large sized
water bodies
Why are UAS programmed to collect imagery of large areas with significant overlap
between each image?
so that a seamless mosaic of the area can be created
so that images can be orthorectified as oblique views
so that no-fly zones can be accurately established
so that the project complies with FAA regulations - ANSWER-so that a seamless
mosaic of the area can be created
A file containing line segments representing roads is a:
Street centerline file
Transit cost file
,Connectivity file
Address matching file - ANSWER-Street centerline file
TIGER files are created and maintained by:
USGS
NAVTEQ
US Department of Transportation
US Census Bureau - ANSWER-US Census Bureau
TIGER files typically contain all of the following data except:
Number of houses per street
Address ranges on streets
Zip code information for streets
Names of streets - ANSWER-Number of houses per street
Address parsing is done to:
Separate the parts of an address
Make sure that all parts of an address have the same format
Remove incorrect addresses prior to geocoding
Align each address with a zip code - ANSWER-Separate the parts of an address
The number of units to travel along a link of a network is:
Link speed
Transit cost
Travel vector
Via points - ANSWER-Transit cost
The shortest path between an origin and other nodes on a network can be determined
with:
Dijkstra's Algorithm
Network Junctions
Address Standardization
Impedance Values - ANSWER-Dijkstra's Algorithm
If an address is matched to the correct street segment but the wrong location on that
street, the problem could be:
The reference database does not contain the proper zip code information
The address ranges in the reference database do not match the actual street address
ranges in the real world
The linear interpolation algorithm used in the process is out of date
, The street address was parsed incorrectly - ANSWER-he address ranges in the
reference database do not match the actual street address ranges in the real world
In order to match an address to a particular street location, what fields are necessary to
have in the reference database?
The number of houses on the street
The address ranges on the right and left side of the street
The city name and zip code of the street address
The type of address (whether residential, commercial, or industrial) - ANSWER-The
address ranges on the right and left side of the street
A major road (such as Virginia Beach Blvd) would be represented in a GIS as:
A single record
Multiple records, with each representing one piece of the road
Two records, each representing half of the road's distance
One file entitled "FENAME = 'Virginia Beach Blvd'" - ANSWER-Multiple records, with
each representing one piece of the road
The tool used for viewing imagery at a particular location on a road is:
Transit View
Geocoding Vis
Street View
Road Visualizer - ANSWER-Street View
The base network data used for geocoding is referred to as:
Reference database
Street View
Linear Match
Standard data set - ANSWER-Reference database
In a TIGER 2000 file, the FEDIRP field refers to:
Name of the street
The direction of the prefix of a street
The direction of the suffix of a street
The type of road - ANSWER-The direction of the prefix of a street
What bands does NDVI use?=
green and NIR
green and red
NIR and green
NIR and red - ANSWER-NIR and red
