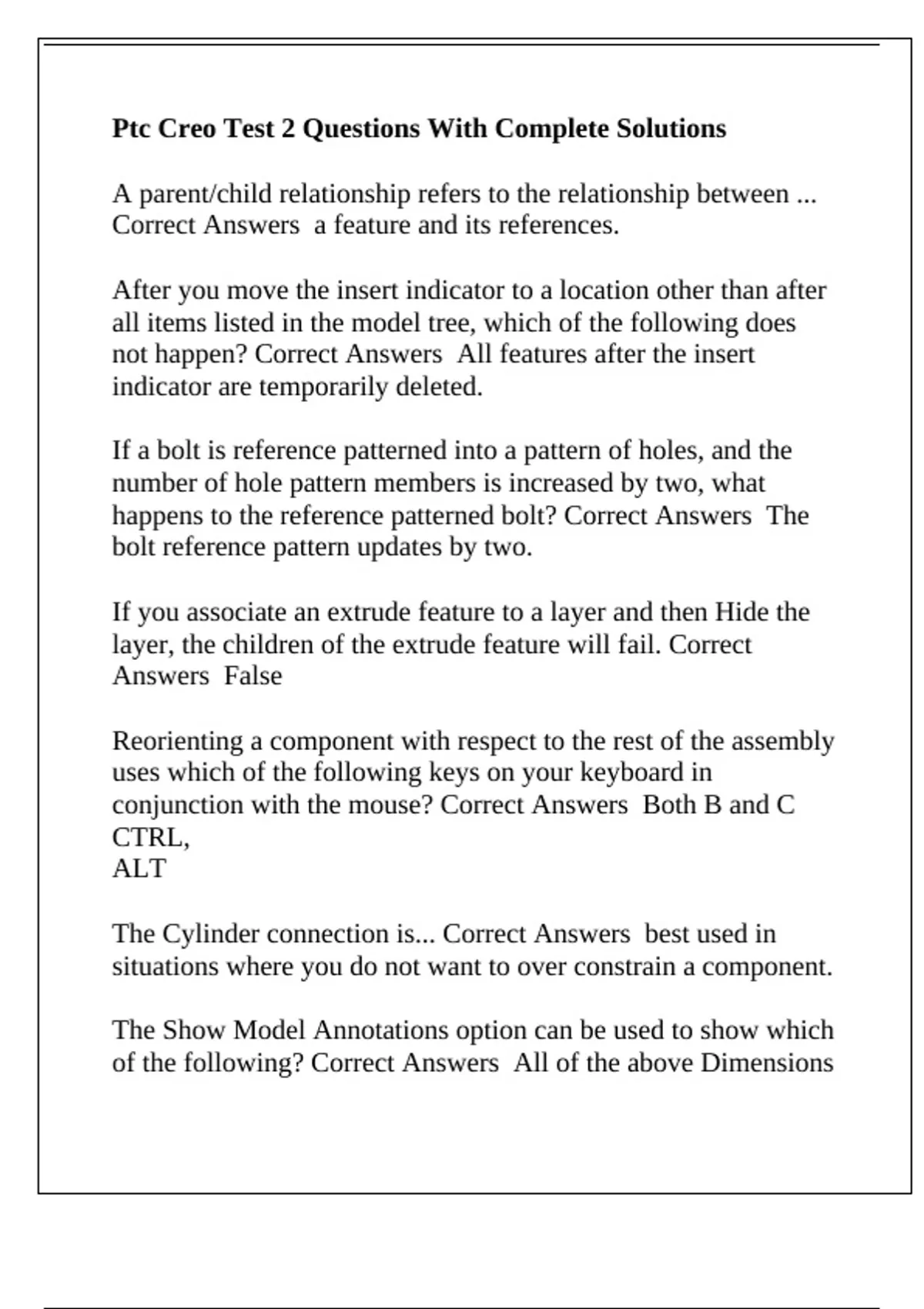

Ptc Creo Test 2 Questions With Complete Solutions
A parent/child relationship refers to the relationship between ...
Correct Answers a feature and its references.
After you move the insert indicator to a location other than after
all items listed in the model tree, which of the following does
not happen? Correct Answers All features after the insert
indicator are temporarily deleted.
If a bolt is reference patterned into a pattern of holes, and the
number of hole pattern members is increased by two, what
happens to the reference patterned bolt? Correct Answers The
bolt reference pattern updates by two.
If you associate an extrude feature to a layer and then Hide the
layer, the children of the extrude feature will fail. Correct
Answers False
Reorienting a component with respect to the rest of the assembly
uses which of the following keys on your keyboard in
conjunction with the mouse? Correct Answers Both B and C
CTRL,
ALT
The Cylinder connection is... Correct Answers best used in
situations where you do not want to over constrain a component.
The Show Model Annotations option can be used to show which
of the following? Correct Answers All of the above Dimensions
, Notes
Datums
Geometric Tolerances
True or False? A BOM Table is manually created. The user must
type the names of all components used within the assembly.
Correct Answers False
True or False? A driven dimension's value is driven by the
selected geometry. Therefore, if the geometry is updated the
dimension value automatically updates. Correct Answers True
True or False? An Axis pattern enables you to create patterns in
a linear direction Correct Answers False
True or False? An explode state is only available when viewing
3-D models and cannot be used within 2-D drawings. Correct
Answers False
True or False? An open section sketch extending further than the
bounding solid geometry can cause an open section failure.
Correct Answers True
True or False? Creating new assemblies using standard
templates can save time by not repeatedly having to define
company standards information. Correct Answers True
