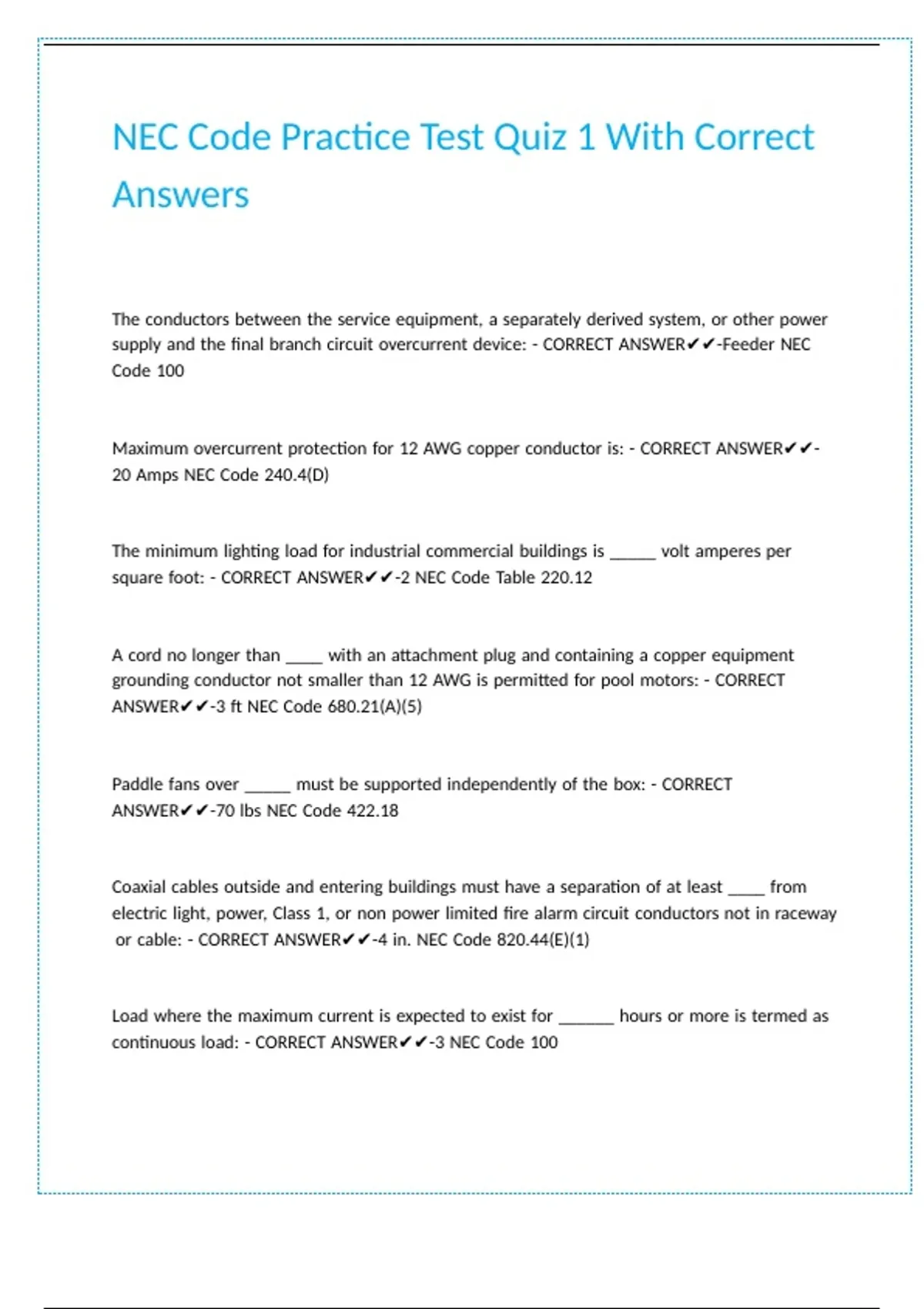

NEC Code Practice Test Quiz 1 With Correct
Answers
The |conductors |between |the |service |equipment, |a |separately |derived |system, |or |other |power |
supply |and |the |final |branch |circuit |overcurrent |device: |- |CORRECT |ANSWER✔✔-Feeder |NEC |
Code |100
Maximum |overcurrent |protection |for |12 |AWG |copper |conductor |is: |- |CORRECT |ANSWER✔✔-
20 |Amps |NEC |Code |240.4(D)
The |minimum |lighting |load |for |industrial |commercial |buildings |is |_____ |volt |amperes |per |
square |foot: |- |CORRECT |ANSWER✔✔-2 |NEC |Code |Table |220.12
A |cord |no |longer |than |____ |with |an |attachment |plug |and |containing |a |copper |equipment |
grounding |conductor |not |smaller |than |12 |AWG |is |permitted |for |pool |motors: |- |CORRECT |
ANSWER✔✔-3 |ft |NEC |Code |680.21(A)(5)
Paddle |fans |over |_____ |must |be |supported |independently |of |the |box: |- |CORRECT |
ANSWER✔✔-70 |lbs |NEC |Code |422.18
Coaxial |cables |outside |and |entering |buildings |must |have |a |separation |of |at |least |____ |from |
electric |light, |power, |Class |1, |or |non |power |limited |fire |alarm |circuit |conductors |not |in |raceway
|or |cable: |- |CORRECT |ANSWER✔✔-4 |in. |NEC |Code |820.44(E)(1)
Load |where |the |maximum |current |is |expected |to |exist |for |______ |hours |or |more |is |termed |as |
continuous |load: |- |CORRECT |ANSWER✔✔-3 |NEC |Code |100
