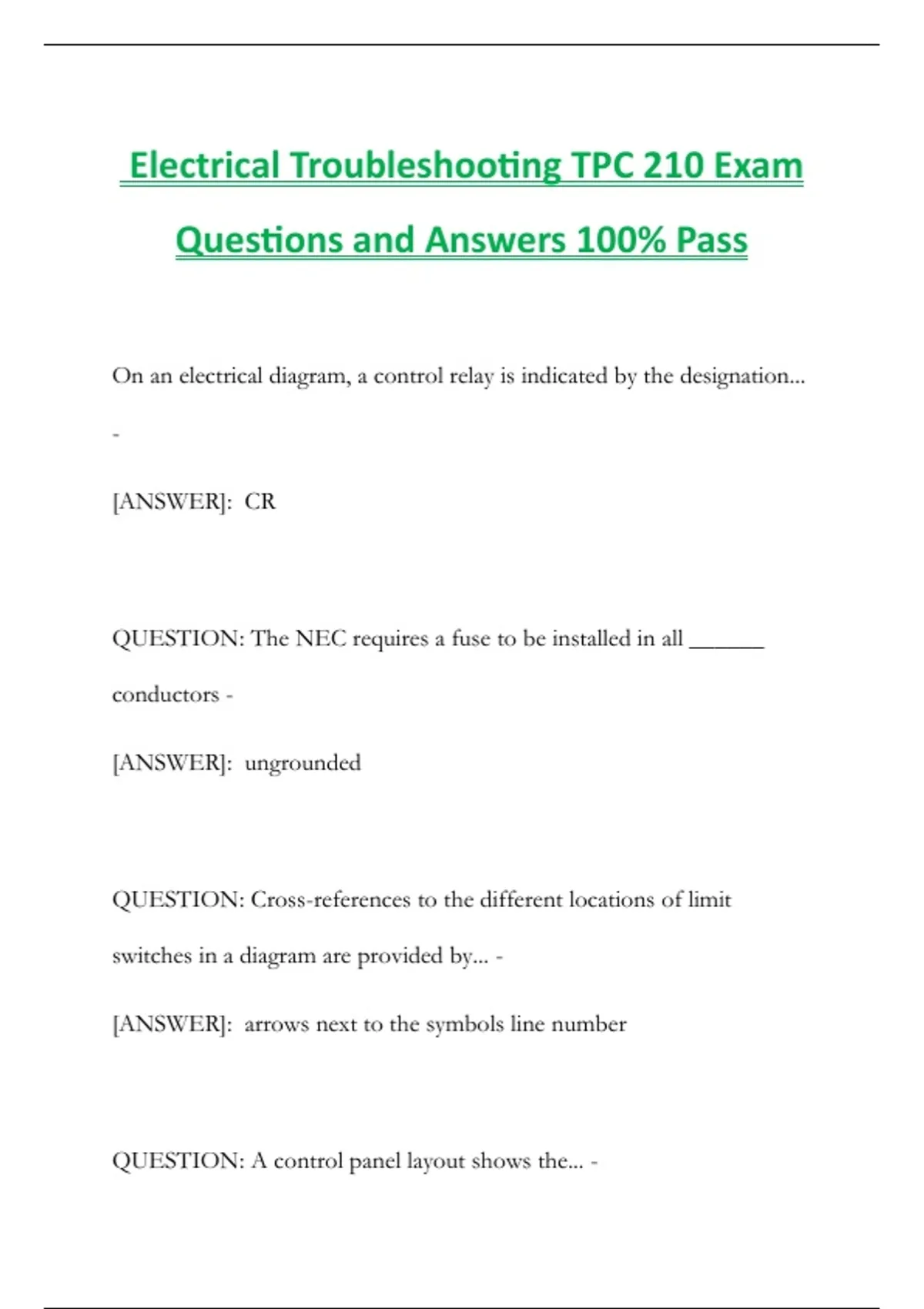

Electrical Troubleshooting TPC 210 Exam
Questions and Answers 100% Pass
On an electrical diagram, a control relay is indicated by the designation...
-
[ANSWER]: CR
QUESTION: The NEC requires a fuse to be installed in all ______
conductors -
[ANSWER]: ungrounded
QUESTION: Cross-references to the different locations of limit
switches in a diagram are provided by... -
[ANSWER]: arrows next to the symbols line number
QUESTION: A control panel layout shows the... -
, [ANSWER]: physical arrangement of all components
QUESTION: A sequence of operation is used with... -
[ANSWER]: an elementary diagram
QUESTION: A riser diagram shows the... -
[ANSWER]: power distribution wiring from input through output
QUESTION: On a blueprint, wall outlets are indicated by a circle with...
-
[ANSWER]: a short line drawn to it
QUESTION: In addition to the locations of lighting and lighting panels,
lighting diagrams show the locations of... -
[ANSWER]: telephone outlets
Questions and Answers 100% Pass
On an electrical diagram, a control relay is indicated by the designation...
-
[ANSWER]: CR
QUESTION: The NEC requires a fuse to be installed in all ______
conductors -
[ANSWER]: ungrounded
QUESTION: Cross-references to the different locations of limit
switches in a diagram are provided by... -
[ANSWER]: arrows next to the symbols line number
QUESTION: A control panel layout shows the... -
, [ANSWER]: physical arrangement of all components
QUESTION: A sequence of operation is used with... -
[ANSWER]: an elementary diagram
QUESTION: A riser diagram shows the... -
[ANSWER]: power distribution wiring from input through output
QUESTION: On a blueprint, wall outlets are indicated by a circle with...
-
[ANSWER]: a short line drawn to it
QUESTION: In addition to the locations of lighting and lighting panels,
lighting diagrams show the locations of... -
[ANSWER]: telephone outlets
