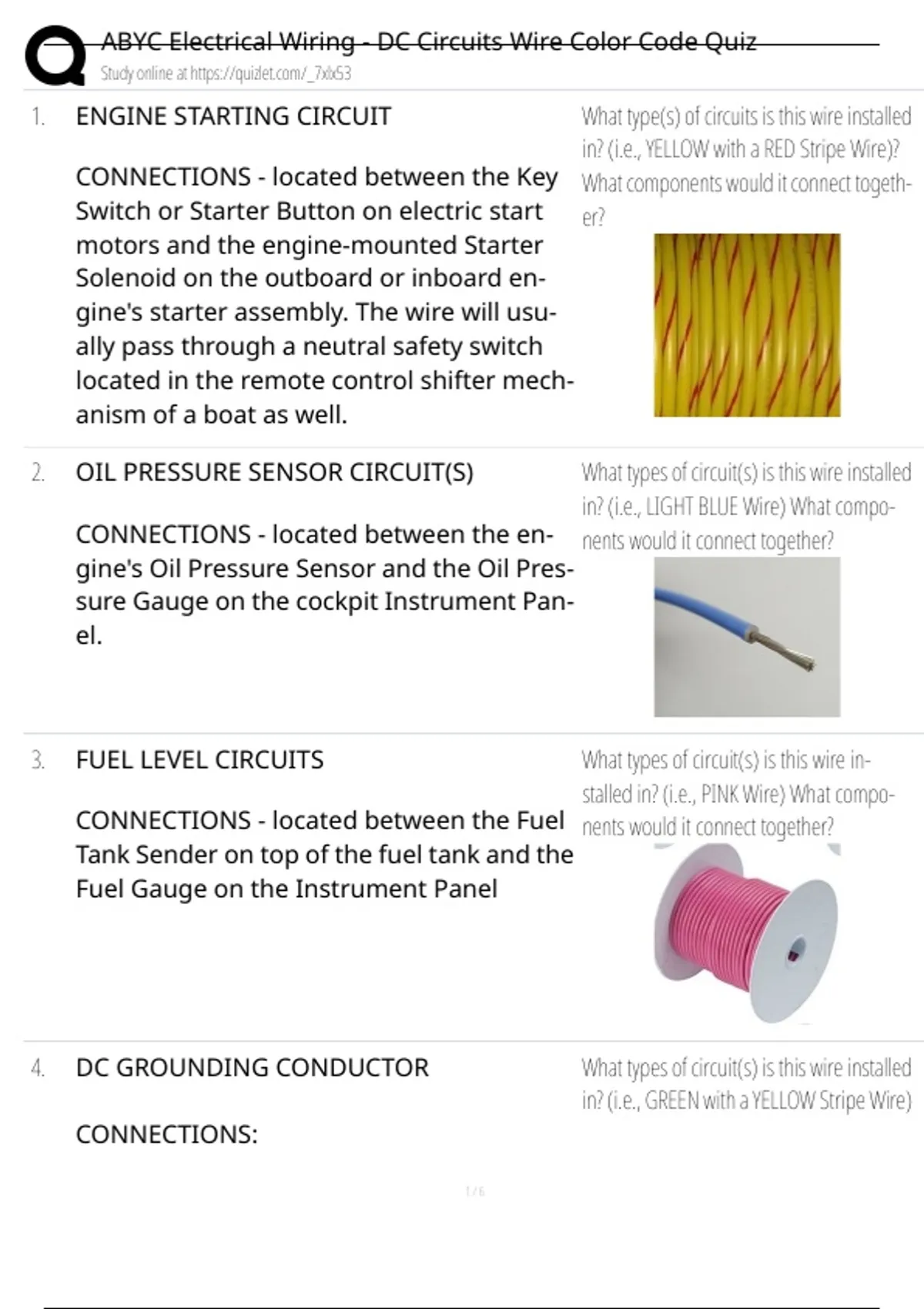

ABYC Electrical Wiring - DC Circuits Wire Color Code Quiz
Study online at https://quizlet.com/_7xlx53
1. ENGINE STARTING CIRCUIT What type(s) of circuits is this wire installed
in? (i.e., YELLOW with a RED Stripe Wire)?
CONNECTIONS - located between the Key What components would it connect togeth-
Switch or Starter Button on electric start er?
motors and the engine-mounted Starter
Solenoid on the outboard or inboard en-
gine's starter assembly. The wire will usu-
ally pass through a neutral safety switch
located in the remote control shifter mech-
anism of a boat as well.
2. OIL PRESSURE SENSOR CIRCUIT(S) What types of circuit(s) is this wire installed
in? (i.e., LIGHT BLUE Wire) What compo-
CONNECTIONS - located between the en- nents would it connect together?
gine's Oil Pressure Sensor and the Oil Pres-
sure Gauge on the cockpit Instrument Pan-
el.
3. FUEL LEVEL CIRCUITS What types of circuit(s) is this wire in-
stalled in? (i.e., PINK Wire) What compo-
CONNECTIONS - located between the Fuel nents would it connect together?
Tank Sender on top of the fuel tank and the
Fuel Gauge on the Instrument Panel
4. DC GROUNDING CONDUCTOR What types of circuit(s) is this wire installed
in? (i.e., GREEN with a YELLOW Stripe Wire)
CONNECTIONS:
1/6
, ABYC Electrical Wiring - DC Circuits Wire Color Code Quiz
Study online at https://quizlet.com/_7xlx53
1. In electrical inter-connections between Where would you install it or expect to see
all metallic items that are connected to the it installed on a boat?
boat's hull or through-hull fittings and the
lighting arrestor mounted on the top deck
of a boat.
2. On any intra-engine or intra-transmis-
sion bonding wires that are located below
the deck in a boat and must have insulated
wire to prevent arcing and sparking that
could cause vapors to ignite or explode.
5. GENERATOR ARMATURES, ALTERNATOR What types of circuit(s) is this wire installed
CHARGE LIGHTS, and LIQUID PUMPS (e.g., in? (i.e., BROWN or DARK BROWN Wire)
Bilge, Hydraulic, Fuel, Water, Sewage Pump What components would it connect togeth-
Out) er?
CONNECTIONS:
1. Between the Generator Armature and
the Voltage Regulator
2. Between the Generator or Alternator and
the warning light on Instrument Panel
3. Between any Fuses or Switches that are
in the circuits going to Pumps
6. NAVIGATION LIGHTS & TACHOMETER What types of circuit(s) is this wire installed
in? (i.e., GRAY or DARK GRAY Wire) What
CONNECTIONS: components would it connect together?
1. Between Fuses or Switches that are in the
circuits going to Navigation Lights.
2. Between Engine Tachometer Sensor(s)
and Instrument Panel Mounted Tachome-
ter Gauges in the cockpit.
2/6
