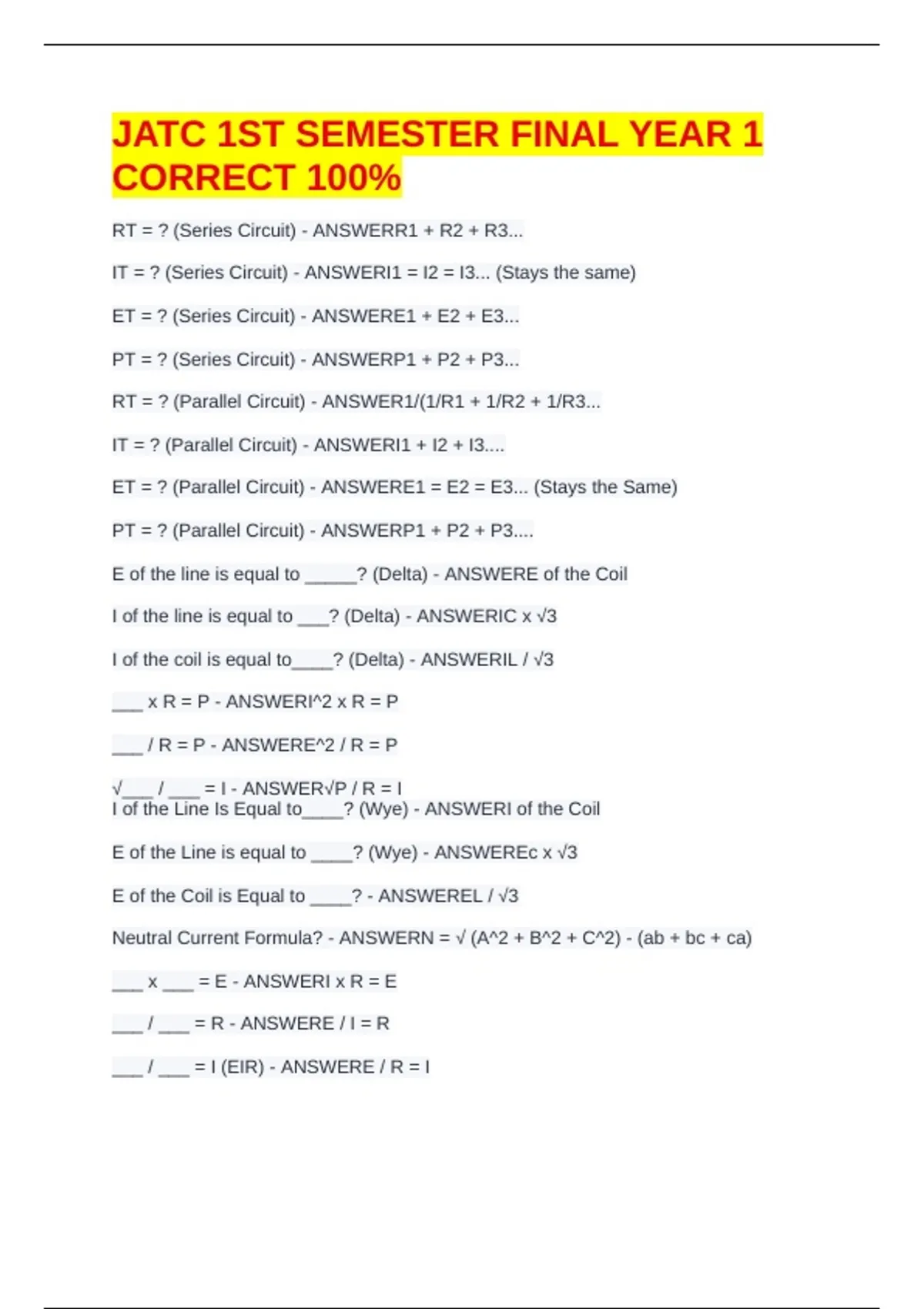

JATC 1ST SEMESTER FINAL YEAR 1
CORRECT 100%
RT = ? (Series Circuit) - ANSWERR1 + R2 + R3...
IT = ? (Series Circuit) - ANSWERI1 = I2 = I3... (Stays the same)
ET = ? (Series Circuit) - ANSWERE1 + E2 + E3...
PT = ? (Series Circuit) - ANSWERP1 + P2 + P3...
RT = ? (Parallel Circuit) - ANSWER1/(1/R1 + 1/R2 + 1/R3...
IT = ? (Parallel Circuit) - ANSWERI1 + I2 + I3....
ET = ? (Parallel Circuit) - ANSWERE1 = E2 = E3... (Stays the Same)
PT = ? (Parallel Circuit) - ANSWERP1 + P2 + P3....
E of the line is equal to _____? (Delta) - ANSWERE of the Coil
I of the line is equal to ___? (Delta) - ANSWERIC x √3
I of the coil is equal to____? (Delta) - ANSWERIL / √3
___ x R = P - ANSWERI^2 x R = P
___ / R = P - ANSWERE^2 / R = P
√___ / ___ = I - ANSWER√P / R = I
I of the Line Is Equal to____? (Wye) - ANSWERI of the Coil
E of the Line is equal to ____? (Wye) - ANSWEREc x √3
E of the Coil is Equal to ____? - ANSWEREL / √3
Neutral Current Formula? - ANSWERN = √ (A^2 + B^2 + C^2) - (ab + bc + ca)
___ x ___ = E - ANSWERI x R = E
___ / ___ = R - ANSWERE / I = R
___ / ___ = I (EIR) - ANSWERE / R = I
