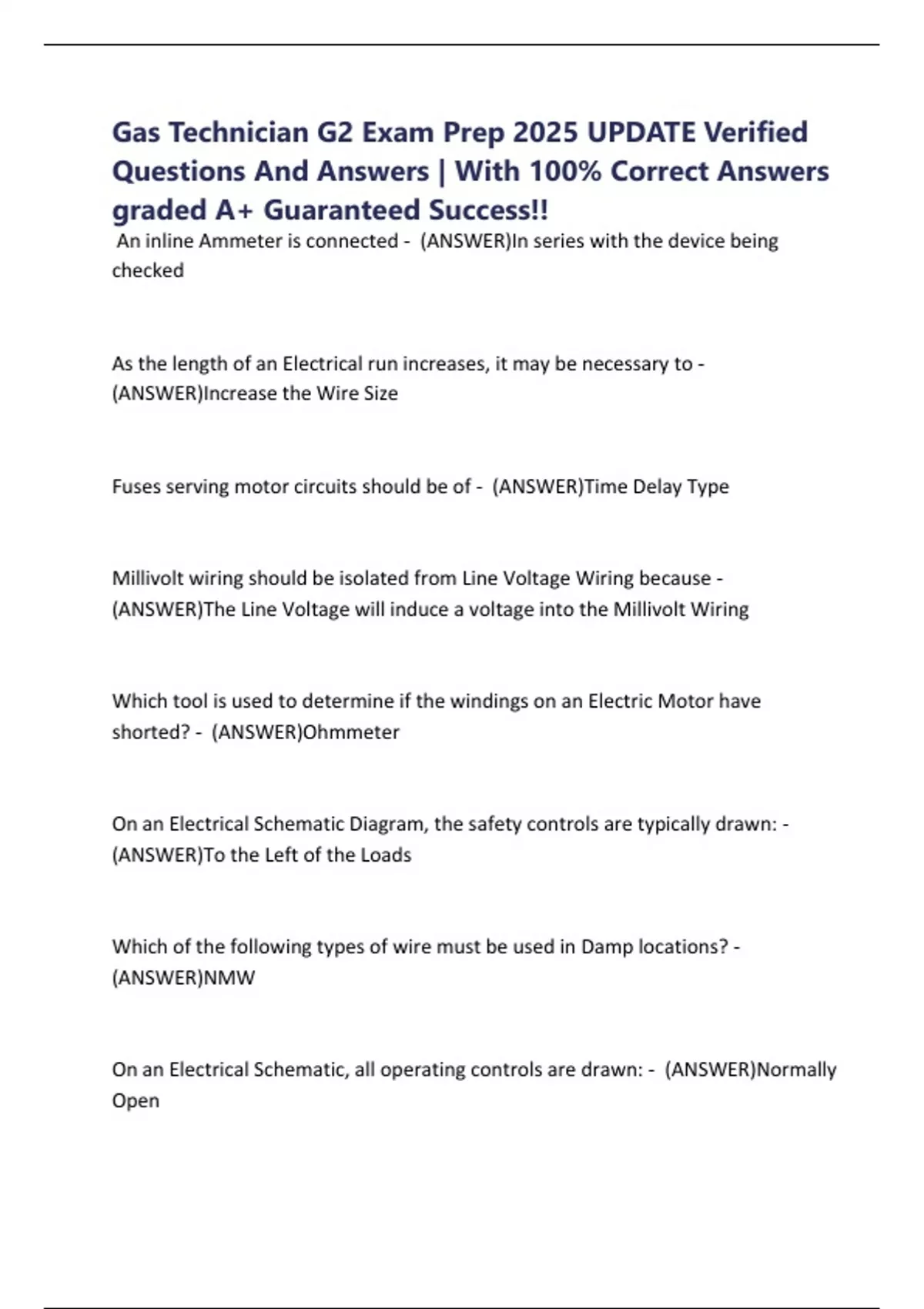

Gas Technician G2 Exam Prep 2025 UPDATE Verified
Questions And Answers | With 100% Correct Answers
graded A+ Guaranteed Success!!
An inline Ammeter is connected - (ANSWER)In series with the device being
checked
As the length of an Electrical run increases, it may be necessary to -
(ANSWER)Increase the Wire Size
Fuses serving motor circuits should be of - (ANSWER)Time Delay Type
Millivolt wiring should be isolated from Line Voltage Wiring because -
(ANSWER)The Line Voltage will induce a voltage into the Millivolt Wiring
Which tool is used to determine if the windings on an Electric Motor have
shorted? - (ANSWER)Ohmmeter
On an Electrical Schematic Diagram, the safety controls are typically drawn: -
(ANSWER)To the Left of the Loads
Which of the following types of wire must be used in Damp locations? -
(ANSWER)NMW
On an Electrical Schematic, all operating controls are drawn: - (ANSWER)Normally
Open
,As the length of a Conductor Increases, the Voltage Drop along the Conductor: -
(ANSWER)Increases
When a new appliance is to be installed in a typical residential basement and the
Supply Wiring to it is concealed, which of the following types of wire is
acceptable, and most cost effective - (ANSWER)NMD
When checking a circuit of unknown Voltage using an analog meter with 0-30V, 0-
125V, 0-250V, and 0-600V, which scale should be selected - (ANSWER)0-600V
A 120 Volt Power Supply for a residential Electrical Circuit is taken from the: -
(ANSWER)Load side of one branch circuit breaker and a Neutral Plug
A receptacle mounted Ground Fault Circuit Interrupted protects against: -
(ANSWER)Current Flow to Ground
An Electrical Pictorial Diagram is used to: - (ANSWER)Show component location
When using an Ohmmeter, the most important thing to remember is to: -
(ANSWER)De-engerize the Circuit
A zero Ohmmeter reading taken between the casing of a Solenoid and a
disconnected Wire to the Solenoid indicates that - (ANSWER)The coil is shorted
to the casing of the device
,The instrument used to determine Potential Difference in an Electrical Circuit is
the: - (ANSWER)Voltmeter
When the Voltage has been determine to be approximately 120 volts, which scale
on an analog meter should be selected for most accuracy? - (ANSWER)0-250
Volts
The resistance of a Thermistor... as its temperature rises - (ANSWER)Decreases
A Hot Surface Igniter requires how many volts to operate properly ? -
(ANSWER)115 to 125 VAC
It is permissible to use gas piping as an Electrical Ground if: - (ANSWER)It is used
in the Flame Safeguard Circuit
A Thermopile or Powerpile generates: - (ANSWER)Hundreds of Millivolts
How is the Heat Anticipator setting determined for a Thermostat with an
adjustable Anticipator? - (ANSWER)By measuring the current drawn by the
components in the circuit being feed directly by the Thermostat
A Fan Control is a: - (ANSWER)Normally Open Temperature Control that Closes
on Temperature Rise
, As the temperature of a Thermistor increases, the Current Flow through it... -
(ANSWER)Increases
A Thermostat with a Single Mercury Bulb which controls a Single Stage Heat,
Single Stage Cool unit is a... control - (ANSWER)SPDT (Single Pole Double Throw)
A Thermostat serving a unit which has separate Heating and Cooling Control
transformers and has One Stage of Heating and One Stage of Cooling is a... control
- (ANSWER)DPDT (Double Pole Double Throw)
Separate Heating and Cooling, therefore Double Pole and Double Stage for
Heating and Cooling therefore Double Throw. Which of the following heating
systems would be expected to cause problems due to the "Distribution Effect"? -
(ANSWER)A Forced Air Furnace with a return air opening in the furnace room
The recommended range of Relative Humidity in a house to control Indoor Air
Contaminates, increase comfort, and maintain the structural integrity of the
house is: - (ANSWER)30% - 50%
From the following list, which action will have the greatest effect on reducing
mold growth in a house? - (ANSWER)Covering earthen floors and open water
surfaces (stumps, aquariums etc.) Open stumps and earth floors and will
introduce a ton of humidity into the house
