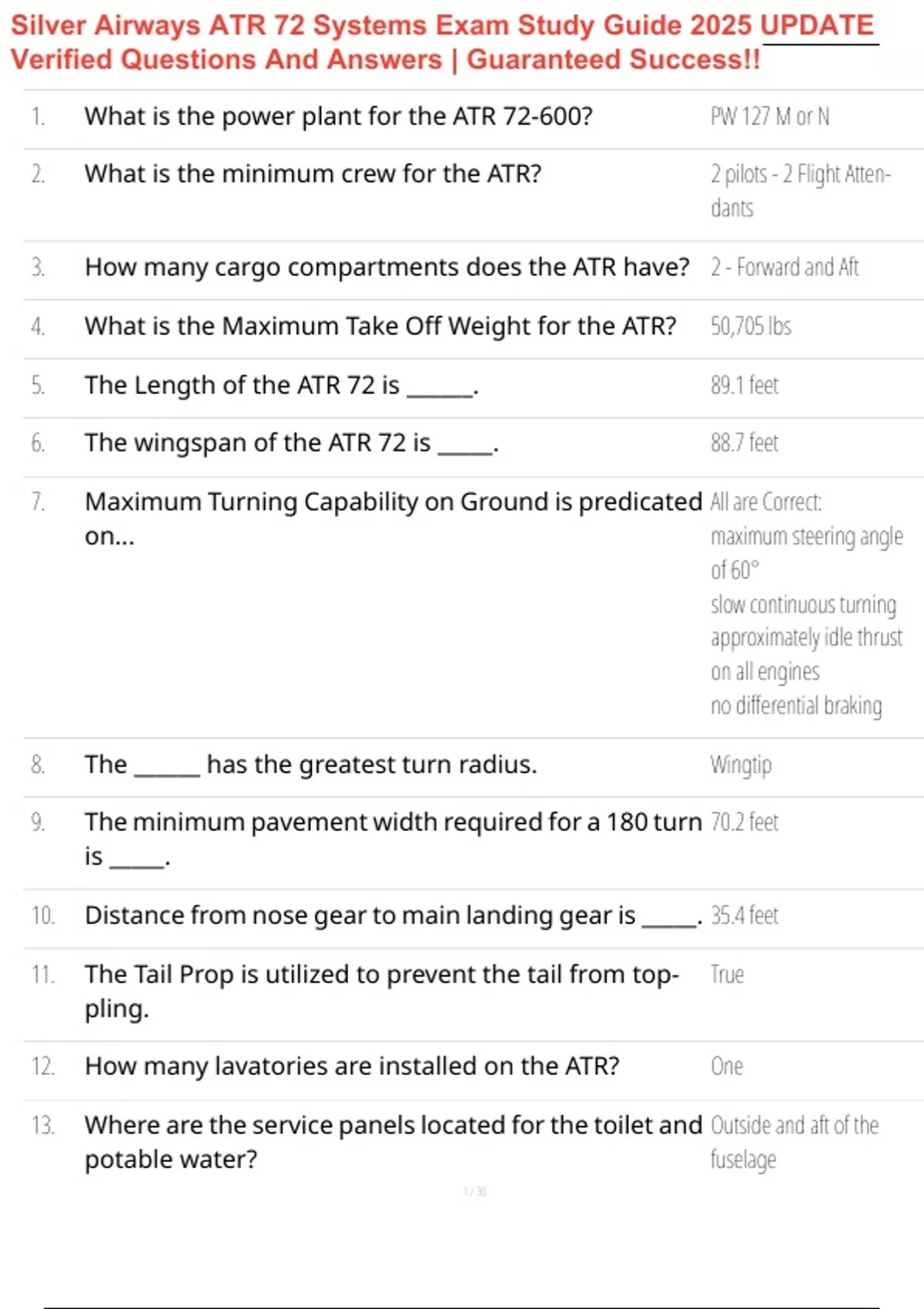

Silver Airways ATR 72 Systems Exam Study Guide 2025 UPDATE
Silver Airways ATR 72 Systems Exam Study Guide
VerifiedStudyQuestions And Answers | Guaranteed Success!!
online at https://quizlet.com/_hh2ayk
1. What is the power plant for the ATR 72-600? PW 127 M or N
2. What is the minimum crew for the ATR? 2 pilots - 2 Flight Atten-
dants
3. How many cargo compartments does the ATR have? 2 - Forward and Aft
4. What is the Maximum Take Off Weight for the ATR? 50,705 lbs
5. The Length of the ATR 72 is ______. 89.1 feet
6. The wingspan of the ATR 72 is _____. 88.7 feet
7. Maximum Turning Capability on Ground is predicated All are Correct:
on... maximum steering angle
of 60°
slow continuous turning
approximately idle thrust
on all engines
no differential braking
8. The ______ has the greatest turn radius. Wingtip
9. The minimum pavement width required for a 180 turn 70.2 feet
is _____.
10. Distance from nose gear to main landing gear is _____. 35.4 feet
11. The Tail Prop is utilized to prevent the tail from top- True
pling.
12. How many lavatories are installed on the ATR? One
13. Where are the service panels located for the toilet and Outside and aft of the
potable water? fuselage
, Silver Airways ATR 72 Systems Exam Study Guide
Study online at https://quizlet.com/_hh2ayk
14. The toilet water is drained directly outside the aircraft. False
15. For proper seat positioning, how does the pilot use the Respective white ball is
Seat Position Sight Gauge? obscured by the red one
16. The SW TEST push button on the Doors Control Panel Test door micro switches
function is to: in cabin and service door
17. The maximum crosswind in which the cargo door can 45 knots
be operated is:
18. How many emergency exits does the ATR 72-600 have 4
in the cabin?
19. Cockpit philosophy for normal operation is: Dark or not illuminated
20. How many Halon portable fire extinguishers are in the 1 for the cockpit and 2 for
aircraft? the cabin
21. How many PBE are in the aircraft? 1 for the cockpit and 3 for
the cabin
22. The Emergency Locator Transmitter (ELT) transmits 121.5 MHz, 243 MHz and
distress signals on: 406 MHz
23. The MIP/PED switch controls the integral lights for Main Instrument Panel
which panels? and Center Pedestal.
24. Other than the TEST position, the annunciator lights True
have only two display selections available; DIM for
night, and BRT for day.
25. The STORM light switch turns on the ______________. Flood lights to illuminate
the main instrument panel
, Silver Airways ATR 72 Systems Exam Study Guide
Study online at https://quizlet.com/_hh2ayk
and pedestal, and all main
panel integral lighting.
26. The lights available on the DC EMERG BUS are Left side Main Instrument
____________. Panel FLOOD light, center
pedestal FLOOD light, and
the right Dome light.
27. The ice evidence probe is automatically illuminated Nav
with the __________ switch is turned on.
28. The WING lights illuminate the wing leading edge and True
engine air intake on each side of the aircraft to aid in
checking for ice buildup.
29. The TAXI and T.O. lights are __________. mounted to the
non-steerable portion of
the nose strut.
30. The STROBE lights __________. consist of three strobo-
scopic white lights; one on
each wing tip, and one on
the tailcone.
31. The emergency lights will come on automatically The DC STBY bus is below
when the toggle switch is in the arm position if: 18V or both DC GEN are
offline.
32. If the DC STBY BUS fails, the integral batteries will 10 minutes.
power the emergency lights system for:
33. How many Oxygen Bottles are installed on the ATR? 4. One cylinder for the
main distribution system,
