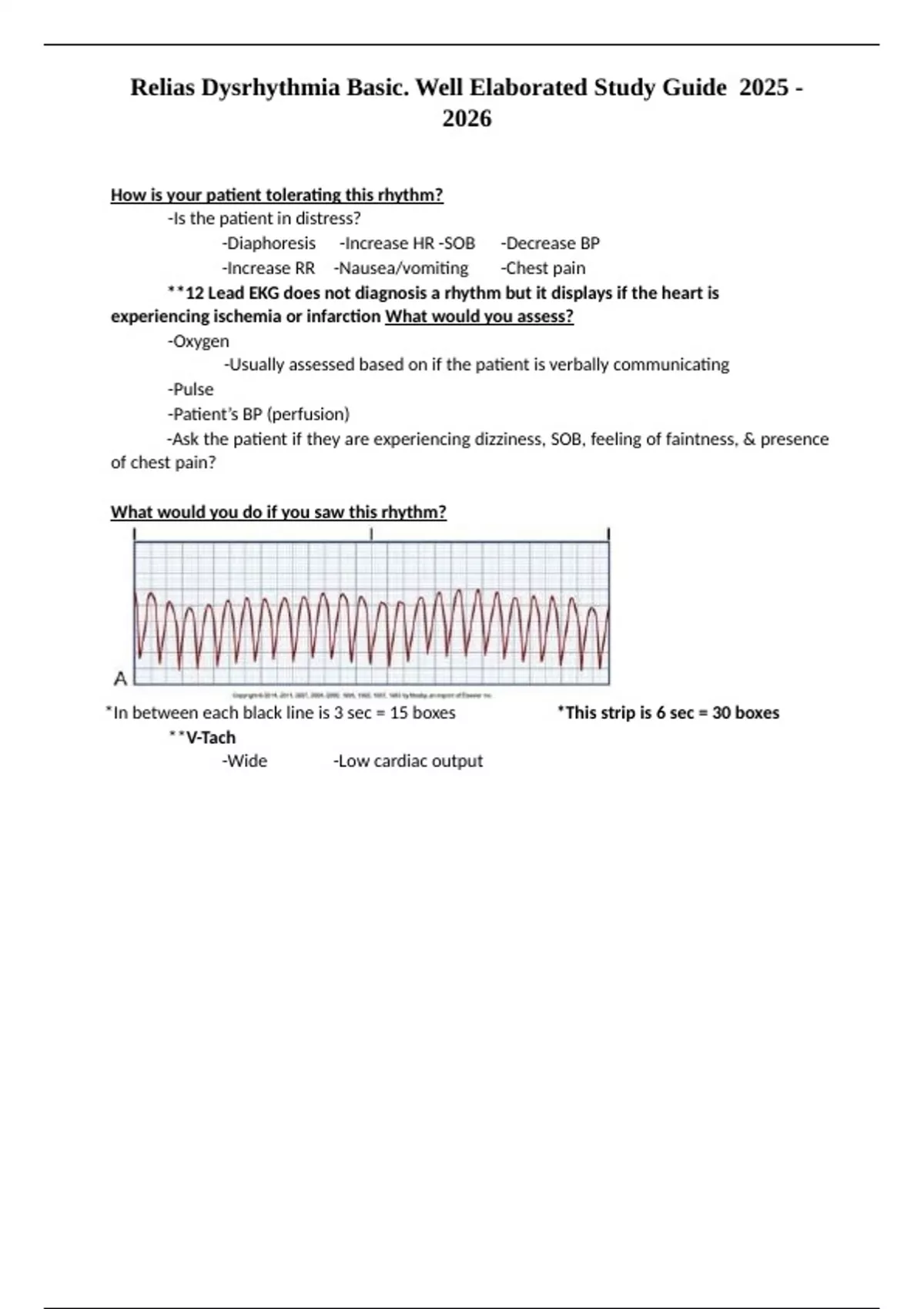

How is your patient tolerating this rhythm?
-Is the patient in distress?
-Diaphoresis -Increase HR -SOB -Decrease BP
-Increase RR -Nausea/vomiting -Chest pain
**12 Lead EKG does not diagnosis a rhythm but it displays if the heart is
experiencing ischemia or infarction What would you assess?
-Oxygen
-Usually assessed based on if the patient is verbally communicating
-Pulse
-Patient’s BP (perfusion)
-Ask the patient if they are experiencing dizziness, SOB, feeling of faintness, & presence
of chest pain?
What would you do if you saw this rhythm?
*In between each black line is 3 sec = 15 boxes *This strip is 6 sec = 30 boxes
**V-Tach
-Wide -Low cardiac output
, Relias Dysrhythmia Basic. Well Elaborated Study Guide 2025 -
2026
Conduction System of the Heart
-SA Node: Pacemaker of the heart
-Spreads electrical impulses to the left and right atrium (atrial depolarization) & pauses
at the AV node
-Inferior wall MI is notorious
-AV Node: Atrial contraction occurs
-Atrial depolarization (represented by the p wave) = 0.12-0.20ms
-Mechanical contraction of the atrium (represented by a present pulse)
-Ventricle depolarization: Represented by the QRS wave = < 0.10ms
-Ventricle Repolarization: Represented by the T wave
-Ischemia = Right & left bundle branch block = wider QRS > 0.10ms = V-Tach
**Telemetry strip = 12 images of the heart
***Demonstrating electrical current moving towards the leads (action potential). Cells
are needed to transmit the action potential in order to have a contraction.
, Relias Dysrhythmia Basic. Well Elaborated Study Guide 2025 -
2026
**Blood Pressure represents atrial and ventricle squeeze = cardiac output -
Decent BP: 110/70
-Concerning BP: Systolic < 90
-Ex: 80/50
Electrocardiogram Monitoring
1. The P wave represents time for the passage of the electrical impulse through the
atrium causing atrial depolarization (contraction).
2. The P-R interval is measured from the beginning of the P wave to the beginning of the
QRS complex. It represents the time taken for the impulse to spread through the atria,
AV node, and bundle of His; the bundle branches; and Purkinje fibers to a point
immediately preceding ventricular contraction.
*Takes 0.12-0.20ms = 3-5 little boxes
3. The QRS complex consists of three distinct waves.
-The Q wave is the first negative (downward) deflection after the P wave, short and
narrow, and not present in several leads.
-The R wave is the first positive (upward) deflection in the QRS complex -
S wave is the first negative (downward) deflection after the R wave.
*The QRS interval is measured from the beginning to the end of the QRS complex. It
represents the time
Taken for depolarization (contraction) of both ventricles (systole).
