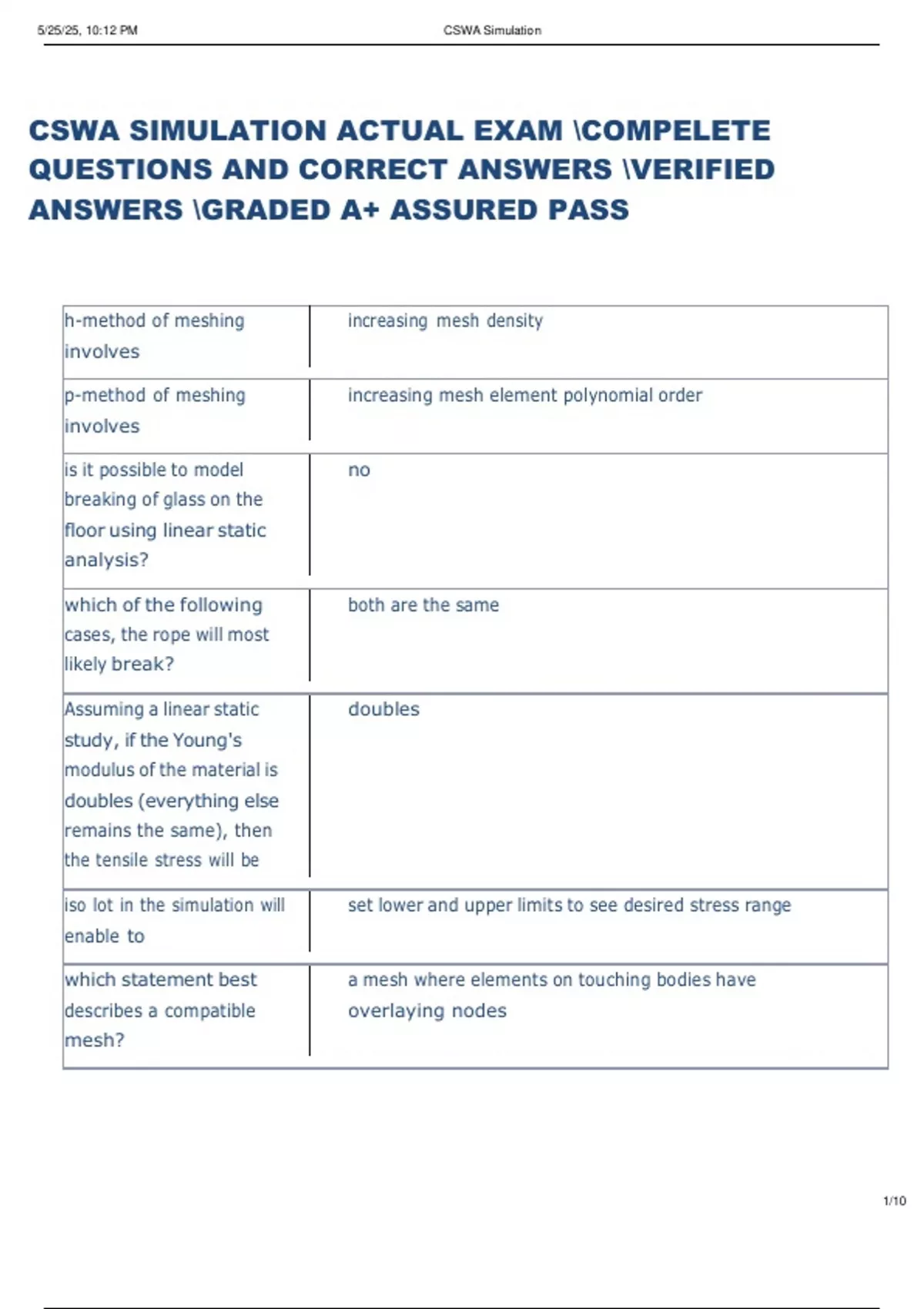

CSWA SIMULATION ACTUAL EXAM \COMPELETE
QUESTIONS AND CORRECT ANSWERS \VERIFIED
ANSWERS \GRADED A+ ASSURED PASS
h-method of meshing increasing mesh density
involves
p-method of meshing increasing mesh element polynomial order
involves
is it possible to model no
breaking of glass on the
floor using linear static
analysis?
which of the following both are the same
cases, the rope will most
likely break?
Assuming a linear static doubles
study, if the Young's
modulus of the material is
doubles (everything else
remains the same), then
the tensile stress will be
iso lot in the simulation will set lower and upper limits to see desired stress range
enable to
which statement best a mesh where elements on touching bodies have
describes a compatible overlaying nodes
mesh?
1/10
, 5/25/25, 10:12 PM CSWA Simulation
maximum and minimum true
value indicators are
displayed on stress and
displacement plots in
SOLIDWORKS simulation
for a linear static study
what SOLIDWORKS probe tool
simulation tool should you
use to determine the
result values at specific
locations (nodes) in a
model using
SOLIDWORKS simulation?
what criteria are best maximum von Mises stress and maximum shear stress
suited to check the failure criterion
of ductile materials in
SOLIDWORKS simulation?
what is the modulus of the slope of the stress-strain curve in its linear section
elasticity?
a measure of average amount of force exerted per
what is stress?
unit area
which of the following 1. inertia effects are negligible and loads are applied
assumptions are true for a slowly
static analysis in 2. all the displacements are small relative to the model
SOLIDWORKS simulation geometry
with small displacements? 3. results are proportional to loads
the stress level beyond which the material becomes
what is yield stress?
plastic
a high-quality shell 6
element has ___ nodes.
stress is proportional to strain
_ ____ in linear elastic
material.
2/10
