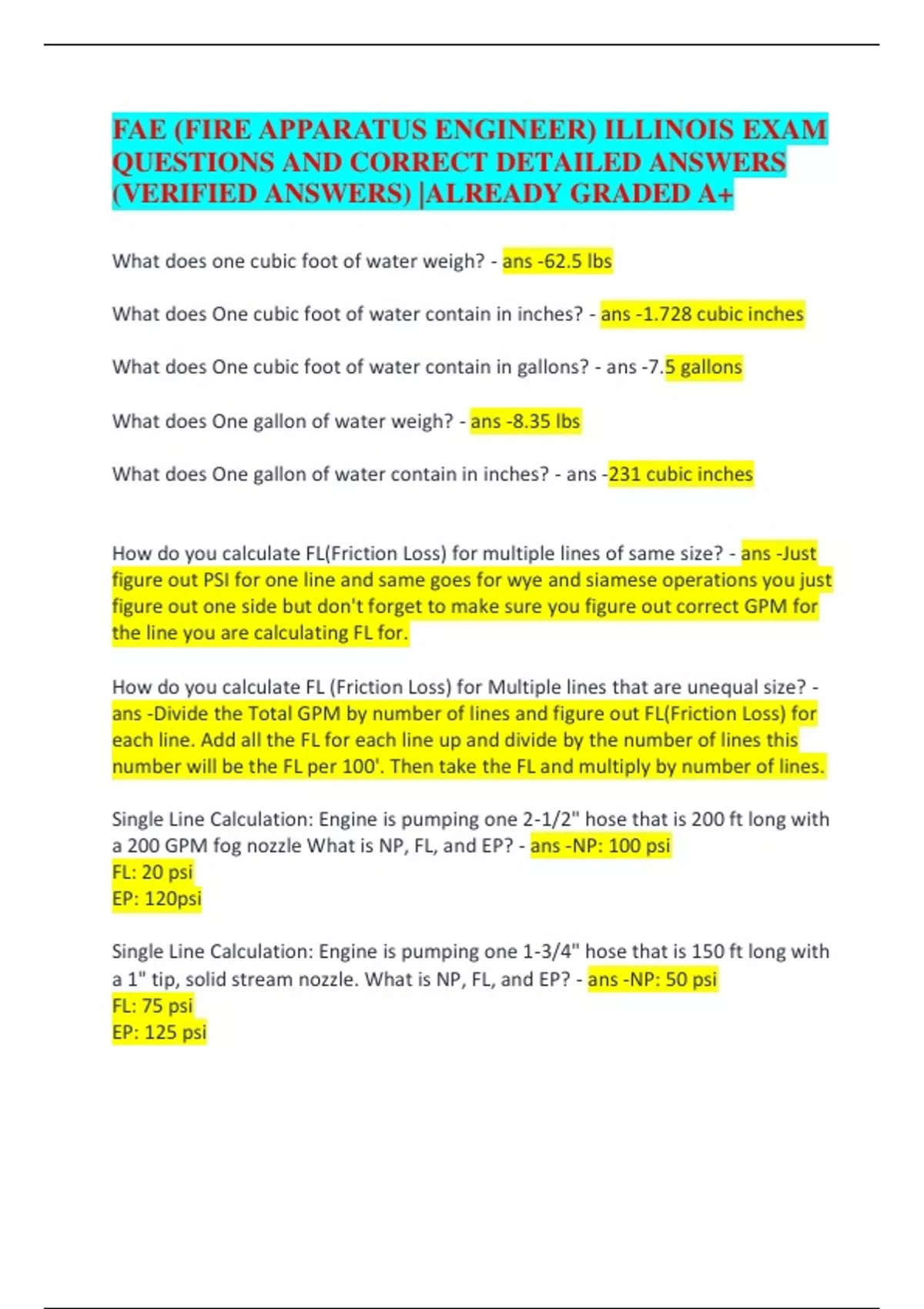

FAE (FIRE APPARATUS ENGINEER) ILLINOIS EXAM
QUESTIONS AND CORRECT DETAILED ANSWERS
(VERIFIED ANSWERS) |ALREADY GRADED A+
What does one cubic foot of water weigh? - ans -62.5 lbs
What does One cubic foot of water contain in inches? - ans -1.728 cubic inches
What does One cubic foot of water contain in gallons? - ans -7.5 gallons
What does One gallon of water weigh? - ans -8.35 lbs
What does One gallon of water contain in inches? - ans -231 cubic inches
How do you calculate FL(Friction Loss) for multiple lines of same size? - ans -Just
figure out PSI for one line and same goes for wye and siamese operations you just
figure out one side but don't forget to make sure you figure out correct GPM for
the line you are calculating FL for.
How do you calculate FL (Friction Loss) for Multiple lines that are unequal size? -
ans -Divide the Total GPM by number of lines and figure out FL(Friction Loss) for
each line. Add all the FL for each line up and divide by the number of lines this
number will be the FL per 100'. Then take the FL and multiply by number of lines.
Single Line Calculation: Engine is pumping one 2-1/2" hose that is 200 ft long with
a 200 GPM fog nozzle What is NP, FL, and EP? - ans -NP: 100 psi
FL: 20 psi
EP: 120psi
Single Line Calculation: Engine is pumping one 1-3/4" hose that is 150 ft long with
a 1" tip, solid stream nozzle. What is NP, FL, and EP? - ans -NP: 50 psi
FL: 75 psi
EP: 125 psi
,Single Line Calculation: Engine is pumping one 3" hose 1000 ft long with a 1-1/4"
tip, Solid Stream nozzle. What is NP, FL, and EP? - ans -NP: 50 psi
FL: 80 psi
EP: 130 psi
Wye Hose Line Calculation: An Engine is pumping a 3" line 300 ft long which is
wyed into two 1-1/2" lines each 150 ft long. Each 1-1/2 line has a 100 GPM fog
nozzle. What is NP, FL, Device pressure, EP? - ans -NP: 100psi
FL: 57psi
Device: 10psi
EP: 167psi
Wye Hose line calculation: An engine is pumping a 4" line 300 ft long which is
wyed into two 3" lines each 200 ft long which are into deluge sets each with a 1-
1/4" time (S.S. nozzle). What is NP, FL, Device Pressure, and EP? - ans -NP: 80psi
FL: 70psi
Device: 30psi
EP: 180 psi
Wyed Hose Line calculation: An engine is pumping a 2-1/2" line 300 ft long which
is wyed into two 1-3/4" lines each 100 ft. long. Each 1-3/4" line has a 150 GPM fog
nozzle. What is the NP, FL, Device pressure, and EP? - ans -NP: 100psi
FL: 95psi
Device: 10psi
EP: 205 psi
Siamese Hose line calculation: An engine is pumping two 2-1/2" lines each 200 ft
long which are siamese into one 2-1/2" line 100 ft long. the 2-1/2" line has 1-1/4"
tip (Solid Stream nozzle). What is the NP, FL, Device pressure, and EP? - ans -NP:
50psi
FL: 33psi
Device: 10psi
EP: 93psi
Siamese Hose Line Calculation: An engine is pumping 2 lines. One 2-1/2" line and
one 3" line each 400 ft. long which are siamese into a 3" line 100 ft long to a
, deluge set with a 1-1/2" tip(solid stream nozzle). What is the NP, FL, Device
pressure, and EP? - ans -NP: 80 psi
FL: 91 psi
Device: 30 psi
EP: 201 psi
Siamese Hose Line Calculation: An engine is pumping three 2-1/2" lines each 500
ft long which are siamese into one 2-1/2" line 200 ft long which supplies a 1-1/4"
tip (solid stream nozzle) - ans -NP: 50 psi
FL: 57 psi
Device: 10 psi
EP: 117
Relaying Hose Line Calculation: Engine A is supplying engine B through one 3" line
500 ft. long. Engine B is pumping 500 GPM. What is Engine A's Resid/NP, FL,
Device, and EP? - ans -Resid/NP: 20 psi
FL: 110 psi
Device: --
EP: 130 psi
Relaying Hose Line Calculation: Engine A is supplying engine B through two 3"
lines each 1000 ft. lone. Engine B is pumping two 2-1/2" lines each 200 ft long,
which are into a deluge set with a 1-1/2" s.s. tip nozzle. Engine A & Engine B.
What is Engine A's and B's Resid/NP, FL, Device, and EP? - ans -Engine A
Resid/NP: 20 psi
FL: 80 psi
Device: --
EP: 100 psi
Engine B
Resid/NP: 80 psi
FL: 42 psi
Device: 20 psi
EP: 142 psi
Relaying Hose Line Calculation: Engine A is supplying engine B through one 2-1/2"
and two 3" lines each 600 ft long. Engine B is pumping two 3" lines each 250 ft
