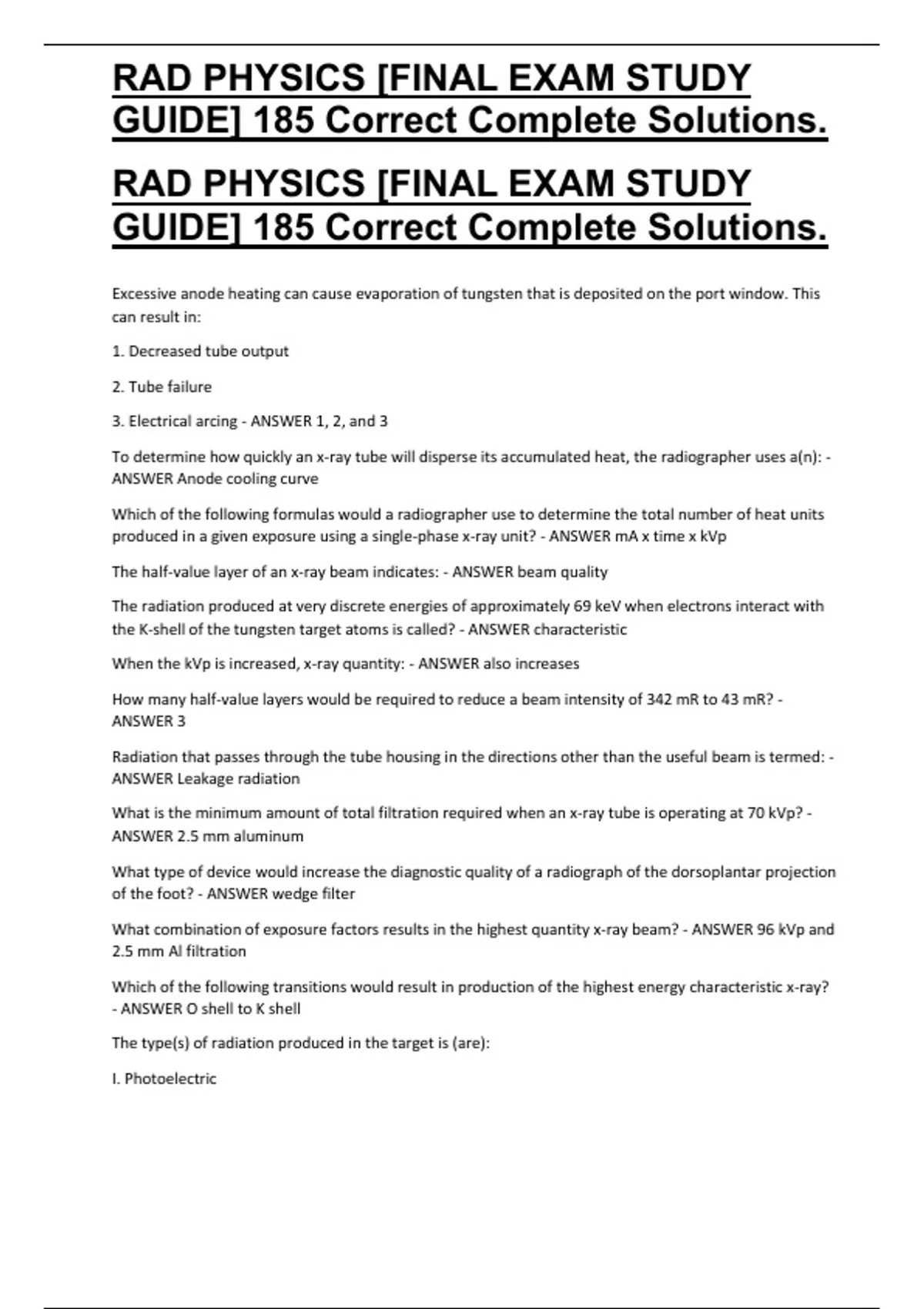

RAD PHYSICS [FINAL EXAM STUDY
GUIDE] 185 Correct Complete Solutions.
RAD PHYSICS [FINAL EXAM STUDY
GUIDE] 185 Correct Complete Solutions.
Excessive anode heating can cause evaporation of tungsten that is deposited on the port window. This
can result in:
1. Decreased tube output
2. Tube failure
3. Electrical arcing - ANSWER 1, 2, and 3
To determine how quickly an x-ray tube will disperse its accumulated heat, the radiographer uses a(n): -
ANSWER Anode cooling curve
Which of the following formulas would a radiographer use to determine the total number of heat units
produced in a given exposure using a single-phase x-ray unit? - ANSWER mA x time x kVp
The half-value layer of an x-ray beam indicates: - ANSWER beam quality
The radiation produced at very discrete energies of approximately 69 keV when electrons interact with
the K-shell of the tungsten target atoms is called? - ANSWER characteristic
When the kVp is increased, x-ray quantity: - ANSWER also increases
How many half-value layers would be required to reduce a beam intensity of 342 mR to 43 mR? -
ANSWER 3
Radiation that passes through the tube housing in the directions other than the useful beam is termed: -
ANSWER Leakage radiation
What is the minimum amount of total filtration required when an x-ray tube is operating at 70 kVp? -
ANSWER 2.5 mm aluminum
What type of device would increase the diagnostic quality of a radiograph of the dorsoplantar projection
of the foot? - ANSWER wedge filter
What combination of exposure factors results in the highest quantity x-ray beam? - ANSWER 96 kVp and
2.5 mm Al filtration
Which of the following transitions would result in production of the highest energy characteristic x-ray?
- ANSWER O shell to K shell
The type(s) of radiation produced in the target is (are):
I. Photoelectric
, RAD PHYSICS [FINAL EXAM STUDY
GUIDE] 185 Correct Complete Solutions.
II. Characteristic
III. Bremsstrahlung - ANSWER II and III
Anode angle will have an effect on the:
1. Severity of the anode heel effect
2. Effective focal spot size
3. Spatial resolution - ANSWER 1, 2, AND 3
Which of the following occurs during bremsstrahlung radiation production? - ANSWER An electron
approaching a positive nuclear charge changes direction and loses energy.
Which of the following constitutes the largest portion of the x-ray beam emerging from the target? -
ANSWER Bremsstrahlung
Which of the following will serve to increase the average energy of the x-ray beam?
1. Increase in added filtration
2. Increase in kilovoltage
3. Increase in milliamperage - ANSWER 1 and 2
Tungsten alloy is the usual choice for the anode target material of radiographic equipment because it:
1. Has a high atomic number
2. Has a high melting point
3. Can readily dissipate heat - ANSWER 1, 2, and 3
What is the advantage of the rotating anode over the stationary anode? - ANSWER Greater heat-loading
capacity
Filters used in x-ray tubes are generally made of: - ANSWER Aluminum
The federal standard for leakage radiation from an x-ray tube housing is: - ANSWER Less than 1mGy/h at
1 meter
When projectile electrons from a filament enters a target atom and interacts with the nuclear force
field, it will: - ANSWER decrease velocity
The area under the x-ray emission spectrum best represents: - ANSWER The total number of photons
emitted
The primary purpose of adding filtration to a diagnostic x-ray beam is to? - ANSWER Remove low energy
photons
Which of the following will affect both the quantity and quality of the primary beam?
