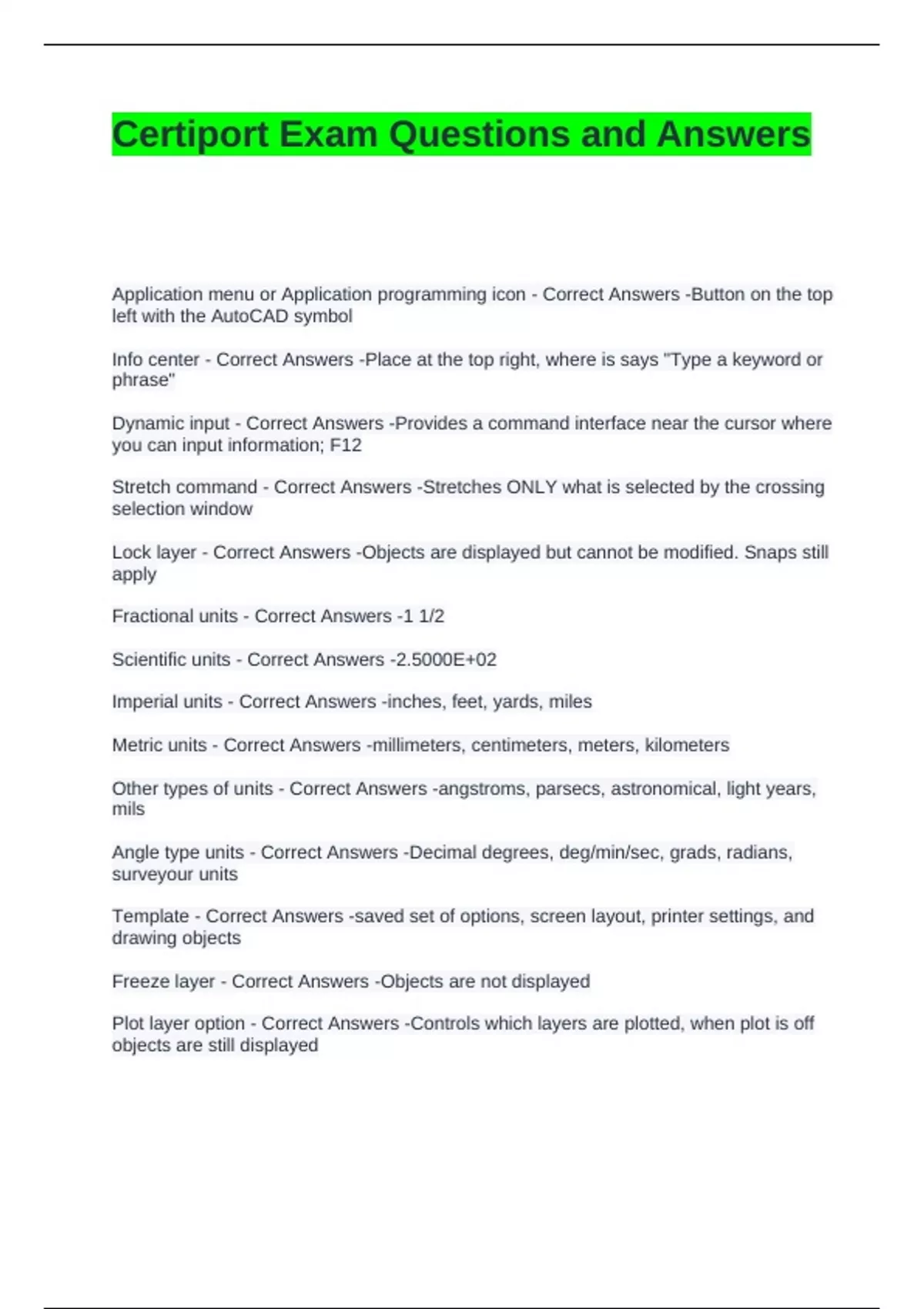

Certiport Exam Questions and Answers
Application menu or Application programming icon - Correct Answers -Button on the top
left with the AutoCAD symbol
Info center - Correct Answers -Place at the top right, where is says "Type a keyword or
phrase"
Dynamic input - Correct Answers -Provides a command interface near the cursor where
you can input information; F12
Stretch command - Correct Answers -Stretches ONLY what is selected by the crossing
selection window
Lock layer - Correct Answers -Objects are displayed but cannot be modified. Snaps still
apply
Fractional units - Correct Answers -1 1/2
Scientific units - Correct Answers -2.5000E+02
Imperial units - Correct Answers -inches, feet, yards, miles
Metric units - Correct Answers -millimeters, centimeters, meters, kilometers
Other types of units - Correct Answers -angstroms, parsecs, astronomical, light years,
mils
Angle type units - Correct Answers -Decimal degrees, deg/min/sec, grads, radians,
surveyour units
Template - Correct Answers -saved set of options, screen layout, printer settings, and
drawing objects
Freeze layer - Correct Answers -Objects are not displayed
Plot layer option - Correct Answers -Controls which layers are plotted, when plot is off
objects are still displayed
, On/Off layer option - Correct Answers -Simply controls which layers display and do not
display objects
Plot Style - Correct Answers -Changes the plotstyle associated with the selected layer
Transparency layer option - Correct Answers -Controls the level of visibility for the
objects on the layer
Normal Island Detection - Correct Answers -Hatches every other surface
Outer island detection - Correct Answers -Hatches only the outer surface
Ignore island detection - Correct Answers -Ignores all boundaries and hatches
everything
Plot area - Correct Answers -Specifies the portion of the drawing to be plotted based on
plotting options
Layout/limits plotting option - Correct Answers -Plots everything within the printable area
of the specified paper size, with the origin calculated from 0,0 in the layout
Extents plotting option - Correct Answers -Plots the portion of the current space of the
drawing that contain objects
Display plotting option - Correct Answers -Will plot the view in the current viewport in the
selected model tab or the current paper space view in the layout
Window plotting option - Correct Answers -Plots any portion of the drawing that you
specify
View plotting option - Correct Answers -Plots a view that was previously saved with the
view command (if there are no saved views, this option is unavailable)
Fillet command - Correct Answers -Rounds a corner of two lines usually to a specified
radius
Polyline fillet - Correct Answers -Rounds every vertex or corner to the specified radius
of an entire polyline
Trim command - Correct Answers -Used to cut and erase pieces of objects on a
drawing
Extend command - Correct Answers -Opposite of trim; extends the second object to
border the first
