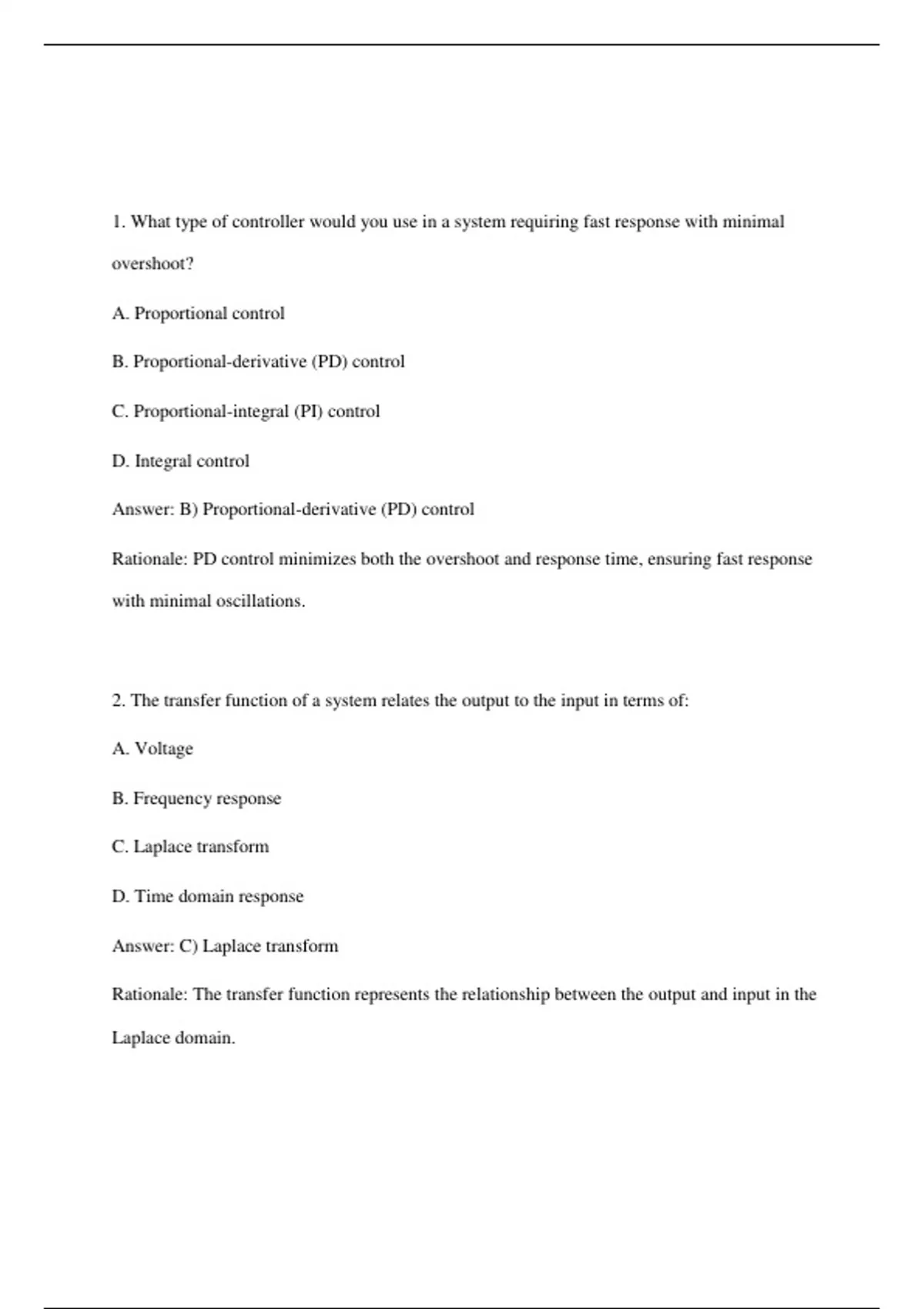

1. What type of controller would you use in a system requiring fast response with minimal
overshoot?
A. Proportional control
B. Proportional-derivative (PD) control
C. Proportional-integral (PI) control
D. Integral control
Answer: B) Proportional-derivative (PD) control
Rationale: PD control minimizes both the overshoot and response time, ensuring fast response
with minimal oscillations.
2. The transfer function of a system relates the output to the input in terms of:
A. Voltage
B. Frequency response
C. Laplace transform
D. Time domain response
Answer: C) Laplace transform
Rationale: The transfer function represents the relationship between the output and input in the
Laplace domain.
,3. What does the term “stability” refer to in control systems?
A. The system’s ability to return to equilibrium after a disturbance
B. The system’s ability to perform complex tasks
C. The system’s ability to have a constant output
D. The system’s resistance to noise
Answer: A) The system’s ability to return to equilibrium after a disturbance
Rationale: Stability in control systems means the system can return to its desired state after being
disturbed.
4. Which of the following can be used to improve system stability in a control system?
A. Increasing the system's gain
B. Decreasing the system's feedback
C. Adding a low-pass filter to the feedback loop
D. Reducing the number of control loops
Answer: C) Adding a low-pass filter to the feedback loop
Rationale: A low-pass filter helps reduce high-frequency noise and smooths the control signal,
thus improving stability by limiting abrupt changes in system behavior.
5. What is the main function of an encoder in a mechatronic system?
A. To measure position
B. To provide power
, C. To store control parameters
D. To generate control signals
Answer: A) To measure position
Rationale: An encoder is used to measure the position or rotation of a mechanical part, providing
feedback for control purposes.
6. What is the primary limitation of a derivative controller in a PID controller?
A. It cannot handle large system errors
B. It amplifies high-frequency noise
C. It slows down the system's response
D. It causes the system to be unstable
Answer: B) It amplifies high-frequency noise
Rationale: The derivative action in a PID controller is sensitive to high-frequency noise, which
can cause instability or undesired control responses in the system.
7. What is a common application of fuzzy logic controllers in mechatronics?
A. Digital signal processing
B. Temperature control in HVAC systems
C. Real-time image processing
D. Noise reduction in electrical signals
Answer: B) Temperature control in HVAC systems
