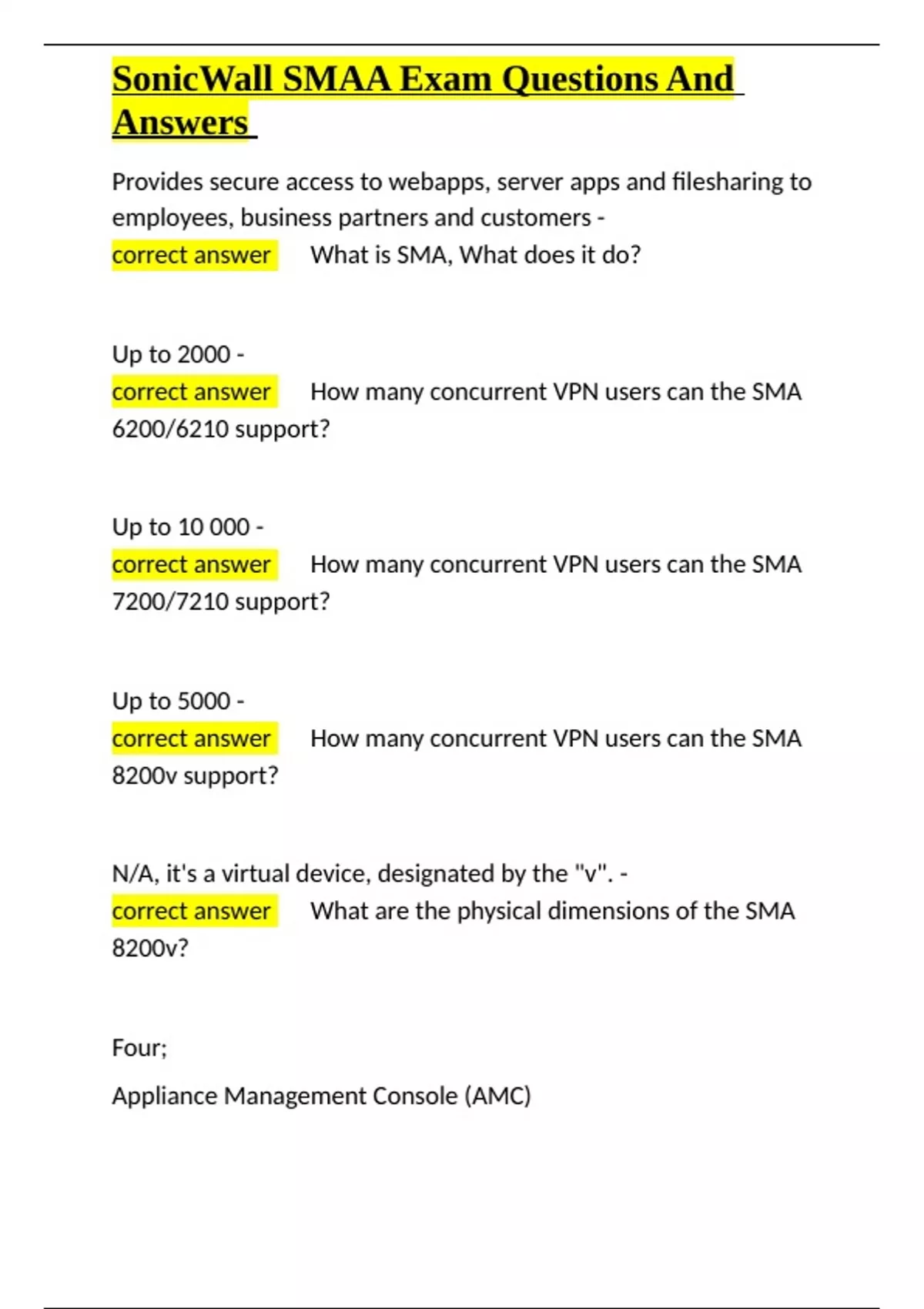

SonicWall SMAA Exam Questions And
Answers
Provides secure access to webapps, server apps and filesharing to
employees, business partners and customers -
correct answer ✅What is SMA, What does it do?
Up to 2000 -
correct answer ✅How many concurrent VPN users can the SMA
6200/6210 support?
Up to 10 000 -
correct answer ✅How many concurrent VPN users can the SMA
7200/7210 support?
Up to 5000 -
correct answer ✅How many concurrent VPN users can the SMA
8200v support?
N/A, it's a virtual device, designated by the "v". -
correct answer ✅What are the physical dimensions of the SMA
8200v?
Four;
Appliance Management Console (AMC)
,SonicWall SMAA Exam Questions And
Answers
Web Proxy Service
Network Tunnel Service
Trusted Learning Devices -
correct answer ✅How many administration components are there
to SMA, and what are they called?
Five;
WorkPlace
OnDemand Proxy Agent
Mobile Connect
Connect and OnDemand Tunnel Clients
End Point Control -
correct answer ✅How many User Access components are there to
SMA, and what are they called?
HDD activity
Alarm Condition
Test
Power (two LEDs side by side) -
correct answer ✅What do the SMA6200 / SMA7200 front panel
LEDs indicate, top to bottom?
,SonicWall SMAA Exam Questions And
Answers
Greenwich Mean Time (GMT) -
correct answer ✅What is the default time zone for the SMA?
Note - This should be done on a separate test network
Note serial # and Authentication Code
Mount the device, connect cables
Turn it on and begin configuration
Connect to the box from internal net, behind firewall
Run the setup wizard
Register the SMA box on MySonicWall -
correct answer ✅What are the steps for installing a SMA
appliance?
8443 -
correct answer ✅What port does the Setup Wizard use, by
default?
Moving the date and time backwards from the current will disable
ALL services and the licenses will need to be reinstalled. -
, SonicWall SMAA Exam Questions And
Answers
correct answer ✅After your initial setup, the customer wants you
to set the date and time on the SMA to yesterday at 12pm due to
some proprietary systems they are running.
What will happen if you oblige the customer?
192.168.0.10 -
correct answer ✅What IP address does the Setup Wizard default
to on initial setup?
TCP 443 is required.
TCP 80 is optional
UDP 4500 is required for ESP mode. -
correct answer ✅What ports must be open for you to install a
SMA (disregarding the use of the serial port)?
The Serial Setup Tool can be run at any time, but it will overwrite all
current config.
It may be useful in situations where 192.168.0.10 is already in use
on the network. -
correct answer ✅When can you run the Serial Setup Tool, and
what happens if you do?
