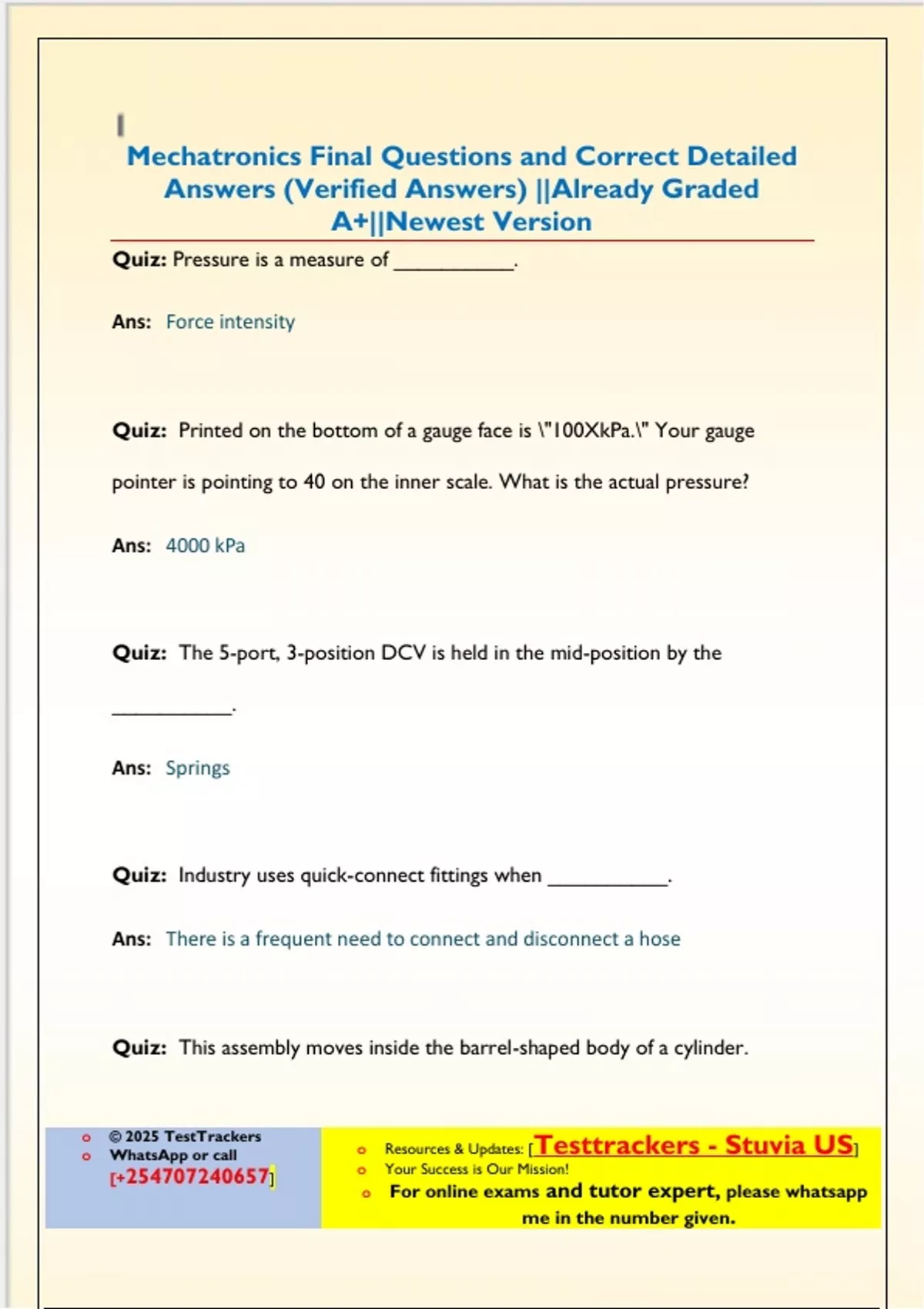

Mechatronics Final Questions and Correct Detailed
Answers (Verified Answers) ||Already Graded
A+||Newest Version
Quiz: Pressure is a measure of __________.
Ans: Force intensity
Quiz: Printed on the bottom of a gauge face is \"100XkPa.\" Your gauge
pointer is pointing to 40 on the inner scale. What is the actual pressure?
Ans: 4000 kPa
Quiz: The 5-port, 3-position DCV is held in the mid-position by the
__________.
Ans: Springs
Quiz: Industry uses quick-connect fittings when __________.
Ans: There is a frequent need to connect and disconnect a hose
Quiz: This assembly moves inside the barrel-shaped body of a cylinder.
o
o
© 2025 TestTrackers
WhatsApp or call o Resources & Updates: [Testtrackers - Stuvia US]
o Your Success is Our Mission!
[+254707240657]
o For online exams and tutor expert, please whatsapp
me in the number given.
, Ans: Piston/Rod
Quiz: DCV stands for __________.
Ans: Directional control valve
Quiz: Which fluid is most commonly used in pneumatics?
Ans: Air
Quiz: Why would a spring symbol be added to a schematic drawing of a
DCV?
Ans: It causes the spool to be positioned in the center condition.
Quiz: How many positions and ports will a 5/3 DCV have?
Ans: 5 ports and 3 positions
Quiz: Smaller dirt particles are removed from the air by the filter's
__________.
o
o
© 2025 TestTrackers
WhatsApp or call o Resources & Updates: [Testtrackers - Stuvia US]
o Your Success is Our Mission!
[+254707240657]
o For online exams and tutor expert, please whatsapp
me in the number given.
, Ans: Element
Quiz: Filters should be used on all pneumatic systems because atmospheric
air contains __________.
Ans: Dust
Quiz: What causes the poppet of a pressure regulator to close?
Ans: An increase in downstream pressure
Quiz: Pneumatic symbols have been standardized by the ISO which stands for
__________.
Ans: International Organization for Standardization
Quiz: This fitting is used to connect two branch circuits to a single supply
line.
Ans: Tee
Quiz: When using an air compressor, at what point does air actually flow?
o
o
© 2025 TestTrackers
WhatsApp or call o Resources & Updates: [Testtrackers - Stuvia US]
o Your Success is Our Mission!
[+254707240657]
o For online exams and tutor expert, please whatsapp
me in the number given.
