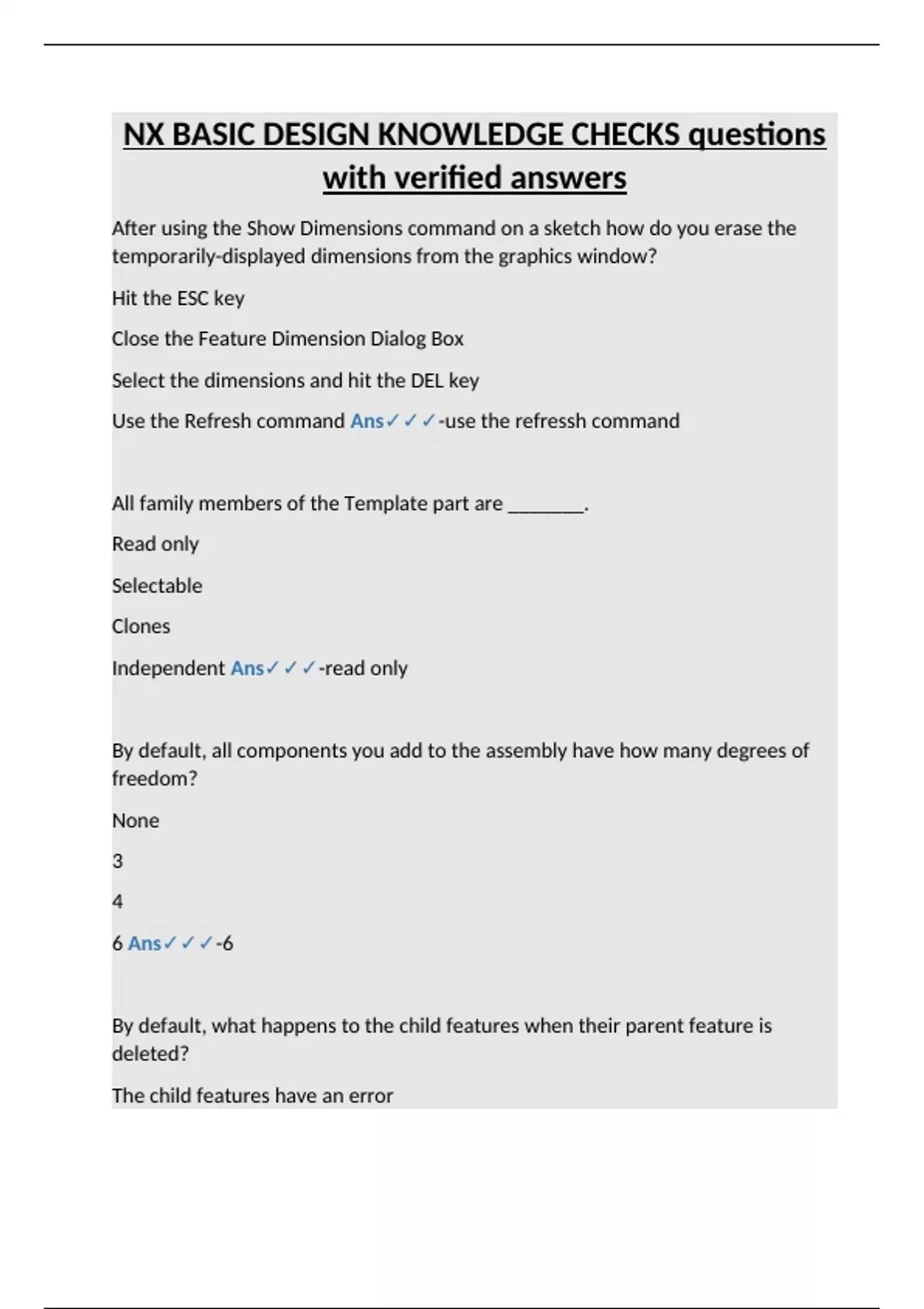

NX BASIC DESIGN KNOWLEDGE CHECKS questions
with verified answers
After using the Show Dimensions command on a sketch how do you erase the
temporarily-displayed dimensions from the graphics window?
Hit the ESC key
Close the Feature Dimension Dialog Box
Select the dimensions and hit the DEL key
Use the Refresh command Ans✓✓✓-use the refressh command
All family members of the Template part are _______.
Read only
Selectable
Clones
Independent Ans✓✓✓-read only
By default, all components you add to the assembly have how many degrees of
freedom?
None
3
4
6 Ans✓✓✓-6
By default, what happens to the child features when their parent feature is
deleted?
The child features have an error
,The children become orphan features
The child features are automatically deleted
The children expressions will become non-associative Ans✓✓✓-the child features
are automatically deleted
Design in context of an assembly means that the assembly is the displayed part
and the component you are editing is what?
The Current Part
The Work Part
Fully Loaded
Partially Loaded Ans✓✓✓-the work part
How can you create a note with a leader?
Click to place the note
Click and drag while placing the note
Middle click and drag while placing the note
Right click and drag while placing the note Ans✓✓✓-click and drag while placing
the note
How can you investigate the design intent of a sketch?
Vary a dimension to see how the sketch changes
Look in the Status line for Intent comments
Review the automatically created dimensions
Use the Design Intent Browser Ans✓✓✓-vary a dimension to see how the sketch
changes
, How can you tell which reference set is displayed?
Look for the reference set name in the Part Navigator
Look for the reference set in the graphics window
Look for the reference set name in the Assembly Navigator Ans✓✓✓-look for the
reference set in the assembly navigator
How can you temporarily remove all the Sketches and Datums from the graphics
window display if all the geometry is on the same layer?
Delete them from the Part Navigator
Use the Feature Status command
Use the Show and Hide command
Turn off Sketches and Datums Ans✓✓✓-use the show and hide command
How do you create a projected view on your drawing?
Right click the sheet node and choose Add Base View
Use the New View Command
Right-click a view border and choose View Alignment
Right-click a view border and choose Add Projected View Ans✓✓✓-right click a
view border and choose add projected view
How do you create an assembly using the Bottom-Up method?
Create the parts in the same file as the assembly
Create the parts separately and then add them to the assembly
