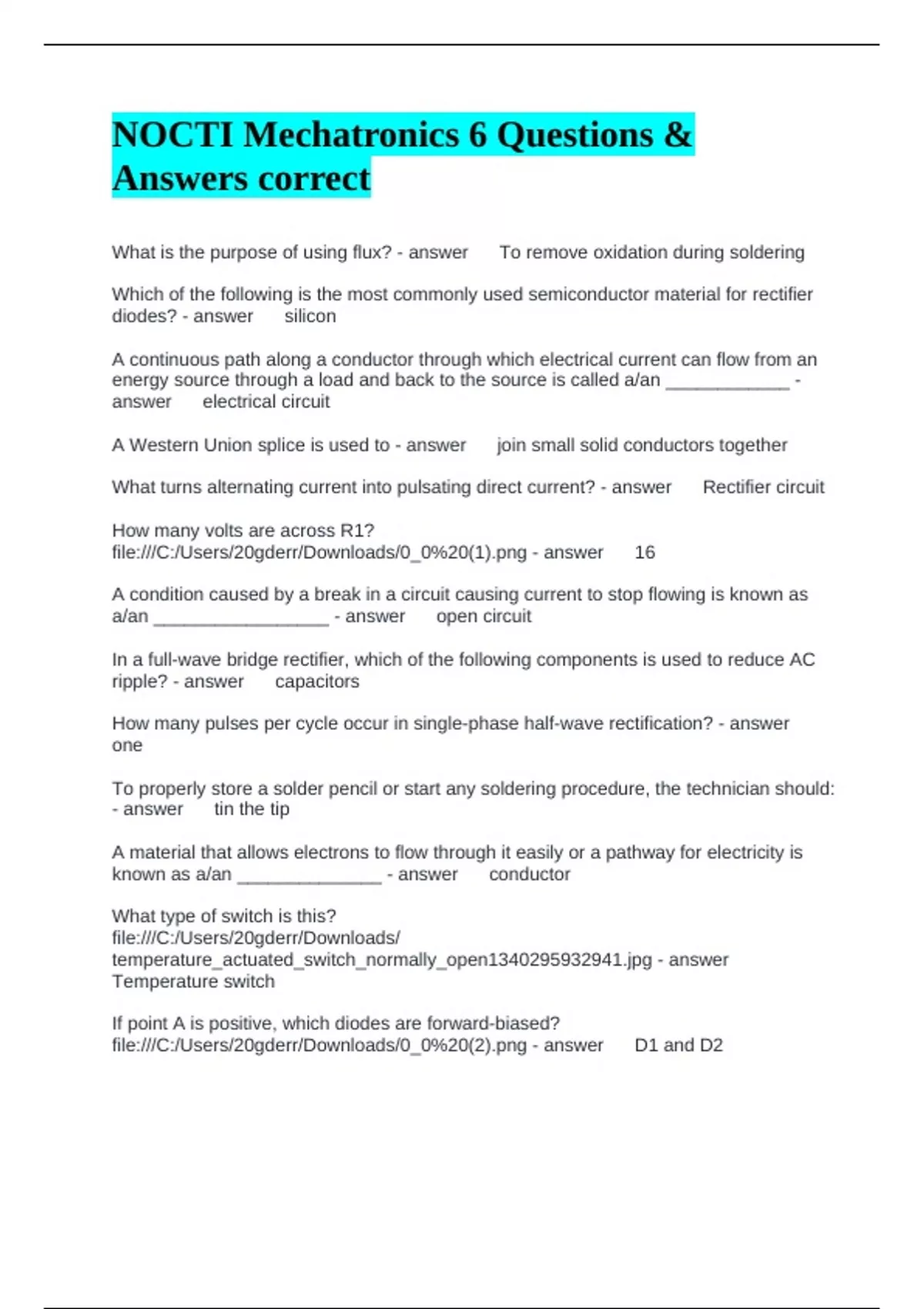

NOCTI Mechatronics 6 Questions &
Answers correct
What is the purpose of using flux? - answer To remove oxidation during soldering
Which of the following is the most commonly used semiconductor material for rectifier
diodes? - answer silicon
A continuous path along a conductor through which electrical current can flow from an
energy source through a load and back to the source is called a/an ____________ -
answer electrical circuit
A Western Union splice is used to - answer join small solid conductors together
What turns alternating current into pulsating direct current? - answer Rectifier circuit
How many volts are across R1?
file:///C:/Users/20gderr/Downloads/0_0%20(1).png - answer 16
A condition caused by a break in a circuit causing current to stop flowing is known as
a/an _________________ - answer open circuit
In a full-wave bridge rectifier, which of the following components is used to reduce AC
ripple? - answer capacitors
How many pulses per cycle occur in single-phase half-wave rectification? - answer
one
To properly store a solder pencil or start any soldering procedure, the technician should:
- answer tin the tip
A material that allows electrons to flow through it easily or a pathway for electricity is
known as a/an ______________ - answer conductor
What type of switch is this?
file:///C:/Users/20gderr/Downloads/
temperature_actuated_switch_normally_open1340295932941.jpg - answer
Temperature switch
If point A is positive, which diodes are forward-biased?
file:///C:/Users/20gderr/Downloads/0_0%20(2).png - answer D1 and D2
