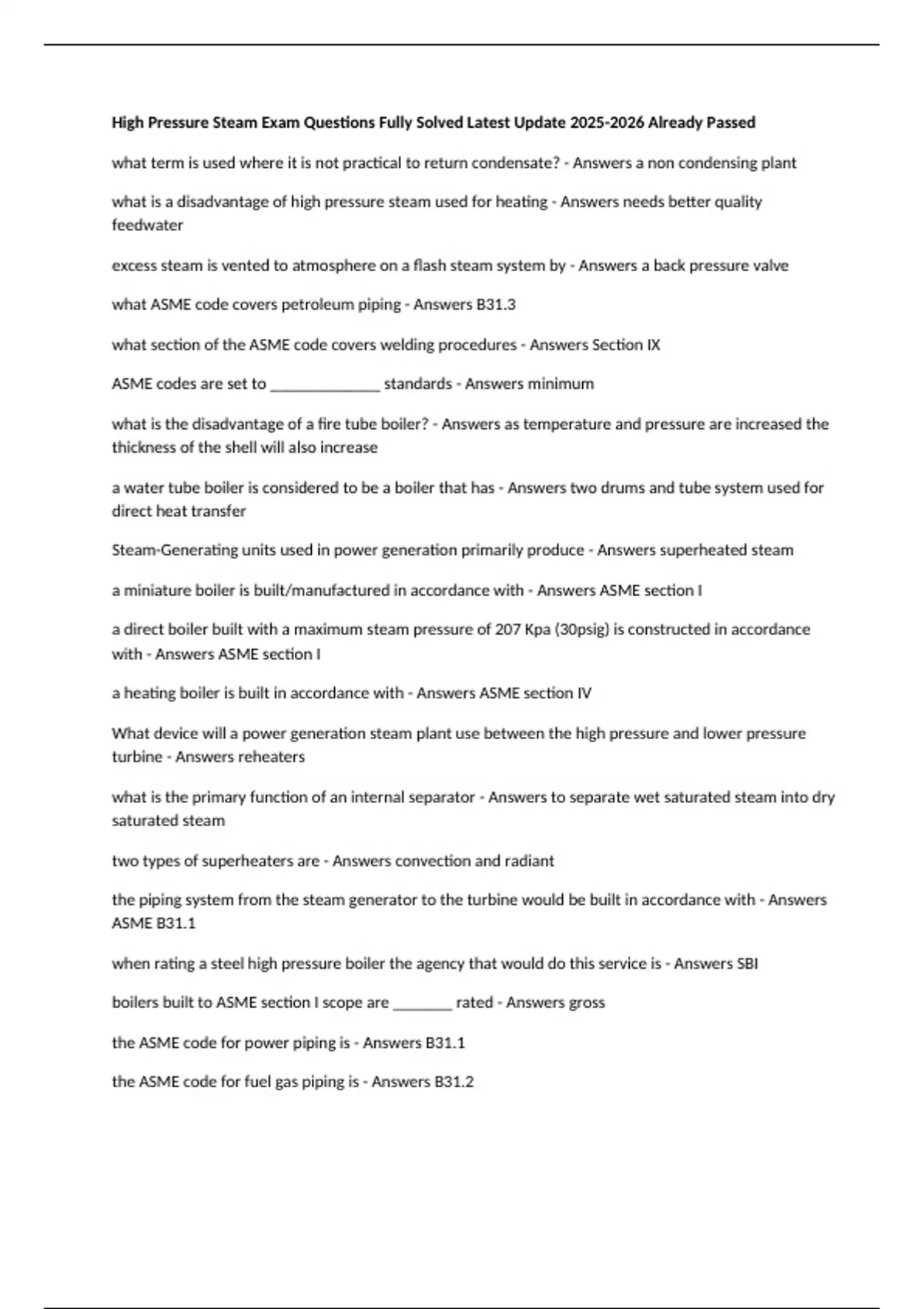

High Pressure Steam Exam Questions Fully Solved Latest Update 2025-2026 Already Passed
what term is used where it is not practical to return condensate? - Answers a non condensing plant
what is a disadvantage of high pressure steam used for heating - Answers needs better quality
feedwater
excess steam is vented to atmosphere on a flash steam system by - Answers a back pressure valve
what ASME code covers petroleum piping - Answers B31.3
what section of the ASME code covers welding procedures - Answers Section IX
ASME codes are set to _____________ standards - Answers minimum
what is the disadvantage of a fire tube boiler? - Answers as temperature and pressure are increased the
thickness of the shell will also increase
a water tube boiler is considered to be a boiler that has - Answers two drums and tube system used for
direct heat transfer
Steam-Generating units used in power generation primarily produce - Answers superheated steam
a miniature boiler is built/manufactured in accordance with - Answers ASME section I
a direct boiler built with a maximum steam pressure of 207 Kpa (30psig) is constructed in accordance
with - Answers ASME section I
a heating boiler is built in accordance with - Answers ASME section IV
What device will a power generation steam plant use between the high pressure and lower pressure
turbine - Answers reheaters
what is the primary function of an internal separator - Answers to separate wet saturated steam into dry
saturated steam
two types of superheaters are - Answers convection and radiant
the piping system from the steam generator to the turbine would be built in accordance with - Answers
ASME B31.1
when rating a steel high pressure boiler the agency that would do this service is - Answers SBI
boilers built to ASME section I scope are _______ rated - Answers gross
the ASME code for power piping is - Answers B31.1
the ASME code for fuel gas piping is - Answers B31.2
, the ASME code process piping - Answers B31.3
a _______________ is a tube or row of tubes (radiant or convection type coils) in which saturated steam
flows through and an increase in sensible heat is added to the saturated steam - Answers superheater
the superheater adds ____________ ______ to saturated steam - Answers sensible heat
what does the sensible heat from the superheat do to the steam and what is the benefits from this -
Answers the added heat removes moisture from the steam reducing turbine erosion and adds to the
efficiency of the turbine
the _____________ type superheater is primarily heated by the radiant heat energy from the furnace
(combustion chamber) - Answers radiant
the ___________ type super heater is heated only by flue gases (flue gas pass) leaving the boiler. -
Answers convection
One way of controlling the superheat temperature is by ___________ _ ____ ____ of pure feed water
into flow of super heated steam. the mist is evaporated by the superheated steam l, there fore reducing
temperature - Answers injecting a fine mist
a ________________ is a device in the form of a coil in the path of the superheated steam. cooler
feedwater in the tube absorbed heat from the steam, which causes the coil to sweat condensate -
Answers attemperator
the ________ ____ condenser sprays cold condensate into the exhaust steam flow, providing a means
to air elimination - Answers steam jet
a __________________ _________ valve is placed in a branch line leading from the the main exhaust
pipe to the atmosphere to avoid the possibility of having a pressure on the condenser - Answers
atmospheric relief valve
a relief valve is held closed by atmospheric pressure on top of the valve. as long as a vacuum is
maintained on the condenser, it remains ___________ - Answers closed
___ _______ condensers serve the same function as water cooled condensers and wet cooling towers.
they provide a low turbine back pressure, conserve the high purity water and deaerate the condensate -
Answers air cooled
air cooled steam condensers system may be _________ or ________ _______ - Answers mechanical or
natural draft
•make up water is not required
•maintance is less expensive
•large amount of treatment chemicals are not required
