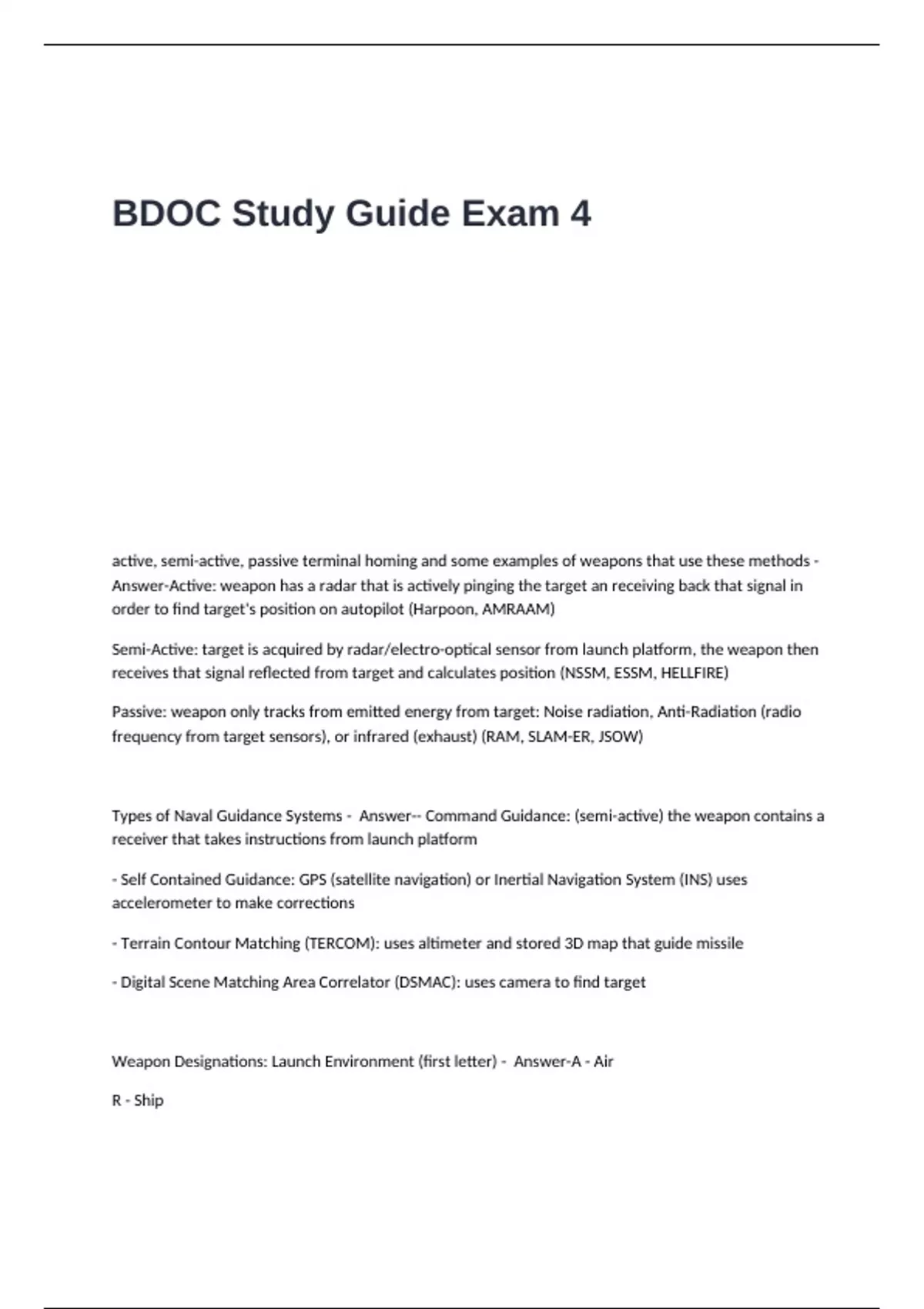

BDOC Study Guide Exam 4
active, semi-active, passive terminal homing and some examples of weapons that use these methods -
Answer-Active: weapon has a radar that is actively pinging the target an receiving back that signal in
order to find target's position on autopilot (Harpoon, AMRAAM)
Semi-Active: target is acquired by radar/electro-optical sensor from launch platform, the weapon then
receives that signal reflected from target and calculates position (NSSM, ESSM, HELLFIRE)
Passive: weapon only tracks from emitted energy from target: Noise radiation, Anti-Radiation (radio
frequency from target sensors), or infrared (exhaust) (RAM, SLAM-ER, JSOW)
Types of Naval Guidance Systems - Answer-- Command Guidance: (semi-active) the weapon contains a
receiver that takes instructions from launch platform
- Self Contained Guidance: GPS (satellite navigation) or Inertial Navigation System (INS) uses
accelerometer to make corrections
- Terrain Contour Matching (TERCOM): uses altimeter and stored 3D map that guide missile
- Digital Scene Matching Area Correlator (DSMAC): uses camera to find target
Weapon Designations: Launch Environment (first letter) - Answer-A - Air
R - Ship
,U - Underwater
Weapon Designations: Basic Mission (second letter) - Answer-G - Surface Attack
I - Intercept aerial or space
U - underwater attack
Weapon Designations: Vehicle Type (third letter) - Answer-B - Booster
M - guided missile or drone
R - rocket
AEGIS Weapon System Components - Answer-- Command and Decision (C&D)
- Weapons Control System (WCS)
- Aegis Display System (ADS)
- Vertical Launching System (VLS)
- SPY-1 RADAR
- Mk 99 Fire Control System (FCS)
- Standard Missile-2 (SM-2)
- Aegis Combat Training System (ACTS)
- Operational Readiness Testing System (ORTS)
Mode 1,2,3/A,4,5,S,C on IFF - Answer-1: Mission Code
2: Mission Code - Ship/Aircraft
3/A: Identification for Aircraft
4: Obsolete
5: Crypto Secured Challenge
, S: GPS position code for specific aircraft
C: aircrafts altitude
Link 11 name, components, and operating modes - Answer-- "Gator"
- NCS: Net Control Station
- PU: Picket Units
- GRU: Gridlock Reference Unit
- DLRP: Initial Data Link Reference Point
Operating Modes:
1. Net Synchronization
2. Net Test
3. Roll call
4. Broadcast
5. Short Broadcast
6. Radio Silence
Link-16 name, components, and advantages over Link-11 - Answer-- "Timber"
- NTR: Net Time Reference
- JTIDS Unit
- Forwarding JTIDS Unit
- Reference Point
- Relative Grid
Advantages: NFS
