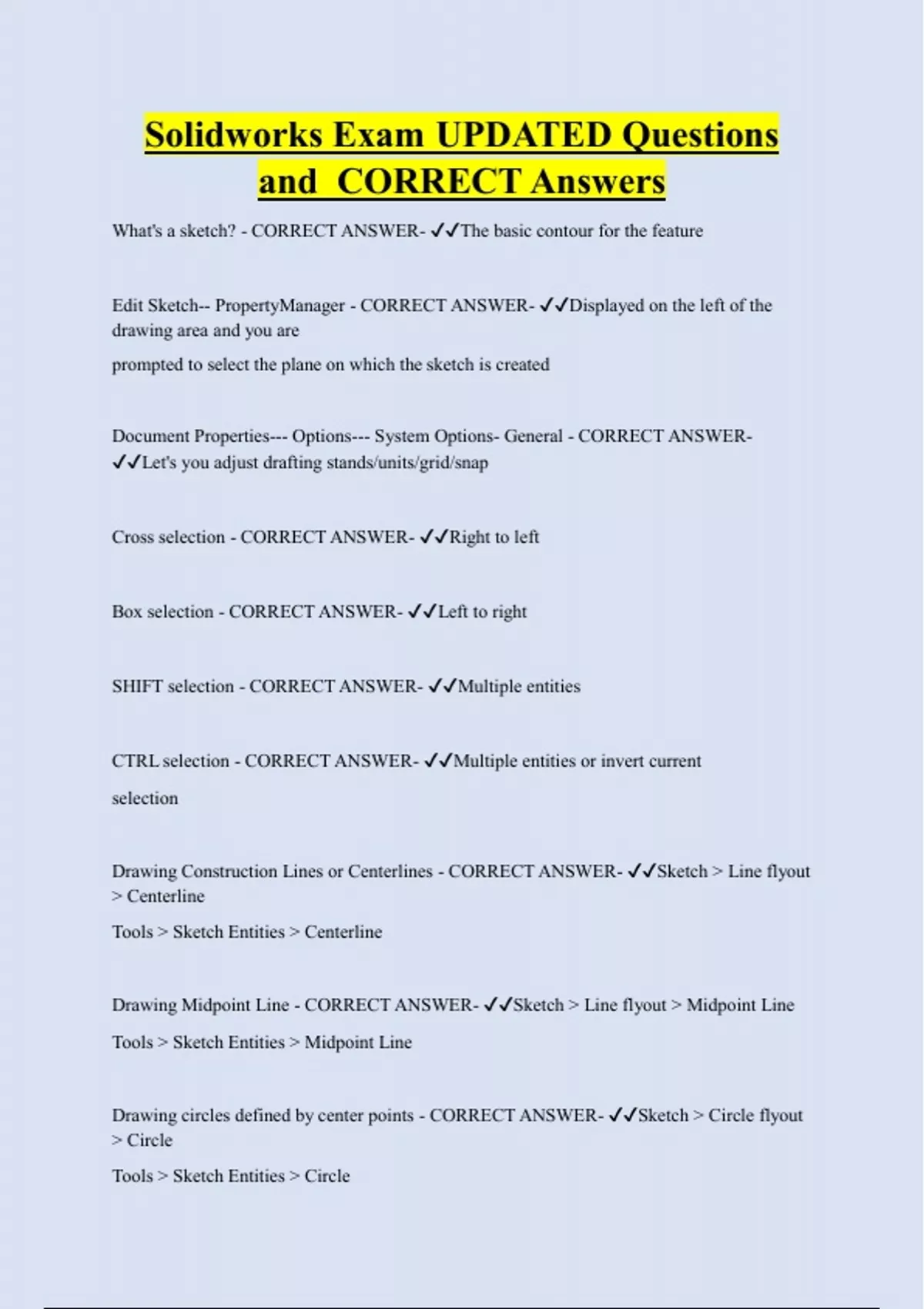

Solidworks Exam UPDATED Questions
and CORRECT Answers
What's a sketch? - CORRECT ANSWER- ✔✔The basic contour for the feature
Edit Sketch-- PropertyManager - CORRECT ANSWER- ✔✔Displayed on the left of the
drawing area and you are
prompted to select the plane on which the sketch is created
Document Properties--- Options--- System Options- General - CORRECT ANSWER-
✔✔Let's you adjust drafting stands/units/grid/snap
Cross selection - CORRECT ANSWER- ✔✔Right to left
Box selection - CORRECT ANSWER- ✔✔Left to right
SHIFT selection - CORRECT ANSWER- ✔✔Multiple entities
CTRL selection - CORRECT ANSWER- ✔✔Multiple entities or invert current
selection
Drawing Construction Lines or Centerlines - CORRECT ANSWER- ✔✔Sketch > Line flyout
> Centerline
Tools > Sketch Entities > Centerline
Drawing Midpoint Line - CORRECT ANSWER- ✔✔Sketch > Line flyout > Midpoint Line
Tools > Sketch Entities > Midpoint Line
Drawing circles defined by center points - CORRECT ANSWER- ✔✔Sketch > Circle flyout
> Circle
Tools > Sketch Entities > Circle
, Drawing circled defined by 3-points - CORRECT ANSWER- ✔✔Sketch > Circle flyout >
Perimeter Circle
Tools > Sketch Entities > Perimeter Circle
Drawing tangents/normal arcs - CORRECT ANSWER- ✔✔Sketch > Arc flyout > Tangent
Arc
Tools > Sketch Entities > Tangent Arc
Drawing Centerpoint arcs - CORRECT ANSWER- ✔✔Sketch > Arc flyout > Centerpoint
Arc
Tools > Sketch Entity > Centerpoint Arc
Drawing 3 point arcs - CORRECT ANSWER- ✔✔Sketch > Arc flyout > 3 Point Arc
Tools > Sketch Entities > 3 Point Arc
Drawing rectangles by specifying corners - CORRECT ANSWER- ✔✔Sketch > Rectangle
flyout > Corner Rectangle
Tools > Sketch Entities > Corner Rectangle
Drawing rectangles by specifying center + corner - CORRECT ANSWER- ✔✔Sketch >
Rectangle flyout > Center Rectangle
Tools > Sketch Entities > Center Rectangle
Drawing rectangles @ an angle - CORRECT ANSWER- ✔✔Sketch > Rectangle flyout > 3
Point Corner Rectangle
Tools > Sketch Entities > 3 Point Corner Rectangle
Drawing counterpoint rectangles @ an angle - CORRECT ANSWER- ✔✔Sketch >
Rectangle flyout > 3 Point Center Rectangle
Tools > Sketch Entities > 3 Point Center Rectangle
