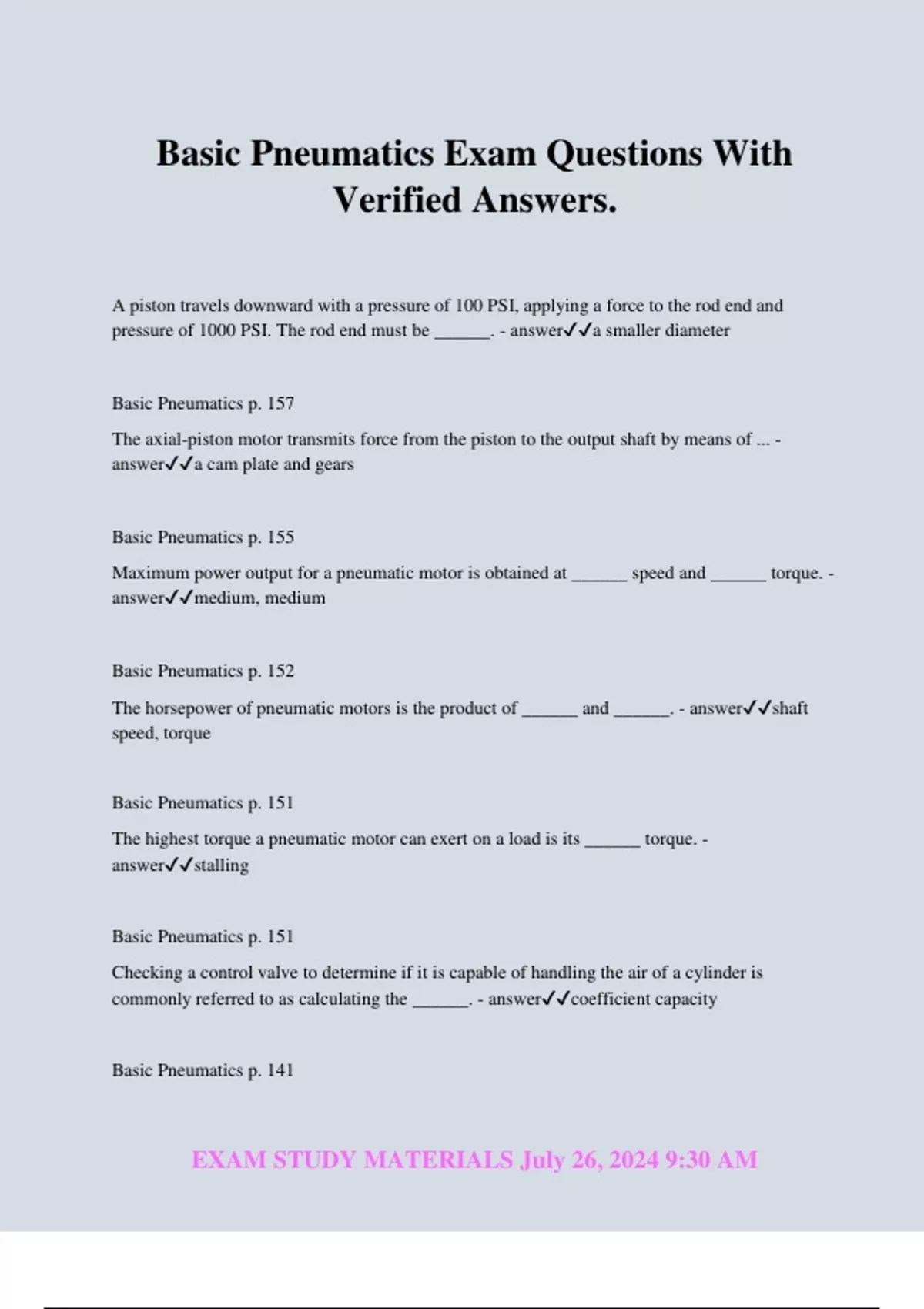

Basic Pneumatics Exam Questions With Verified Answers.

EXAM STUDY MATERIALS July 26, 2024 9:30 AM Basic Pneumatics Exam Questions With Verified Answers. A piston travels downward with a pressure of 100 PSI, applying a force to the rod end and pressure of 1000 PSI. The rod end must be ______. - answer✔✔a smaller diameter Basic Pneumatics p. 157 The axial -piston motor transmits force from the piston to the output shaft by means of ... - answer✔✔a cam plate and gears Basic Pneumatics p. 155 Maximum power output for a pneumatic motor is obtained at ______ speed and ______ torque. - answer✔✔medium, medium Basic Pneumatics p. 152 The horsepower of pneumatic mo tors is the product of ______ and ______. - answer✔✔shaft speed, torque Basic Pneumatics p. 151 The highest torque a pneumatic motor can exert on a load is its ______ torque. - answer✔✔stalling Basic Pneumatics p. 151 Checking a control valve to determin e if it is capable of handling the air of a cylinder is commonly referred to as calculating the ______. - answer✔✔coefficient capacity Basic Pneumatics p. 141 EXAM STUDY MATERIALS July 26, 2024 9:30 AM Pivoted cylinders that must be free to pivot requires ______ mounting. - answer✔✔trunnion or clevis Basic Pneumatics p. 139 The main purpose of an exhaust -flow control metering valve on a pneumatic cylinder is to ... - answer✔✔Limit the return -stroke speed Basic Pneumatics p. 135 The ______ -acting, ______ -rod cylinder has a spring return. - answer✔✔single, single Basic Pneumatics p. 135 Because the rod takes up some of the surface area of the piston, ______ pressure can be exerted on the rod side than on the cap side of the piston. - answer✔✔less Basic Pneumatics p. 133 Relief valves are used in pneumatic systems are built into pressure regulators in various ways. They are only capable of relieving low volume excess pressure buildups in the ______. - answer✔✔secondary pressure line Basic Pneumatics p. 124 An increase in pressure on the secondary side of a pressure regulating valve ______ the valve. - answer✔✔slightly closed Basic Pneumatics p. 120 What is the main purpose of a pressure relief valve in a pneumatic system. - answer✔✔protect the system from damage Basic Pn eumatics p. 120 Diaphragm relief valves respond faster than poppet valves because the compressed air works on ... - answer✔✔a larger pressure -sensitive area
