EXAM STUDY MATERIALS July 26, 2024 9:30 AM Pneumatics – Eng Exam Questions With Verified Answers. Which fluid is most commonly used in pneumatics? - answer✔✔Air On a pressure gauge with a full -scale reading of 100 psi, a 3% error rating means the actual psi may be up to __________ psi different then what the gauge indicates. - answer✔✔3 A regulator is used in pneumatics to __________. - answer✔✔Provide a constant pressure to the circuit. Industry uses quick connect fittings when __________. - answer✔✔There is a frequent need to connect and disconnect a hose This fitting is used to connect two branch cir cuits to a single supply line. - answer✔✔Tee The control devices used in pneumatics are called __________. - answer✔✔Valves Pneumatic symbols have been standardized by ISO which stands for __________. - answer✔✔International Organization for Standardizatio n Pressure is a measure of __________. - answer✔✔Force intensity The symbol shown here represents __________. - answer✔✔A blocked port Filters should be used on all pneumatic systems because atmospheric air contains __________. - answer✔✔Dust DCV stands fo r __________. - answer✔✔Directional control valve This assembly moves inside the barrel -shaped body of a cylinder. - answer✔✔Piston/Rod Which of the following is not a pneumatic safety rule? - answer✔✔Use any container for compressed air. The poppet of a p ressure regulator is opened by the __________. - answer✔✔Adjustment spring Smaller dirt particles are removed from the air by the filter's __________. - answer✔✔Element Which pneumatic component provides straight -line motion? - answer✔✔Cylinder The number of __________ on a Directional Control Valve indicates the number of paths air can flow through the valve. - answer✔✔Ways
Vista previa 1 fuera de 4 páginas
Examen

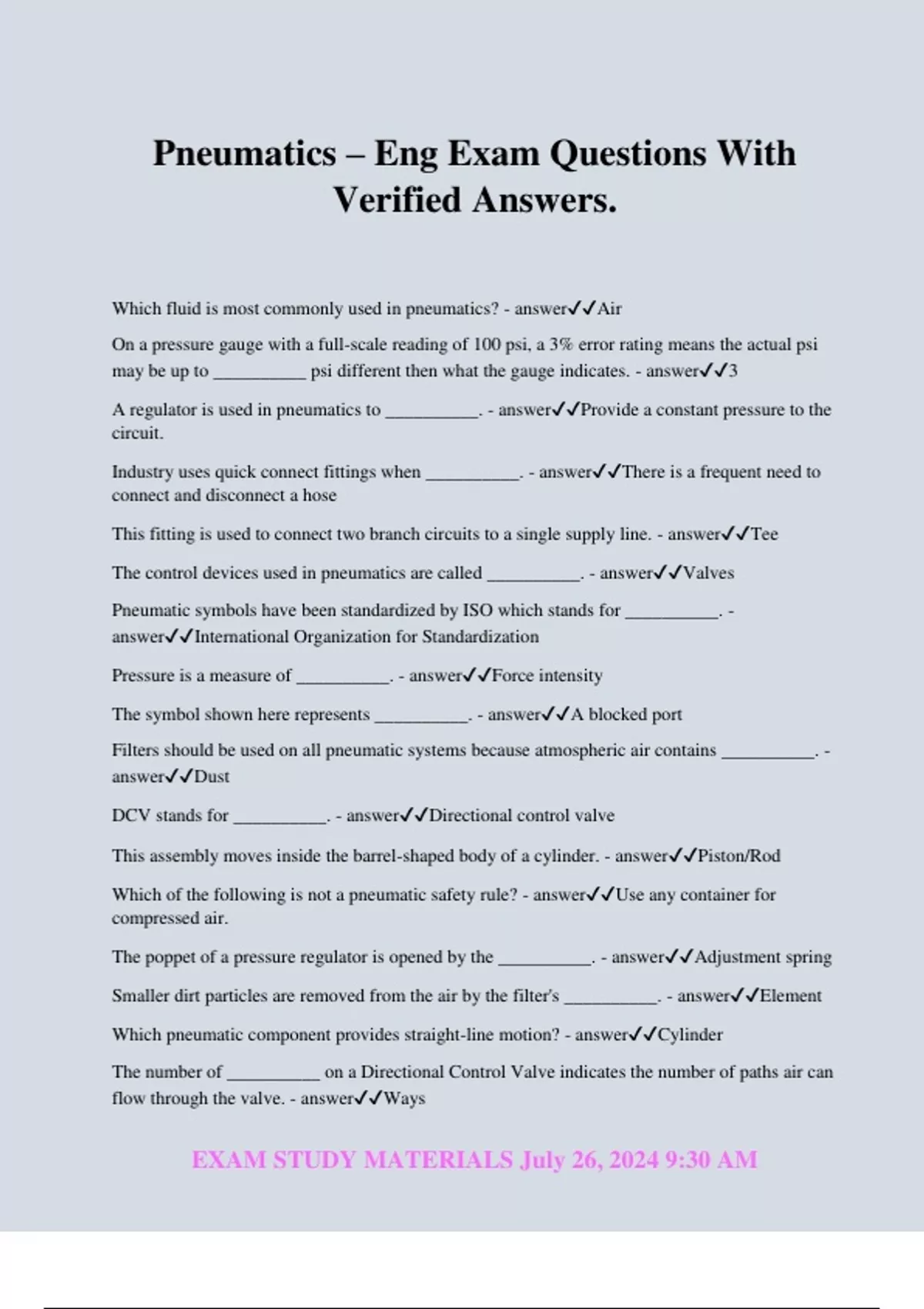

Pneumatics – Eng Exam Questions With Verified Answers.
Vista previa 1 fuera de 4 páginas
Pneumatics – Eng Exam Questions With Verified Answers. Which fluid is most commonly used in pneumatics? - answerAir On a pressure gauge with a full-scale reading of 100 psi, a 3% error rating means the actual psi may be up to __________ psi different then what the gauge indicates. - answer3 A regulator is used in pneumatics to __________. - answerProvide a constant pressure to the circuit. Industry uses quick connect fittings when __________. - answerThere is a frequent need to connect and disconnect a hose This fitting is used to connect two branch circuits to a single supply line. - answerTee The control devices used in pneumatics are called __________. - answerValves Pneumatic symbols have been standardized by ISO which stands for __________. - answerInternational Organization for Standardization Pressure is a measure of __________. - answerForce intensity The symbol shown here represents __________. - answerA blocked port Filters should be used on all pneumatic systems because atmospheric air contains __________. - answerDust DCV stands for __________. - answerDirectional control valve This assembly moves inside the barrel-shaped body of a cylinder. - answerPiston/Rod Which of the following is not a pneumatic safety rule? - answerUse any container for compressed air. The poppet of a pressure regulator is opened by the __________. - answerAdjustment spring Smaller dirt particles are removed from the air by the filter's __________. - answerElement Which pneumatic component provides st
