Pneumatic Power Systems Exam Questions With Verified Answers.

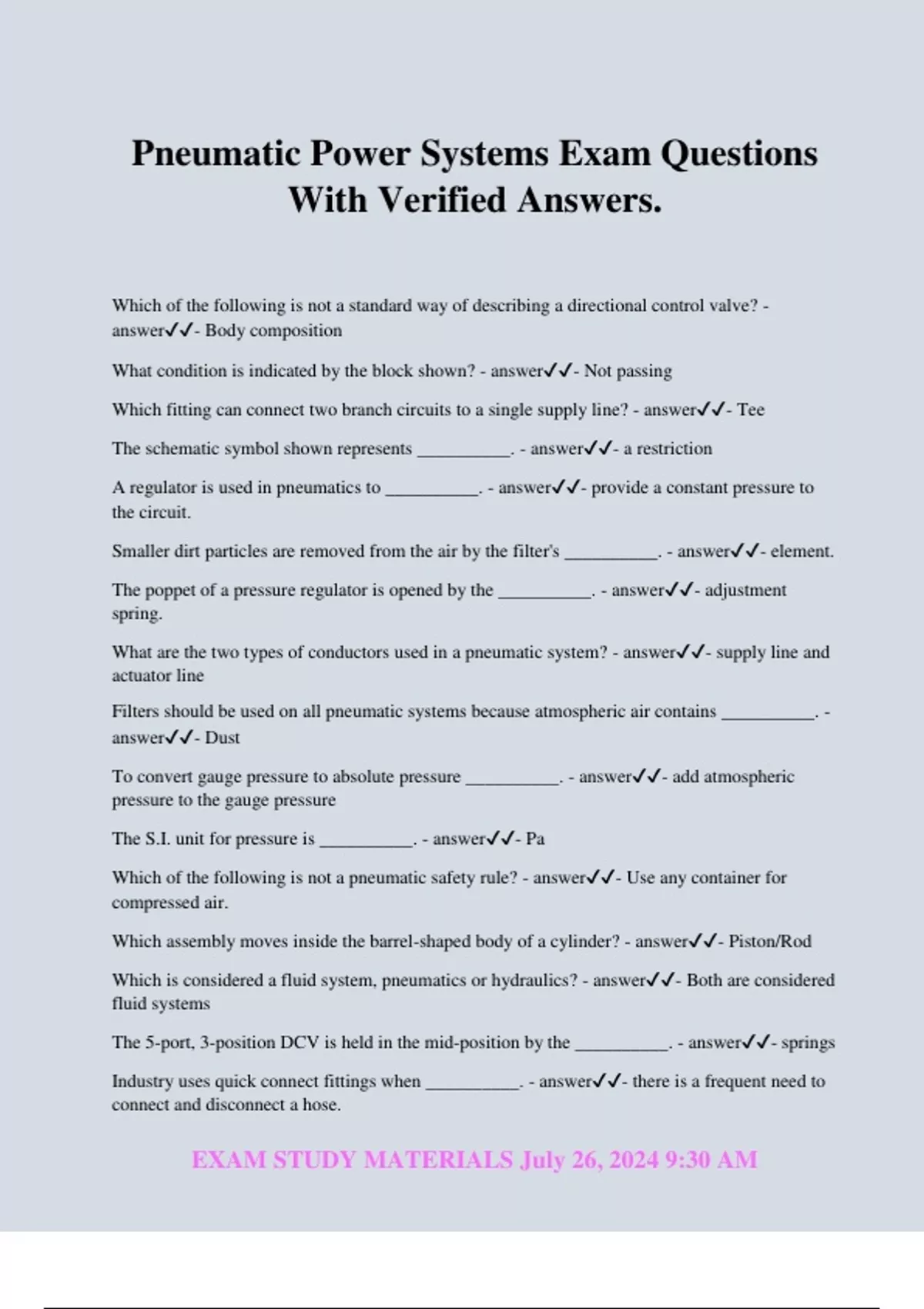

EXAM STUDY MATERIALS July 26, 2024 9:30 AM Pneumatic Power Systems Exam Questions With Verified Answers. Which of the following is not a standard way of describing a directional control valve? - answer✔✔- Body composition What condition is indicated by the block shown? - answer✔✔- Not passing Which fitting can connect two branch circuits to a single supply li ne? - answer✔✔- Tee The schematic symbol shown represents __________. - answer✔✔- a restriction A regulator is used in pneumatics to __________. - answer✔✔- provide a constant pressure to the circuit. Smaller dirt particles are removed from the air by the filter's __________. - answer✔✔- element. The poppet of a pressure regulator is opened by the __________. - answer✔✔- adjustment spring. What are the two types of conductors used in a pneumatic system? - answer✔✔- supply line and actuator line Filters shou ld be used on all pneumatic systems because atmospheric air contains __________. - answer✔✔- Dust To convert gauge pressure to absolute pressure __________. - answer✔✔- add atmospheric pressure to the gauge pressure The S.I. unit for pressure is __________ . - answer✔✔- Pa Which of the following is not a pneumatic safety rule? - answer✔✔- Use any container for compressed air. Which assembly moves inside the barrel -shaped body of a cylinder? - answer✔✔- Piston/Rod Which is considered a fluid system, pneumatic s or hydraulics? - answer✔✔- Both are considered fluid systems The 5 -port, 3 -position DCV is held in the mid -position by the __________. - answer✔✔- springs Industry uses quick connect fittings when __________. - answer✔✔- there is a frequent need to conne ct and disconnect a hose.
