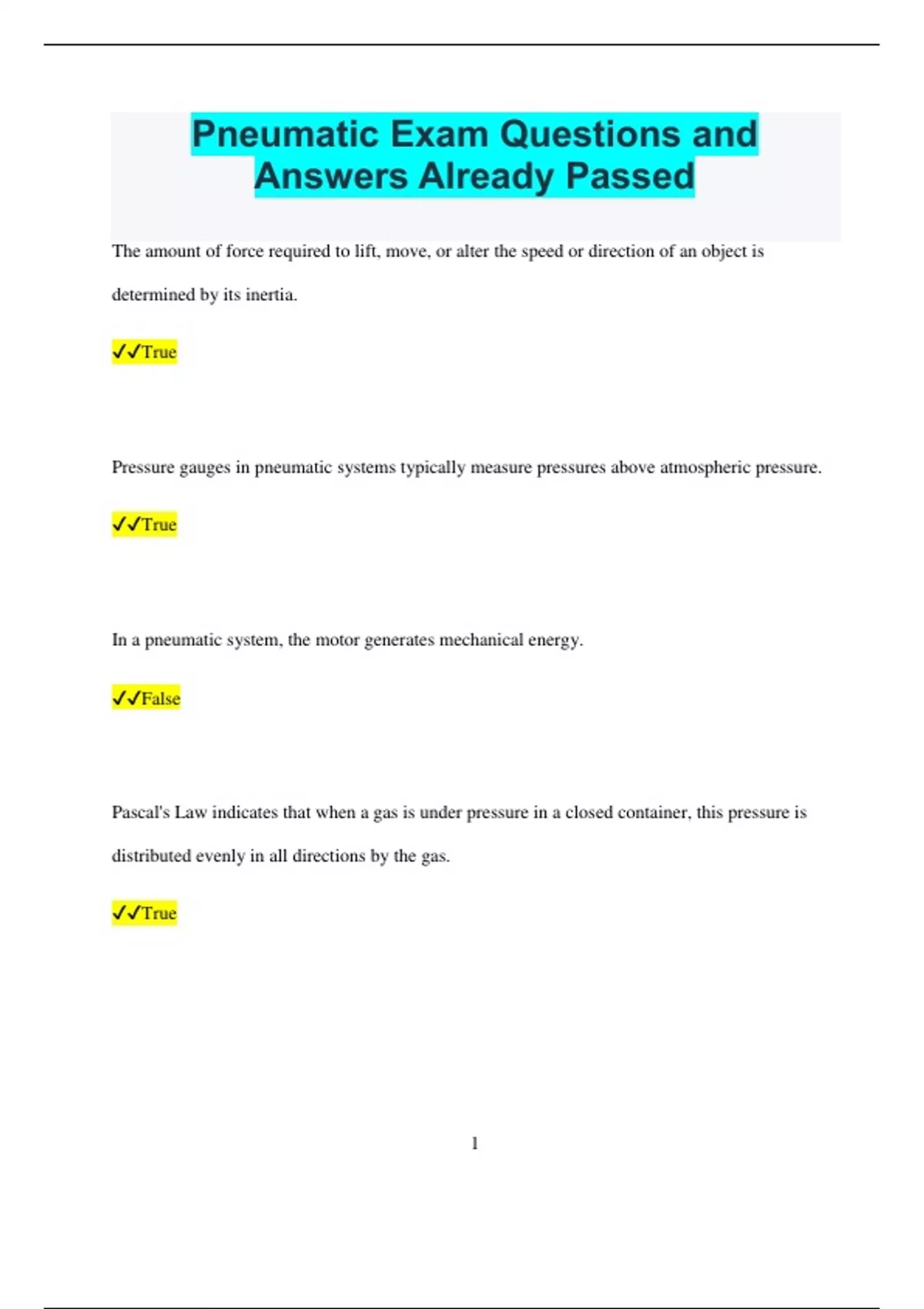

Pneumatic Exam Questions and Answers Already Passed

Pneumatic Exam Questions and Answers Already Passed The amount of force required to lift, move, or alter the speed or direction of an object is determined by its inertia. True Pressure gauges in pneumatic systems typically measure pressures above atmospheric pressure. True In a pneumatic system, the motor generates mechanical energy. False Pascal's Law indicates that when a gas is under pressure in a closed container, this pressure is distributed evenly in all directions by the gas. True 2 If the volume of a gas within a confined space remains constant, the pressure changes proportionally with the absolute temperature of the gas. Thus, increasing the temperature will result in increased pressure. True In pneumatic systems, the principle that allows a small amount of pressure to move a larger object is known as pneumatic leverage or force amplification. True According to Bernoulli's Law, in an ideal system, an increase in air velocity leads to a rise in the kinetic energy of the air, while the total energy of the air remains constant. False Pneumatic systems are fundamentally different from hydraulic systems, not just in terms of components but also in the pathways through which the fluids flow. True There are three main types of symbols used in pneumatic circuit diagrams: pictorial, cutaway, and schematic. 3 True In a pneumatic timing circuit, the timing depends on the size of the restriction, the volume of the reservoir, and the pressure of the air signal. True Special pneumatic devices are typically designed with symbols created by industrial technicians. False To understand the functionality of specialized pneumatic devices, consult the manufacturer's service bulletins which provide details on their operation. True A system that uses gas to transmit force is known as a pneumatic system In a pneumatic setup, force applied to an object to alter its position or movement is provided by compressed air 4 To determine the work done by a cylinder in a pneumatic system, what formula is used? Force x piston travel
