Summary bending-tensile and compression test results

Phone:
Fax:
Mail:
Website:

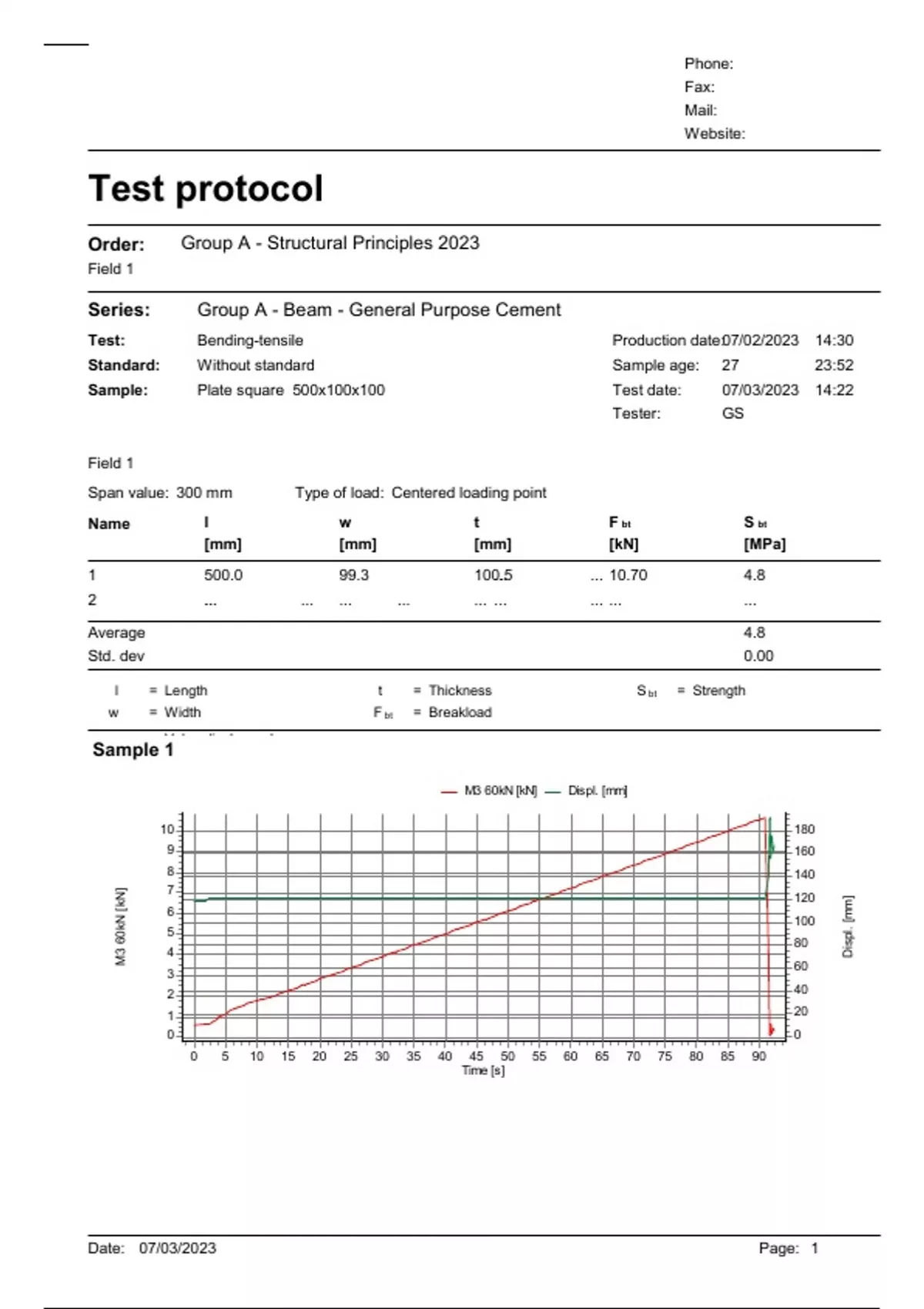

Test protocol
Order: Group A - Structural Principles 2023
Field 1

Series: Group A - Beam - General Purpose Cement
Test: Bending-tensile Production date:07/02/2023 14:30
Standard: Without standard Sample age: 27 23:52
Sample: Plate square 500x100x100 Test date: 07/03/2023 14:22
Tester: GS


Field 1 result conformity EN 206:2013: not satisfied
Quality
Span value: 300 mm Type of load: Centered loading point
Name l w t F bt S bt
[mm] [mm] [mm] [kN] [MPa]
1 500.0 99.3 100.5
... ... 10.70 4.8
2 ... ... ... ... ... ... ... ... ...

Average 4.8
Std. dev 0.00

l = Length t = Thickness S bt = Strength
w = Width F bt = Breakload
Value discharged
Sample 1

M3 60kN [kN] Displ. [mm]


10 180
9 160
8 140
7
M3 60kN [kN]




120
Displ. [mm]



6
100
5
80
4
60
3
2 40
1 20
0 0
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
Time [s]




Date: 07/03/2023 Page: 1
