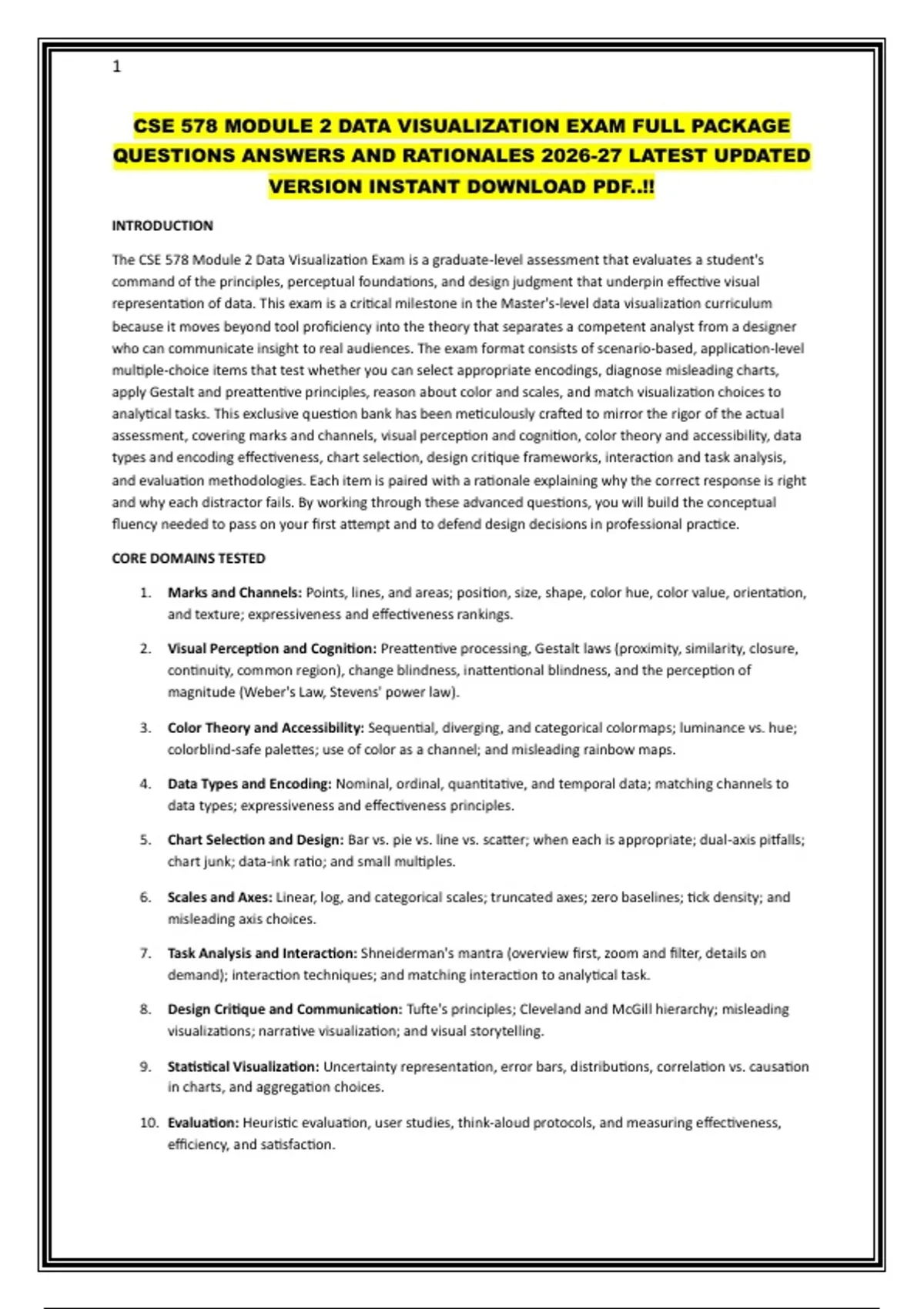

CSE 578 MODULE 2 DATA VISUALIZATION EXAM FULL PACKAGE
QUESTIONS ANSWERS AND RATIONALES 2026-27 LATEST UPDATED
VERSION INSTANT DOWNLOAD PDF..!!
INTRODUCTION
The CSE 578 Module 2 Data Visualization Exam is a graduate-level assessment that evaluates a student's
command of the principles, perceptual foundations, and design judgment that underpin effective visual
representation of data. This exam is a critical milestone in the Master's-level data visualization curriculum
because it moves beyond tool proficiency into the theory that separates a competent analyst from a designer
who can communicate insight to real audiences. The exam format consists of scenario-based, application-level
multiple-choice items that test whether you can select appropriate encodings, diagnose misleading charts,
apply Gestalt and preattentive principles, reason about color and scales, and match visualization choices to
analytical tasks. This exclusive question bank has been meticulously crafted to mirror the rigor of the actual
assessment, covering marks and channels, visual perception and cognition, color theory and accessibility, data
types and encoding effectiveness, chart selection, design critique frameworks, interaction and task analysis,
and evaluation methodologies. Each item is paired with a rationale explaining why the correct response is right
and why each distractor fails. By working through these advanced questions, you will build the conceptual
fluency needed to pass on your first attempt and to defend design decisions in professional practice.
CORE DOMAINS TESTED
1. Marks and Channels: Points, lines, and areas; position, size, shape, color hue, color value, orientation,
and texture; expressiveness and effectiveness rankings.
2. Visual Perception and Cognition: Preattentive processing, Gestalt laws (proximity, similarity, closure,
continuity, common region), change blindness, inattentional blindness, and the perception of
magnitude (Weber's Law, Stevens' power law).
3. Color Theory and Accessibility: Sequential, diverging, and categorical colormaps; luminance vs. hue;
colorblind-safe palettes; use of color as a channel; and misleading rainbow maps.
4. Data Types and Encoding: Nominal, ordinal, quantitative, and temporal data; matching channels to
data types; expressiveness and effectiveness principles.
5. Chart Selection and Design: Bar vs. pie vs. line vs. scatter; when each is appropriate; dual-axis pitfalls;
chart junk; data-ink ratio; and small multiples.
6. Scales and Axes: Linear, log, and categorical scales; truncated axes; zero baselines; tick density; and
misleading axis choices.
7. Task Analysis and Interaction: Shneiderman's mantra (overview first, zoom and filter, details on
demand); interaction techniques; and matching interaction to analytical task.
8. Design Critique and Communication: Tufte's principles; Cleveland and McGill hierarchy; misleading
visualizations; narrative visualization; and visual storytelling.
9. Statistical Visualization: Uncertainty representation, error bars, distributions, correlation vs. causation
in charts, and aggregation choices.
10. Evaluation: Heuristic evaluation, user studies, think-aloud protocols, and measuring effectiveness,
efficiency, and satisfaction.
,2
QUESTIONS 1-200
Q1: A visualization designer must encode a quantitative variable on a
scatterplot. According to Cleveland and McGill's effectiveness
hierarchy, which channel is most accurate for this data type?
A) Color hue
B) Shape
C) Position on a common scale
D) Area
Rationale: The correct answer is C. Position on a common scale is the
most accurate channel for quantitative data because humans judge
positions with low error. Option A is ineffective for quantitative values
and relies on categorical hue distinctions. Option B is categorical and
cannot convey magnitude. Option D is less accurate than position
because area judgments are subject to systematic error.
Q2: A dashboard uses a rainbow colormap to display temperature
values. Which critique is most valid?
A) Rainbow colormaps are not perceptually uniform, creating false
boundaries and misleading comparisons
B) Rainbow colormaps are the most accurate choice for continuous
data
C) Rainbow colormaps are ideal for colorblind users
D) Rainbow colormaps have no known perceptual problems
Rationale: The correct answer is A. Rainbow maps are not
perceptually uniform; equal data steps do not map to equal
perceptual steps, and luminance reversals create phantom
boundaries. Option B is false. Option C is false because rainbow
,3
palettes are especially problematic for colorblind users. Option D is
false.
Q3: A chart encodes the same categorical variable using both color
hue and shape. According to the principle of redundancy, this design
is:
A) Always harmful because it overloads the viewer
B) Often beneficial because redundant encoding improves
accessibility and decoding speed
C) Useless because shape cannot encode categories
D) Required by all visualization standards
Rationale: The correct answer is B. Redundant encoding of the same
variable across multiple channels can improve accessibility (especially
for colorblind users) and speed decoding. Option A is too absolute.
Option C is false because shape can encode categories. Option D is
false because redundancy is not universally mandated.
Q4: Gestalt law explains why viewers perceive a group of evenly
spaced dots as two clusters when a small gap separates them. Which
law is most relevant?
A) Law of closure
B) Law of similarity
C) Law of proximity
D) Law of common fate
Rationale: The correct answer is C. The law of proximity states that
elements close to each other are perceived as grouped. The gap
creates proximity grouping. Option A concerns filling in missing
shapes. Option B concerns grouping by shared attributes. Option D
concerns grouping by shared motion.
, 4
Q5: A bar chart begins its y-axis at 50 instead of zero to emphasize
small differences. Which statement is most accurate?
A) Truncating the axis can exaggerate differences and mislead
viewers
B) Truncated axes are always appropriate for quantitative data
C) Bar charts should never use a y-axis
D) The zero baseline is irrelevant for bar charts
Rationale: The correct answer is A. Bar charts encode magnitude by
length; truncating the axis distorts the length-to-value relationship
and exaggerates differences. Option B is false because truncation
requires justification and can mislead. Option C is false. Option D is
false because the zero baseline is fundamental to bar chart accuracy.
Q6: A data set contains a nominal variable with 20 categories. Which
encoding is most appropriate?
A) Position with ordered categories on a bar chart
B) Continuous color gradient
C) Area of circles
D) A single line chart
Rationale: The correct answer is A. Ordered positions along an axis
with bars or a dot plot allow clear decoding of many categories.
Option B is inappropriate because continuous gradients imply order
and magnitude. Option C makes precise comparison difficult. Option
D is for temporal trends, not categorical comparison.
Q7: Preattentive processing refers to:
A) Rapid, parallel visual processing that occurs before conscious
attention
B) Slow, deliberate analytical reasoning
