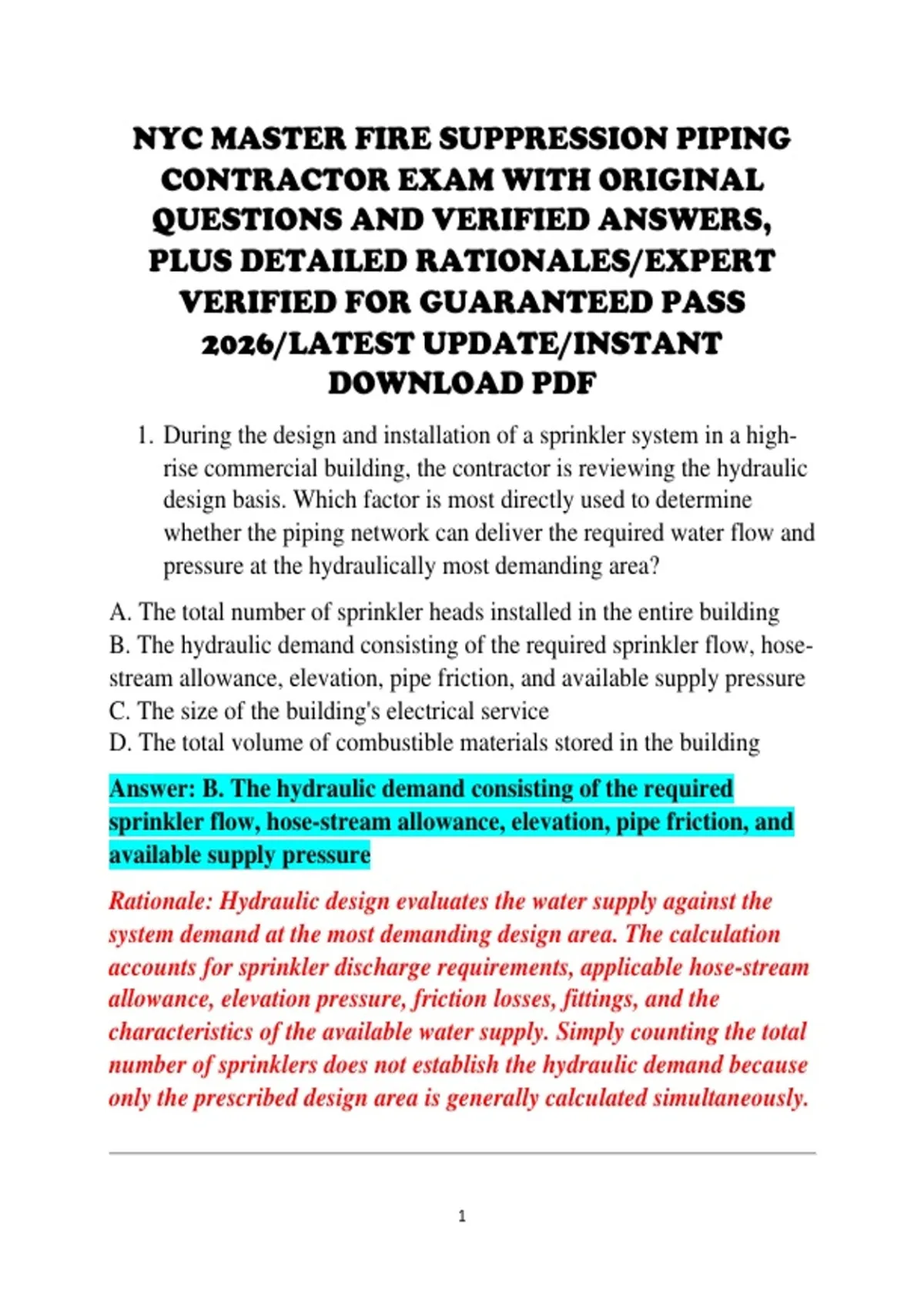

NYC MASTER FIRE SUPPRESSION PIPING
CONTRACTOR EXAM WITH ORIGINAL
QUESTIONS AND VERIFIED ANSWERS,
PLUS DETAILED RATIONALES/EXPERT
VERIFIED FOR GUARANTEED PASS
2026/LATEST UPDATE/INSTANT
DOWNLOAD PDF
1. During the design and installation of a sprinkler system in a high-
rise commercial building, the contractor is reviewing the hydraulic
design basis. Which factor is most directly used to determine
whether the piping network can deliver the required water flow and
pressure at the hydraulically most demanding area?
A. The total number of sprinkler heads installed in the entire building
B. The hydraulic demand consisting of the required sprinkler flow, hose-
stream allowance, elevation, pipe friction, and available supply pressure
C. The size of the building's electrical service
D. The total volume of combustible materials stored in the building
Answer: B. The hydraulic demand consisting of the required
sprinkler flow, hose-stream allowance, elevation, pipe friction, and
available supply pressure
Rationale: Hydraulic design evaluates the water supply against the
system demand at the most demanding design area. The calculation
accounts for sprinkler discharge requirements, applicable hose-stream
allowance, elevation pressure, friction losses, fittings, and the
characteristics of the available water supply. Simply counting the total
number of sprinklers does not establish the hydraulic demand because
only the prescribed design area is generally calculated simultaneously.
1
, 2. A contractor is installing a sprinkler branch line and discovers that
a pipe fitting configuration will produce substantially greater
friction loss than the straight-pipe arrangement originally shown on
the hydraulic calculation. What is the most appropriate concern?
A. The fitting can be ignored because fittings do not affect sprinkler
pressure
B. The additional equivalent length or fitting loss can reduce available
pressure at remote sprinklers and may require recalculation
C. The fitting only affects the electrical fire alarm system
D. The fitting automatically increases the available water supply
Answer: B. The additional equivalent length or fitting loss can
reduce available pressure at remote sprinklers and may require
recalculation
Rationale: Fittings create hydraulic resistance. In a hydraulically
calculated sprinkler system, changes that increase equivalent pipe
length or fitting losses can reduce residual pressure at downstream
sprinklers. A material field change therefore cannot automatically be
assumed hydraulically equivalent to the original design.
3. In a wet-pipe sprinkler system, which component is primarily
responsible for detecting the flow of water resulting from operation
of one or more sprinklers and transmitting an alarm signal through
the appropriate alarm arrangement?
A. Main drain
B. Waterflow alarm device
C. Inspector's test connection only
D. Pressure-reducing valve
Answer: B. Waterflow alarm device
2
,Rationale: A waterflow alarm device, such as a listed waterflow switch
or water-motor-operated alarm arrangement, responds to sustained
water movement caused by sprinkler operation or testing. Its purpose
is to initiate the required waterflow indication/alarm. The main drain
is primarily used for testing and draining, while a pressure-reducing
valve regulates pressure rather than detecting flow.
4. A sprinkler contractor is determining the appropriate system type
for a building where portions of the piping are exposed to
temperatures below freezing. Which system arrangement is
generally intended for areas where water-filled piping would be
subject to freezing conditions?
A. Wet-pipe system throughout
B. Dry-pipe system for the freezing areas
C. Deluge system in every area regardless of hazard
D. Standpipe system without modification
Answer: B. Dry-pipe system for the freezing areas
Rationale: A dry-pipe sprinkler system normally contains pressurized
air or nitrogen in the piping until a sprinkler operates, allowing the
system to protect areas where freezing temperatures could otherwise
cause water-filled piping to freeze. Wet systems are generally used
where temperatures can be maintained above freezing or where listed
antifreeze arrangements are permitted.
5. In a dry-pipe sprinkler system, why is air or nitrogen pressure
maintained in the system piping above the water supply?
A. To prevent the fire pump from starting
B. To hold the dry-pipe valve closed against the water supply until the
system operates
3
, C. To increase the temperature of the sprinkler piping
D. To eliminate the need for waterflow alarms
Answer: B. To hold the dry-pipe valve closed against the water
supply until the system operates
Rationale: The supervisory gas pressure in a dry-pipe system acts on
the dry-pipe valve assembly and keeps the water supply from entering
the system piping under normal conditions. When a sprinkler operates
and system pressure changes sufficiently, the valve arrangement
operates and permits water to enter the piping network.
6. A contractor is installing a fire department connection for a
sprinkler system. What is the primary function of the connection?
A. To permanently supply domestic water to the building
B. To allow the fire department to supplement the sprinkler system with
water from fire apparatus
C. To drain the sprinkler system after every inspection
D. To provide compressed air to dry-pipe piping
Answer: B. To allow the fire department to supplement the
sprinkler system with water from fire apparatus
Rationale: A fire department connection (FDC) provides a means for
the fire department to pump supplemental water into the fire
protection system. Proper arrangement, identification, accessibility,
and compatibility with the protected system are essential so responding
personnel can use the connection effectively.
7. During installation, a contractor notices that a sprinkler head has
been painted by another trade after installation. What is the
principal concern?
4
