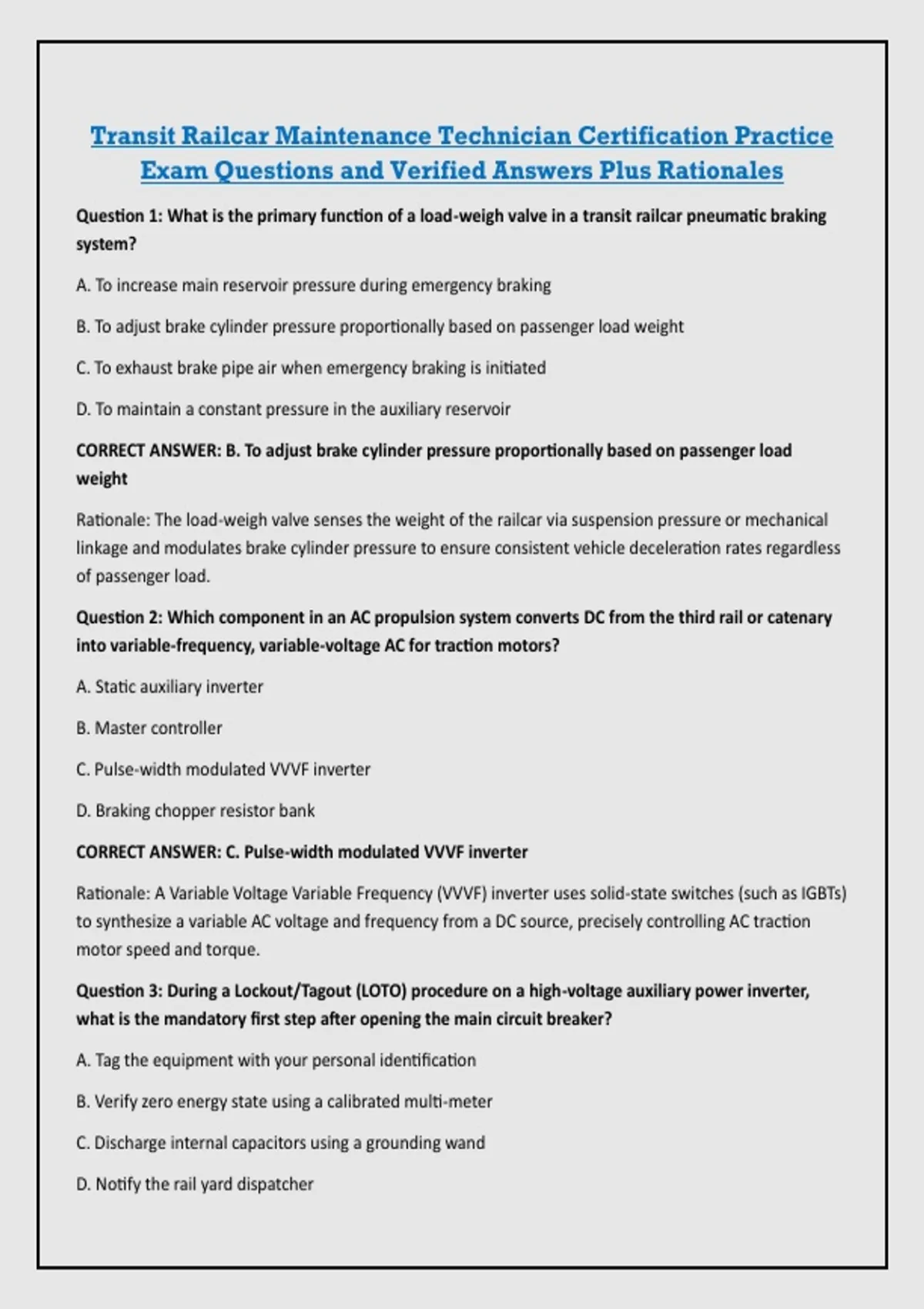

Transit Railcar Maintenance Technician Certification Practice
Exam Questions and Verified Answers Plus Rationales
Question 1: What is the primary function of a load-weigh valve in a transit railcar pneumatic braking
system?
A. To increase main reservoir pressure during emergency braking
B. To adjust brake cylinder pressure proportionally based on passenger load weight
C. To exhaust brake pipe air when emergency braking is initiated
D. To maintain a constant pressure in the auxiliary reservoir
CORRECT ANSWER: B. To adjust brake cylinder pressure proportionally based on passenger load
weight
Rationale: The load-weigh valve senses the weight of the railcar via suspension pressure or mechanical
linkage and modulates brake cylinder pressure to ensure consistent vehicle deceleration rates regardless
of passenger load.
Question 2: Which component in an AC propulsion system converts DC from the third rail or catenary
into variable-frequency, variable-voltage AC for traction motors?
A. Static auxiliary inverter
B. Master controller
C. Pulse-width modulated VVVF inverter
D. Braking chopper resistor bank
CORRECT ANSWER: C. Pulse-width modulated VVVF inverter
Rationale: A Variable Voltage Variable Frequency (VVVF) inverter uses solid-state switches (such as IGBTs)
to synthesize a variable AC voltage and frequency from a DC source, precisely controlling AC traction
motor speed and torque.
Question 3: During a Lockout/Tagout (LOTO) procedure on a high-voltage auxiliary power inverter,
what is the mandatory first step after opening the main circuit breaker?
A. Tag the equipment with your personal identification
B. Verify zero energy state using a calibrated multi-meter
C. Discharge internal capacitors using a grounding wand
D. Notify the rail yard dispatcher
,CORRECT ANSWER: B. Verify zero energy state using a calibrated multi-meter
Rationale: Standard safety protocols dictate that after isolation, verifying the zero energy state (testing
for absence of voltage) is critical before performing maintenance, though capacitor discharge and
tagging are also vital sequential steps.
Question 4: What type of bearing is most commonly used on heavy rail transit car axle journals to
handle both radial and high axial thrust loads?
A. Plain journal bearing
B. Tapered roller bearing assembly
C. Ball thrust bearing
D. Needle roller bearing
CORRECT ANSWER: B. Tapered roller bearing assembly
Rationale: Tapered roller bearings are designed to effectively support both heavy radial loads from the
vehicle weight and significant axial (thrust) loads experienced during cornering and track irregularities.
Question 5: In an electro-pneumatic (EP) braking system, what purpose does the electric control loop
serve compared to straight pneumatic braking?
A. It eliminates the need for mechanical brake shoes
B. It provides simultaneous and instantaneous signal transmission for brake application and release
across all cars
C. It replaces the emergency brake reservoir entirely
D. It powers the compressor motor directly
CORRECT ANSWER: B. It provides simultaneous and instantaneous signal transmission for brake
application and release across all cars
Rationale: While pneumatic pressure waves travel at the speed of sound, electric control signals
propagate nearly instantaneously, resulting in synchronized braking across long train consists and
reduced in-train slack action.
Question 6: Which non-destructive testing (NDT) method is primarily used to detect surface and near-
surface cracks in steel railcar axles and wheelsets?
A. Radiographic testing
B. Magnetic particle inspection
C. Infrared thermography
,D. Eddy current conductivity testing
CORRECT ANSWER: B. Magnetic particle inspection
Rationale: Magnetic particle inspection (MPI) is highly effective for ferromagnetic components like axles
and wheels, revealing surface and slightly sub-surface discontinuities by applying a magnetic field and
iron particles.
Question 7: What is the primary purpose of a brake disc scour valve in a transit railcar friction brake
system?
A. To clean moisture and debris off the brake disc friction surfaces
B. To bleed air from the brake caliper hydraulic lines
C. To measure the rotational speed of the axle
D. To regulate main reservoir air flow
CORRECT ANSWER: A. To clean moisture and debris off the brake disc friction surfaces
Rationale: Scour valves or pads are designed to lightly contact the brake disc during operation to remove
oxide layers, moisture, and brake pad residue, ensuring optimal friction coefficients.
Question 8: When troubleshooting an intermittent door obstruction fault on a plug-type transit sliding
door, which component should be inspected first for mechanical binding or alignment issues?
A. Door control unit microprocessor
B. Guide rollers, tracks, and linkage arms
C. Pneumatic door cylinder internal seals
D. Door motor armature winding
CORRECT ANSWER: B. Guide rollers, tracks, and linkage arms
Rationale: Mechanical binding caused by worn rollers, debris in the floor track, or misaligned linkage
arms is the most frequent cause of door operation faults, exceeding electronic or pneumatic failures.
Question 9: What is the function of a slip-slide protection (SSP) system on a transit railcar during
braking?
A. To prevent wheel lockup and sliding by modulating brake cylinder pressure when wheel deceleration
exceeds safe thresholds
B. To increase train speed automatically on slippery rails
C. To dump all main reservoir air if a skid is detected
, D. To lock the wheels for maximum friction braking
CORRECT ANSWER: A. To prevent wheel lockup and sliding by modulating brake cylinder pressure
when wheel deceleration exceeds safe thresholds
Rationale: SSP systems monitor axle speeds relative to reference train speed; if rapid deceleration or
wheel slip is detected, the system momentarily reduces brake pressure on that specific axle to restore
traction.
Question 10: In an HVAC system utilizing R-407C refrigerant, what is a primary characteristic
technicians must remember when repairing leaks?
A. It is a single-component refrigerant with a constant boiling point
B. It is a zeotropic blend that must be charged in liquid phase to prevent fractionation
C. It requires mineral oil lubrication exclusively
D. It operates at negative gauge pressures under normal conditions
CORRECT ANSWER: B. It is a zeotropic blend that must be charged in liquid phase to prevent
fractionation
Rationale: Zeotropic blends consist of multiple refrigerants with different boiling points. Charging as
vapor causes fractionation (uneven separation of components), altering system performance.
Question 11: Which electrical schematic symbol represents a relay contact that is open when the relay
coil is de-energized?
A. Form A (Normally Open - NO)
B. Form B (Normally Closed - NC)
C. Form C (Changeover / Double Throw)
D. Thermal overload contact
CORRECT ANSWER: A. Form A (Normally Open - NO)
Rationale: A Form A contact is normally open (NO) when the coil has no power and closes only when the
relay coil is energized.
Question 12: What is the purpose of a ground fault detector (GFD) in a high-voltage transit railcar
auxiliary power circuit?
A. To measure total power consumption
B. To detect unintentional electrical leakage paths from live conductors to the vehicle chassis/ground
