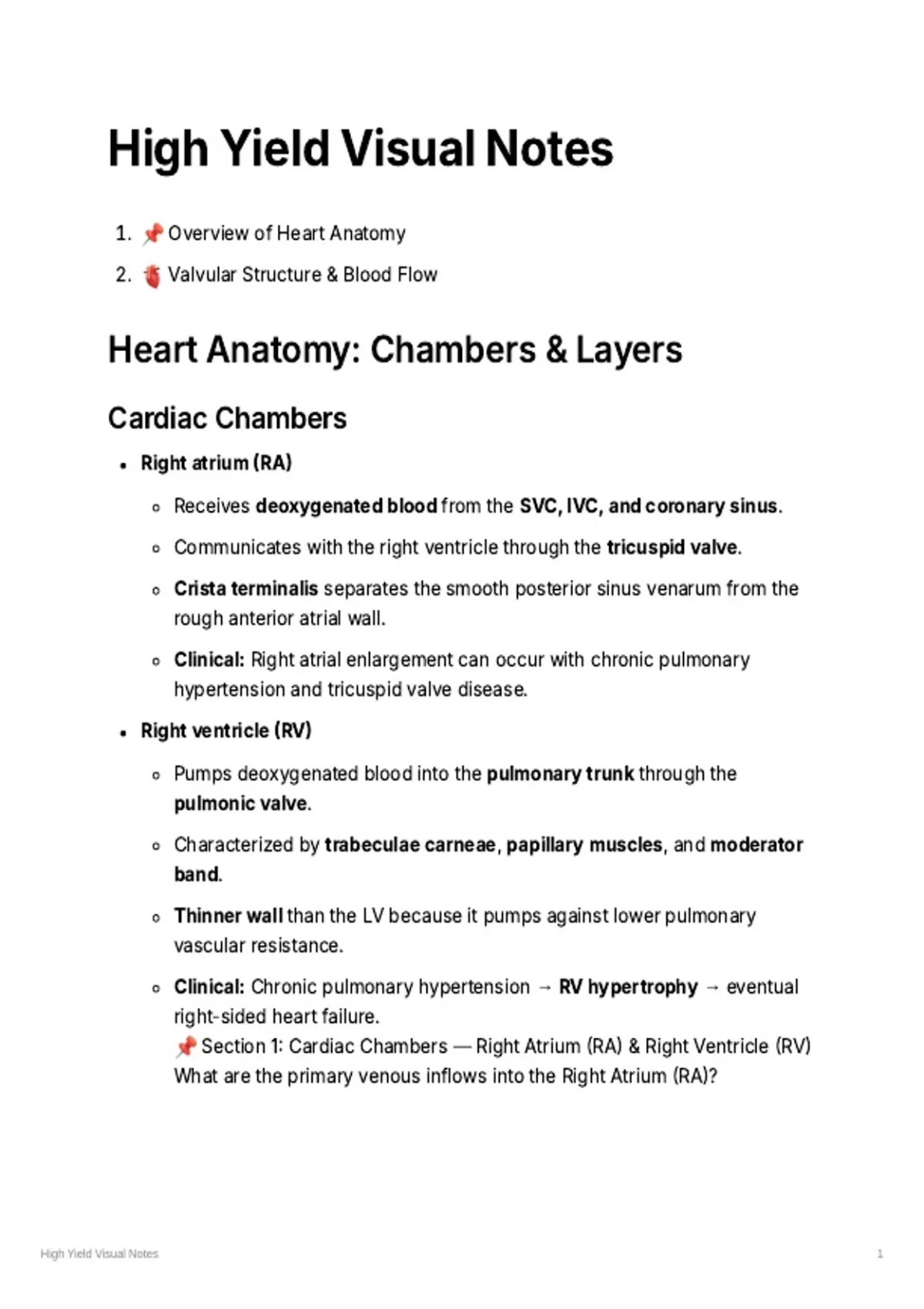

High Yield Visual Notes
1. 📌 Overview of Heart Anatomy
2. 🫀 Valvular Structure & Blood Flow
Heart Anatomy: Chambers & Layers
Cardiac Chambers
Right atrium (RA)
Receives deoxygenated blood from the SVC, IVC, and coronary sinus.
Communicates with the right ventricle through the tricuspid valve.
Crista terminalis separates the smooth posterior sinus venarum from the
rough anterior atrial wall.
Clinical: Right atrial enlargement can occur with chronic pulmonary
hypertension and tricuspid valve disease.
Right ventricle (RV)
Pumps deoxygenated blood into the pulmonary trunk through the
pulmonic valve.
Characterized by trabeculae carneae, papillary muscles, and moderator
band.
Thinner wall than the LV because it pumps against lower pulmonary
vascular resistance.
Clinical: Chronic pulmonary hypertension → RV hypertrophy → eventual
right-sided heart failure.
📌 Section 1: Cardiac Chambers — Right Atrium (RA) & Right Ventricle (RV)
What are the primary venous inflows into the Right Atrium (RA)?
High Yield Visual Notes 1
, • Deoxygenated blood enters the RA via three main structures:
1. Superior Vena Cava (SVC): Drains the upper body.
2. Inferior Vena Cava (IVC): Drains the lower body.
3. Coronary Sinus: Drains the myocardial venous blood.
• USMLE Pearl: The RA communicates directly with the Right Ventricle (RV)
through the Tricuspid Valve.
What is the clinical and anatomical significance of the Crista Terminalis?
Anatomical Landmark: It is a vertical ridge that physically separates:
The smooth posterior part of the RA wall (sinus venarum).
The rough anterior part of the RA wall (containing pectinate
muscles).High-Yield Clinical Connection: Right Atrial Enlargement
(RAE) characteristically occurs due to chronic pulmonary
hypertension or severe tricuspid valve disease
(stenosis/regurgitation), leading to distinct P-pulmonale findings on
an ECG.
What are the definitive structural features and functions of the Right Ventricle
(RV)?
Primary Function: Pumps deoxygenated blood across the Pulmonic Valve
into the Pulmonary Trunk for oxygenation.Definitive Morphological Triad:
1. Trabeculae Carneae: Muscular ridges lining the internal ventricular walls.
2. Papillary Muscles: Structures that anchor the chordae tendineae to
prevent tricuspid valve prolapse.
3. Moderator Band (Septomarginal Trabecula): A crucial muscular band
that crosses the ventricular cavity, carrying the right bundle branch of the
cardiac conduction system directly to the anterior papillary muscle.
Why is the wall of the Right Ventricle (RV) significantly thinner than the Left
Ventricle (LV)?
High Yield Visual Notes 2
, Pressure Dynamics: The RV has a thinner muscular wall because it pumps
blood into the low-pressure pulmonary circulation, facing lower pulmonary
vascular resistance (PVR) compared to the high systemic vascular
resistance (SVR) faced by the LV. USMLE Pearl: Due to this
thin wall, the RV is highly compliant but very sensitive to sudden increases
in afterload (like a massive Pulmonary Embolism).
What is the sequence of clinical progression from chronic pulmonary
hypertension in the RV?
• Pathological Sequence: Chronic pulmonary hypertension → RV
Hypertrophy (compensatory thickening of the thin wall) → eventual Right-
sided Heart Failure (Cor Pulmonale).
• High-Yield Signs: Look for signs of systemic venous congestion like
Jugular Venous Distension (JVD), hepatomegaly, and dependent pitting
edema.
Left Ventricle
Pumps oxygenated blood through the aortic valve → aorta → systemic
circulation.
Has the thickest myocardium because it generates the highest pressures.
Contains two papillary muscles (Anterolateral & Posteromedial) attached to
mitral valve chordae tendineae.
Clinical: Chronic systemic hypertension or aortic stenosis → concentric
LV hypertrophy.
💡 High-Yield Fact: Posteromedial papillary muscle has a single blood
supply (PDA), making it highly susceptible to rupture during a myocardial
infarction (MI), leading to acute mitral regurgitation .
High-Yield LV Hypertrophy
Pressure overload → concentric hypertrophy
High Yield Visual Notes 3
, ↑ Sarcomeres in parallel
↑ Wall thickness
↓ LV chamber compliance
Can cause diastolic dysfunction
Classic causes:
Chronic hypertension
Aortic stenosis
Contrast:
Volume overload → eccentric hypertrophy
Sarcomeres added in series
↑ Chamber diameter
USMLE pearl: Thick ventricular walls + impaired relaxation = think diastolic
dysfunction from pressure overload.
What are the primary structural characteristics and hemodynamic functions of the
Left Ventricle (LV)?
• Primary Function: Pumps oxygenated blood through the Aortic Valve into
the Aorta to drive systemic circulation.
• Morphological Distinctions:
◦ Thickest Myocardium: Has the thickest muscular wall of all chambers
because it must generate the highest pressures to overcome systemic vascular
resistance (SVR).
◦ Valvular Anchorage: Contains two robust papillary muscles attached
directly to the chordae tendineae of the Mitral (Bicuspid) Valve to prevent
regurgitation.
(Anterolateral & Posteromedial. Note: Posteromedial has a single blood supply
from the PDA, making it highly vulnerable to ischemic rupture during an MI) .
High Yield Visual Notes 4
