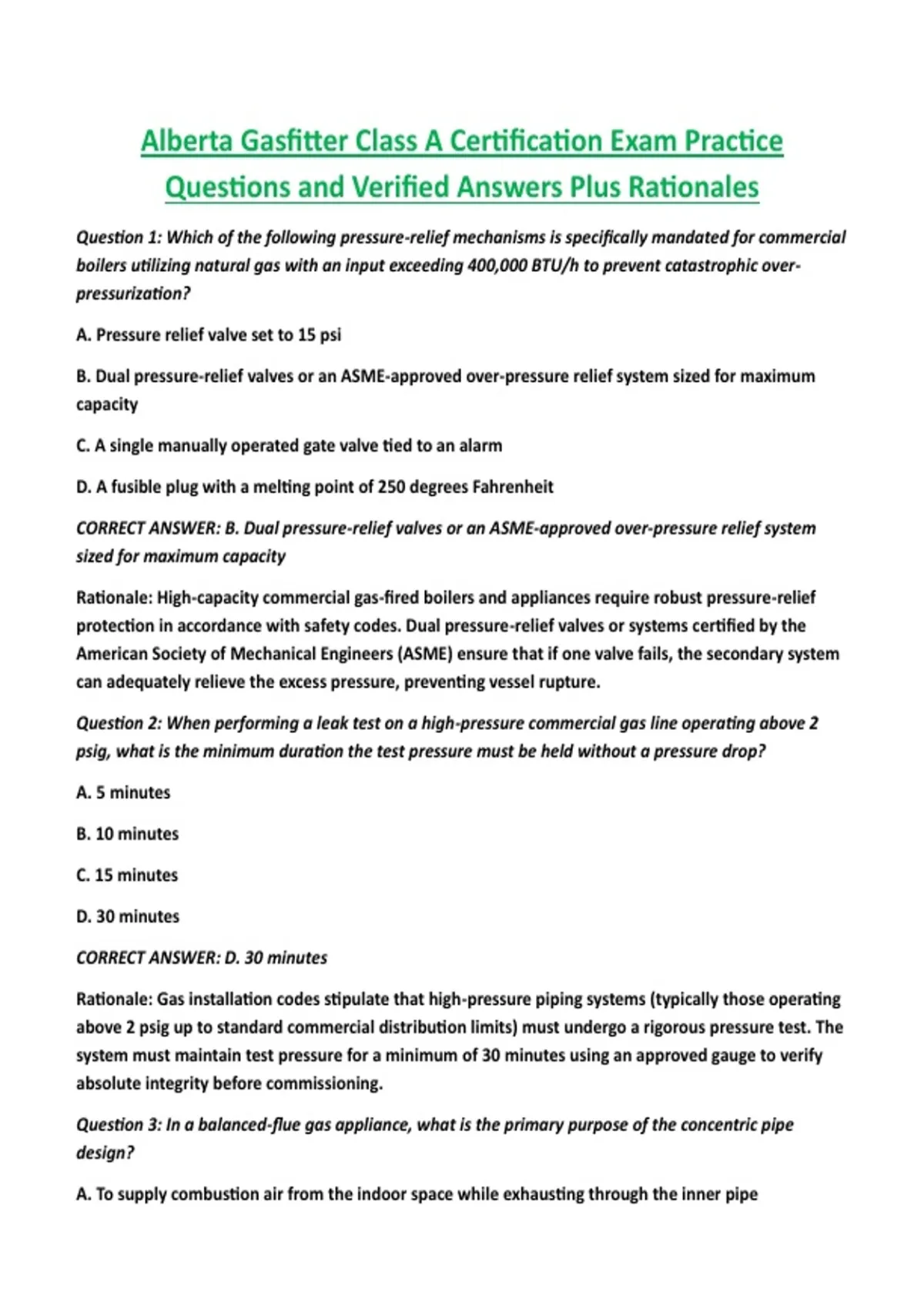

Alberta Gasfitter Class A Certification Exam Practice
Questions and Verified Answers Plus Rationales
Question 1: Which of the following pressure-relief mechanisms is specifically mandated for commercial
boilers utilizing natural gas with an input exceeding 400,000 BTU/h to prevent catastrophic over-
pressurization?
A. Pressure relief valve set to 15 psi
B. Dual pressure-relief valves or an ASME-approved over-pressure relief system sized for maximum
capacity
C. A single manually operated gate valve tied to an alarm
D. A fusible plug with a melting point of 250 degrees Fahrenheit
CORRECT ANSWER: B. Dual pressure-relief valves or an ASME-approved over-pressure relief system
sized for maximum capacity
Rationale: High-capacity commercial gas-fired boilers and appliances require robust pressure-relief
protection in accordance with safety codes. Dual pressure-relief valves or systems certified by the
American Society of Mechanical Engineers (ASME) ensure that if one valve fails, the secondary system
can adequately relieve the excess pressure, preventing vessel rupture.
Question 2: When performing a leak test on a high-pressure commercial gas line operating above 2
psig, what is the minimum duration the test pressure must be held without a pressure drop?
A. 5 minutes
B. 10 minutes
C. 15 minutes
D. 30 minutes
CORRECT ANSWER: D. 30 minutes
Rationale: Gas installation codes stipulate that high-pressure piping systems (typically those operating
above 2 psig up to standard commercial distribution limits) must undergo a rigorous pressure test. The
system must maintain test pressure for a minimum of 30 minutes using an approved gauge to verify
absolute integrity before commissioning.
Question 3: In a balanced-flue gas appliance, what is the primary purpose of the concentric pipe
design?
A. To supply combustion air from the indoor space while exhausting through the inner pipe
,B. To draw combustion air from outdoors through the outer pipe while exhausting flue gases through
the inner pipe
C. To mix fuel gas and air prior to entering the burner assembly
D. To provide secondary structural support for the appliance chassis
CORRECT ANSWER: B. To draw combustion air from outdoors through the outer pipe while exhausting
flue gases through the inner pipe
Rationale: Balanced-flue (direct-vent) appliances use a concentric pipe configuration where the outer
annular space brings in fresh air from the outside, and the inner pipe expels combustion products. This
completely isolates the combustion process from the indoor conditioned air, enhancing safety and
efficiency.
Question 4: What is the maximum allowable operating pressure for a standard low-pressure natural
gas distribution system inside a commercial building unless specifically approved?
A. 0.5 psig (14 inches water column)
B. 2.0 psig
C. 5.0 psig
D. 10.0 psig
CORRECT ANSWER: A. 0.5 psig (14 inches water column)
Rationale: Standard interior building piping for low-pressure natural gas is generally restricted to a
maximum operating pressure of 0.5 psig (equivalent to 14 inches water column) to minimize hazards
associated with residential and standard commercial utilization equipment. Higher pressures require
special approval and localized regulation.
Question 5: Which electronic flame-safeguard component is utilized to verify the presence of a pilot
flame before the main burner gas valve is permitted to open?
A. Thermal expansion switch
B. Flame rectification rod or ultraviolet (UV) scanner
C. Barometric damper control
D. Manometric pressure transducer
CORRECT ANSWER: B. Flame rectification rod or ultraviolet (UV) scanner
Rationale: Flame safeguard controls rely on sensors such as flame rectification rods (which detect
current flow through a flamed ionized gas path) or UV scanners (for gas/oil burners) to confirm
,ignition. If a flame is not sensed, the system safely cuts power to the safety shut-off valves to prevent
unburned fuel accumulation.
Question 6: When sizing a Category IV stainless steel vent pipe for a condensing commercial boiler,
what critical installation factor must be accounted for regarding the condensate?
A. The vent must be installed level to allow pooling
B. The vent must maintain a continuous downward slope toward the boiler or an approved drain at a
rate of at least 1/4 inch per foot
C. The vent must slope upward away from the appliance at 1 inch per foot
D. Condensate drainage is handled exclusively by evaporation within the stack
CORRECT ANSWER: B. The vent must maintain a continuous downward slope toward the boiler or an
approved drain at a rate of at least 1/4 inch per foot
Rationale: Category IV appliances produce acidic condensate within the vent system. To prevent
pooling, freezing, or restriction of flue gases, the vent piping must be pitched downward toward the
appliance condensate drain or a dedicated trap at a minimum slope of 1/4 inch per foot.
Question 7: According to gas installation codes, what type of thread compound (pipe dope) must be
applied to threaded metallic gas piping joints?
A. Water-soluble general-purpose paste
B. Compounds specifically resistant to the action of liquefied petroleum gases or natural gas
C. Standard household silicone sealant
D. Petroleum-based lubricants lacking chemical resistance ratings
CORRECT ANSWER: B. Compounds specifically resistant to the action of liquefied petroleum gases or
natural gas
Rationale: Thread joint compounds used on gas lines must be chemically formulated to resist
degradation by natural gas, propane, and butane. Using non-rated sealants can lead to joint
dissolution, cracking, and dangerous gas leaks over time.
Question 8: What is the primary function of a high-limit temperature control switch installed on a
commercial indirect-fired water heater?
A. To regulate daily water temperature setpoints for building occupants
B. To shut off the burner if water temperature exceeds safe operating thresholds, preventing boiling
and vessel damage
, C. To increase gas flow rate during high-demand morning hours
D. To activate the circulation pump when storage tank temperature drops
CORRECT ANSWER: B. To shut off the burner if water temperature exceeds safe operating thresholds,
preventing boiling and vessel damage
Rationale: A high-limit control acts as a crucial safety device independent of the normal operating
thermostat. It interrupts the gas supply if the water temperature surpasses safe limits, preventing
steam flashing, thermal shock, and potential tank rupture.
Question 9: Which gas burner type utilizes mechanical means, such as a blower or fan, to supply air for
combustion at higher pressure, allowing for higher input ratings and greater resistance to draft
variations?
A. Atmospheric burner
B. Natural draft burner
C. Power burner
D. Luminous wall burner
CORRECT ANSWER: C. Power burner
Rationale: Power burners incorporate an integral motor-driven fan or blower that forces combustion
air into the burner head under positive pressure. This design ensures precise air-fuel mixing,
overcomes high combustion chamber resistance, and is independent of natural chimney draft.
Question 10: When purging a newly installed commercial gas piping system with fuel gas, what safety
precaution is mandatory before introducing the gas to the atmosphere or a safe disposal point?
A. The area must be completely sealed with no ventilation to trap gas
B. The system must be purged directly into an unventilated mechanical room
C. Purging must be discharged outdoors to a safe location away from ignition sources, or through a
dilution procedure utilizing an inert gas buffer
D. Ignition sources must be brought near the purge point to burn off air instantly
CORRECT ANSWER: C. Purging must be discharged outdoors to a safe location away from ignition
sources, or through a dilution procedure utilizing an inert gas buffer
Rationale: Purging removes air from gas pipes or gas from pipes to prevent explosive mixtures.
Discharging must occur outdoors in a controlled manner away from building openings and ignition
sources, or utilize an inert gas (like nitrogen) intermediary purge to ensure safety.
