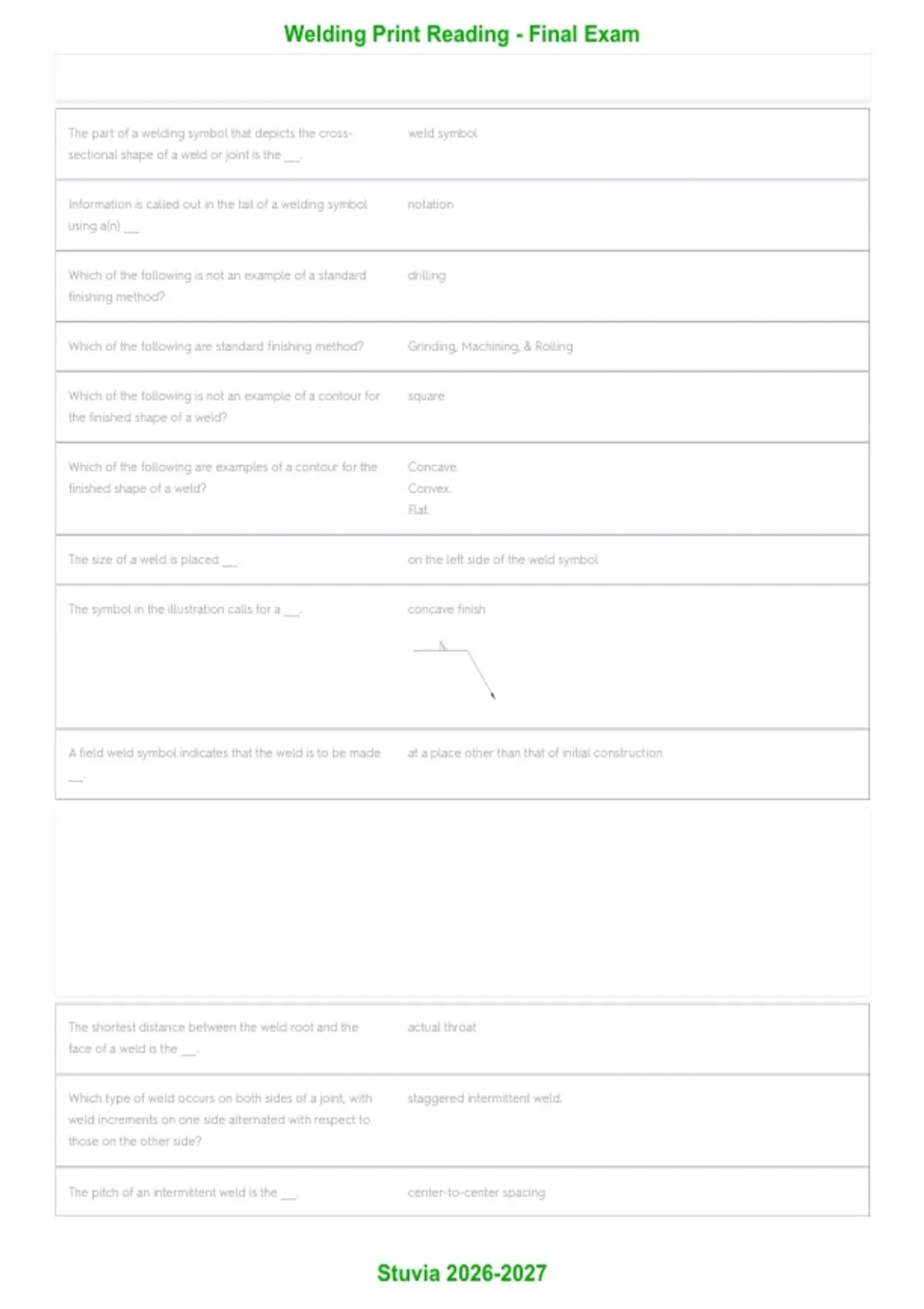

Welding Print Reading - Final Exam
The part of a welding symbol that depicts the cross- weld symbol
sectional shape of a weld or joint is the ____.
Information is called out in the tail of a welding symbol notation
using a(n) ____.
Which of the following is not an example of a standard drilling
finishing method?
Which of the following are standard finishing method? Grinding, Machining, & Rolling
Which of the following is not an example of a contour for square
the finished shape of a weld?
Which of the following are examples of a contour for the Concave.
finished shape of a weld? Convex.
Flat.
The size of a weld is placed ____. on the left side of the weld symbol
The symbol in the illustration calls for a ____. concave finish
A field weld symbol indicates that the weld is to be made at a place other than that of initial construction
____.
The shortest distance between the weld root and the actual throat
face of a weld is the ____.
Which type of weld occurs on both sides of a joint, with staggered intermittent weld.
weld increments on one side alternated with respect to
those on the other side?
The pitch of an intermittent weld is the ____. center-to-center spacing
