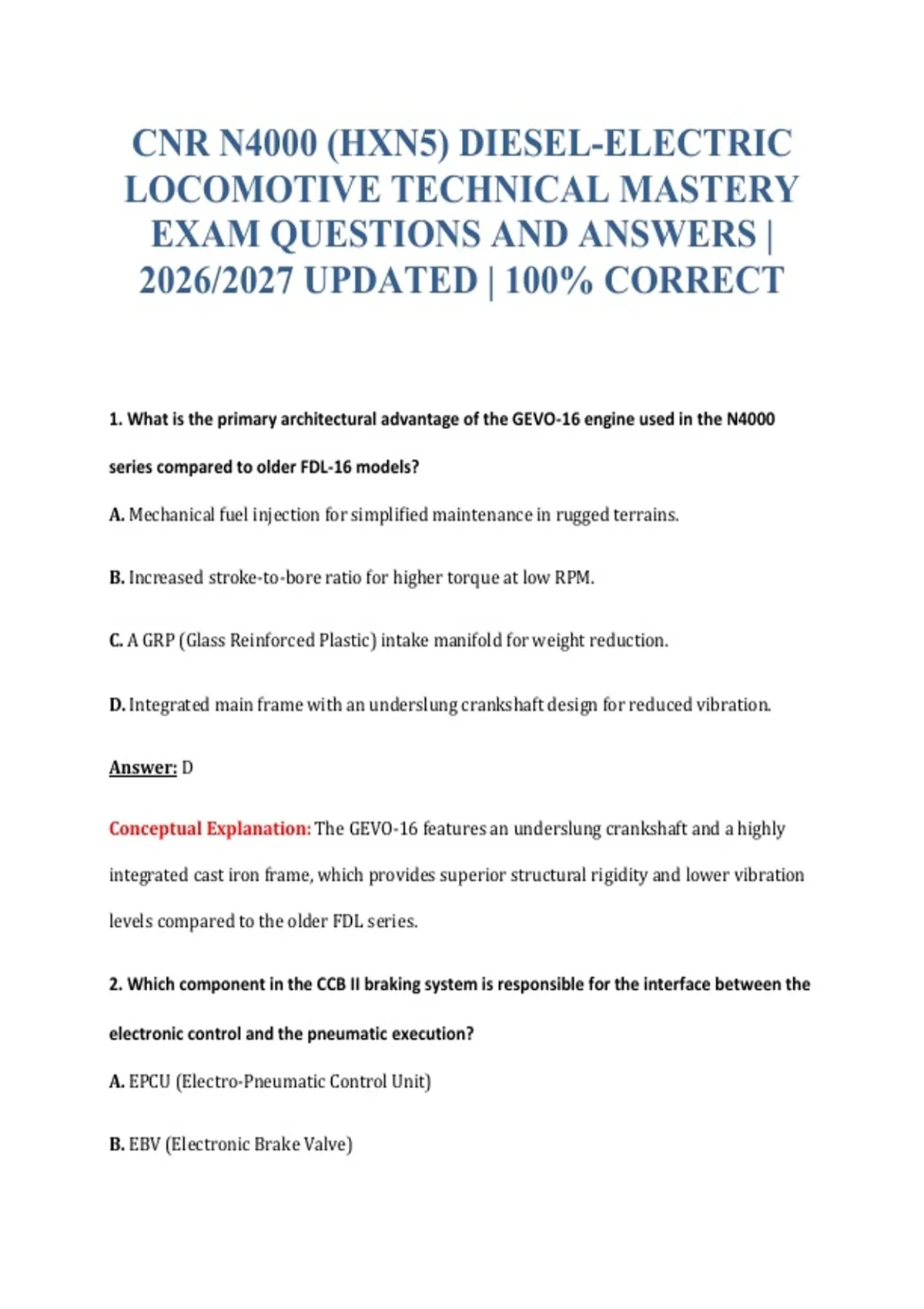

CNR N4000 (HXN5) DIESEL-ELECTRIC
LOCOMOTIVE TECHNICAL MASTERY
EXAM QUESTIONS AND ANSWERS |
2026/2027 UPDATED | 100% CORRECT
1. What is the primary architectural advantage of the GEVO-16 engine used in the N4000
series compared to older FDL-16 models?
A. Mechanical fuel injection for simplified maintenance in rugged terrains.
B. Increased stroke-to-bore ratio for higher torque at low RPM.
C. A GRP (Glass Reinforced Plastic) intake manifold for weight reduction.
D. Integrated main frame with an underslung crankshaft design for reduced vibration.
Answer: D
Conceptual Explanation: The GEVO-16 features an underslung crankshaft and a highly
integrated cast iron frame, which provides superior structural rigidity and lower vibration
levels compared to the older FDL series.
2. Which component in the CCB II braking system is responsible for the interface between the
electronic control and the pneumatic execution?
A. EPCU (Electro-Pneumatic Control Unit)
B. EBV (Electronic Brake Valve)
,C. IPM (Integrated Processor Module)
D. RIM (Relay Interface Module)
Answer: A
Conceptual Explanation: The EPCU (Electro-Pneumatic Control Unit) acts as the heart of
the CCB II system, converting electronic signals from the brake valve into precise
pneumatic pressure changes.
3. The N4000 locomotive uses AC traction motors. What is the standard configuration for the
inverter-to-motor control?
A. One inverter per bogie (Bogie Control)
B. One inverter per axle (Individual Axle Control)
C. Two inverters for all six motors in a series-parallel arrangement
D. One main rectifier controlling all motor speeds via frequency modulation
Answer: B
Conceptual Explanation: The N4000 (HXN5) utilizes individual axle control, where each
of the six traction motors is driven by its own dedicated IGBT inverter, allowing for
maximum adhesion control.
4. In the event of a ‘Ground Fault’ in the traction circuit, what is the first automated action
taken by the locomotive control system?
A. Immediate engine shutdown to prevent alternator damage.
, B. Activation of the emergency fire suppression system.
C. Automatic bypassing of the faulted motor while maintaining full power on others.
D. Reduction of excitation to the main alternator and opening of traction contactors.
Answer: D
Conceptual Explanation: To protect the electrical insulation and components, the system
detects ground leakage, reduces alternator excitation, and opens contactors to isolate the
circuit.
5. What is the function of the ‘Split Cooling System’ in the N4000’s GEVO engine?
A. Separating the cooling of the turbochargers from the engine block.
B. Using separate radiators for the dynamic braking grids and the engine coolant.
C. Differentiating between the high-temperature circuit for the engine and the low-
temperature circuit for the air intercooler.
D. Cooling the transmission oil independently from the engine oil.
Answer: C
Conceptual Explanation: The split cooling system uses a high-temperature (HT) circuit
for the engine block and a low-temperature (LT) circuit specifically for the intercooler to
maximize air density for combustion.
6. During dynamic braking, how is the energy generated by the traction motors dissipated?
A. Stored in onboard lithium-ion battery banks.
LOCOMOTIVE TECHNICAL MASTERY
EXAM QUESTIONS AND ANSWERS |
2026/2027 UPDATED | 100% CORRECT
1. What is the primary architectural advantage of the GEVO-16 engine used in the N4000
series compared to older FDL-16 models?
A. Mechanical fuel injection for simplified maintenance in rugged terrains.
B. Increased stroke-to-bore ratio for higher torque at low RPM.
C. A GRP (Glass Reinforced Plastic) intake manifold for weight reduction.
D. Integrated main frame with an underslung crankshaft design for reduced vibration.
Answer: D
Conceptual Explanation: The GEVO-16 features an underslung crankshaft and a highly
integrated cast iron frame, which provides superior structural rigidity and lower vibration
levels compared to the older FDL series.
2. Which component in the CCB II braking system is responsible for the interface between the
electronic control and the pneumatic execution?
A. EPCU (Electro-Pneumatic Control Unit)
B. EBV (Electronic Brake Valve)
,C. IPM (Integrated Processor Module)
D. RIM (Relay Interface Module)
Answer: A
Conceptual Explanation: The EPCU (Electro-Pneumatic Control Unit) acts as the heart of
the CCB II system, converting electronic signals from the brake valve into precise
pneumatic pressure changes.
3. The N4000 locomotive uses AC traction motors. What is the standard configuration for the
inverter-to-motor control?
A. One inverter per bogie (Bogie Control)
B. One inverter per axle (Individual Axle Control)
C. Two inverters for all six motors in a series-parallel arrangement
D. One main rectifier controlling all motor speeds via frequency modulation
Answer: B
Conceptual Explanation: The N4000 (HXN5) utilizes individual axle control, where each
of the six traction motors is driven by its own dedicated IGBT inverter, allowing for
maximum adhesion control.
4. In the event of a ‘Ground Fault’ in the traction circuit, what is the first automated action
taken by the locomotive control system?
A. Immediate engine shutdown to prevent alternator damage.
, B. Activation of the emergency fire suppression system.
C. Automatic bypassing of the faulted motor while maintaining full power on others.
D. Reduction of excitation to the main alternator and opening of traction contactors.
Answer: D
Conceptual Explanation: To protect the electrical insulation and components, the system
detects ground leakage, reduces alternator excitation, and opens contactors to isolate the
circuit.
5. What is the function of the ‘Split Cooling System’ in the N4000’s GEVO engine?
A. Separating the cooling of the turbochargers from the engine block.
B. Using separate radiators for the dynamic braking grids and the engine coolant.
C. Differentiating between the high-temperature circuit for the engine and the low-
temperature circuit for the air intercooler.
D. Cooling the transmission oil independently from the engine oil.
Answer: C
Conceptual Explanation: The split cooling system uses a high-temperature (HT) circuit
for the engine block and a low-temperature (LT) circuit specifically for the intercooler to
maximize air density for combustion.
6. During dynamic braking, how is the energy generated by the traction motors dissipated?
A. Stored in onboard lithium-ion battery banks.
