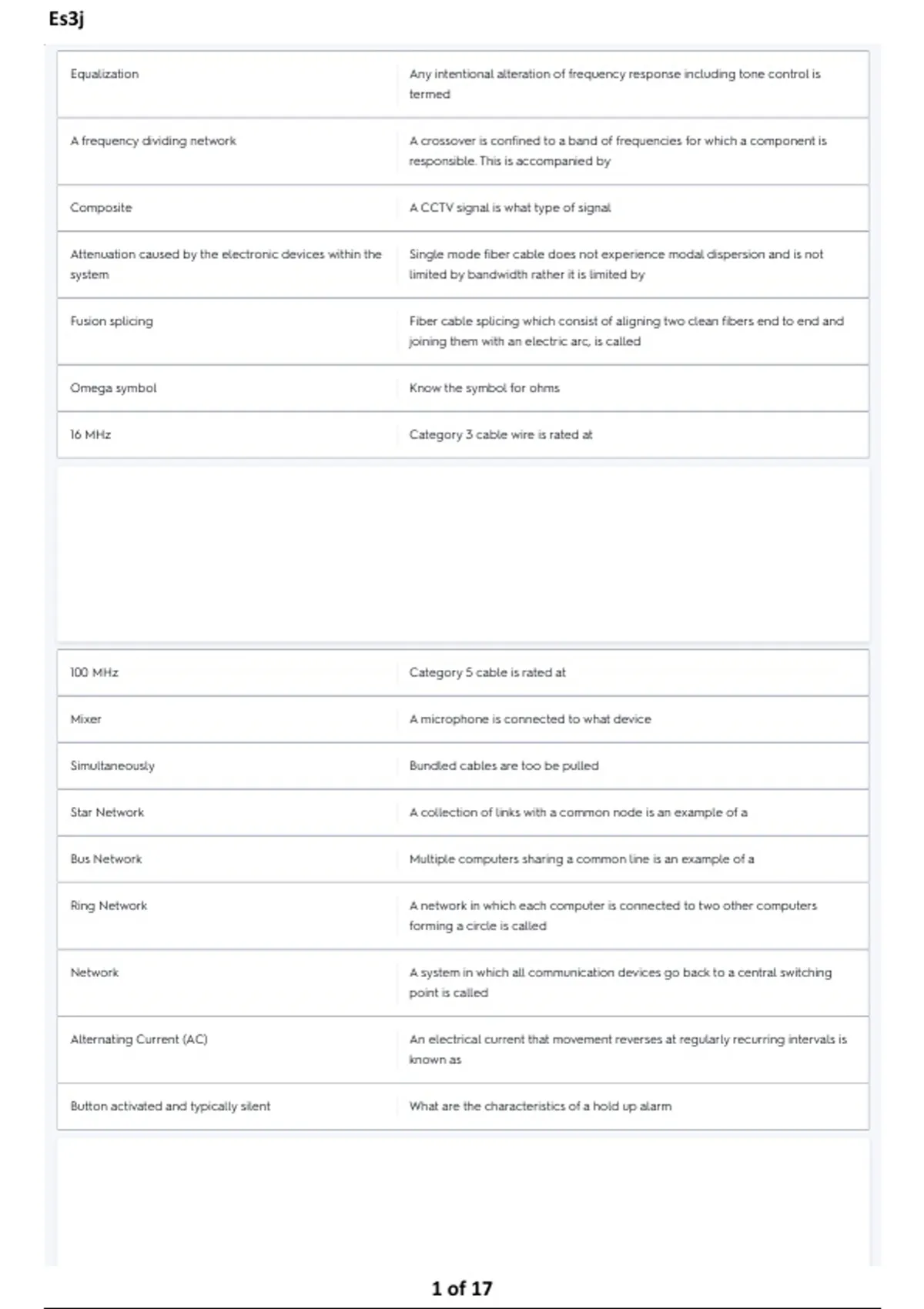

Es3j
Equalization Any intentional alteration of frequency response including tone control is
termed
A frequency dividing network A crossover is confined to a band of frequencies for which a component is
responsible. This is accompanied by
Composite A CCTV signal is what type of signal
Attenuation caused by the electronic devices within the Single mode fiber cable does not experience modal dispersion and is not
system limited by bandwidth rather it is limited by
Fusion splicing Fiber cable splicing which consist of aligning two clean fibers end to end and
joining them with an electric arc, is called
Omega symbol Know the symbol for ohms
16 MHz Category 3 cable wire is rated at
100 MHz Category 5 cable is rated at
Mixer A microphone is connected to what device
Simultaneously Bundled cables are too be pulled
Star Network A collection of links with a common node is an example of a
Bus Network Multiple computers sharing a common line is an example of a
Ring Network A network in which each computer is connected to two other computers
forming a circle is called
Network A system in which all communication devices go back to a central switching
point is called
Alternating Current (AC) An electrical current that movement reverses at regularly recurring intervals is
known as
Button activated and typically silent What are the characteristics of a hold up alarm
1 of 17
,Es3j
Tree and Branch CATV commonly uses the following network configuration
Remove the water in the soil Which of the following would provide the least effective ground
Sat in On a satellite receiver what sends the polarized voltage back to the LNB
12 Volts In a 12 volt system what voltage should be read across a closed switch when
there is a 6k Ohm EOL resistor
A balance to unbalanced transform What is a balun
A double beam requires more installation What is the advantage of a single ended beam detector vs. a double ended
beam detector
Air turbulence causes false alarms What is the disadvantage to having an outdoor intrusion detector
10 years What is considered to be the service life of a smoke detector
Follow manufactures instructions What is the proper method for testing a smoke alarm in a two family dwelling
Bad switch A 12 volt circuit with a 21 ohm resistor is being tested with the switch closed. The
reading shows 1.2 volts. What is the problem
Add a bonding jumper A coax cable that is designed for 60 volts is reading 63 volts. How can the
situation be remedied
Condenser or ribbon microphone What type of microphone provides the least amount of transient distortion
Moving coil What type of microphone provides the most transient distortion
Test for resistance How would someone check a coax cable to make sure it's good
24 AWG Most telephone cable is comprised of solid _________ gauge copper wire
Fixed coil and a movable iron vane What are the components of a magnetic vane meter
Coax What is a RG-8V cable.
GFI/GFCI Which of the following is not considered suitable to be plugged into a security
alarm transformer. What do you not want to hook a security system up to.
2 of 17
, Es3j
15 mins On a voice EVAC system what duration of time should the system be tested
under secondary power
dB is 100th of a bell is false. It is 1/10th of a bell All of the following are true except
Run directly on the ceiling grid Communication cables are being run above a drop ceiling. All of the following
methods are acceptable for installation of the cable except
19-23" wide Which of the following is true of an equipment rack
250 MHz Category 6 cable is rated up to _______ MHz
Gain A combined increase in signal strength of intensity and voltage is known as
Bus Network A network in which a computer is connected to two other computers is called
Composite What is an analog video signal that contains all of the components necessary
to construct a monochrome and color picture
Two parallel conductors separated by a small distance Which of the following best describes a twin lead antenna wire
using the insulator
Other voltage sources must be disconnected What must be done first when testing an EOL protective loop with an
ohmmeter
UF What type of wire is to be used for common direct burial
Accessible Cable is being installed in an area that is above a suspended ceiling that
contains completely enclosed air ducts. What term or word identifies this
location
Wooden plugs According to the NEC, electrical equipment may NOT be mounted on
concrete, cinder block, or brick walls with
3 1/2 feet What is the minimum required height for a proprietary manual pull fire alarm
Grounding connection What is the function of a green wire in a manufactured home
50 feet Heat detectors used within a family unit must be listed or approved for not less
than
NFPA 72 What is the National Fire Protection Association code publication that refers to
household fire fighting equipment
Drawings that show the interconnection of tandem The supplier or contractor that installs house fire warning is required to provide
connected detectors the building owner with all the following materials EXCEPT
3 of 17
